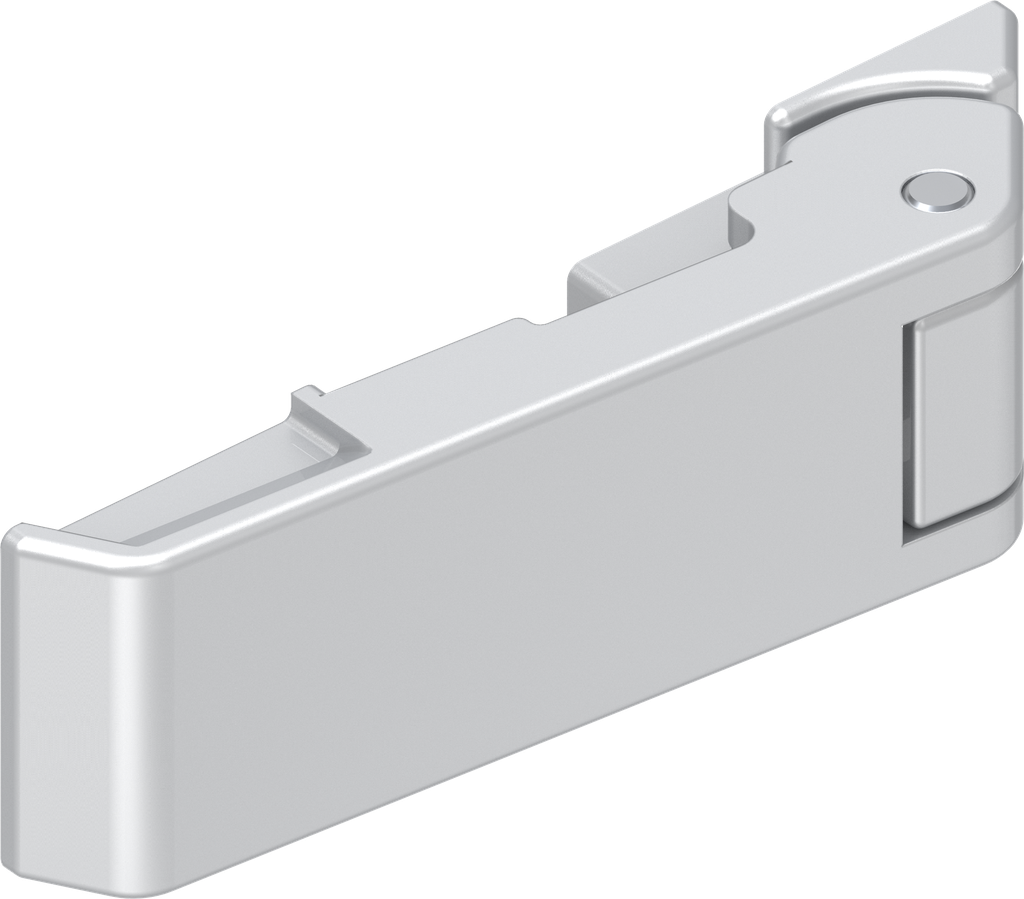

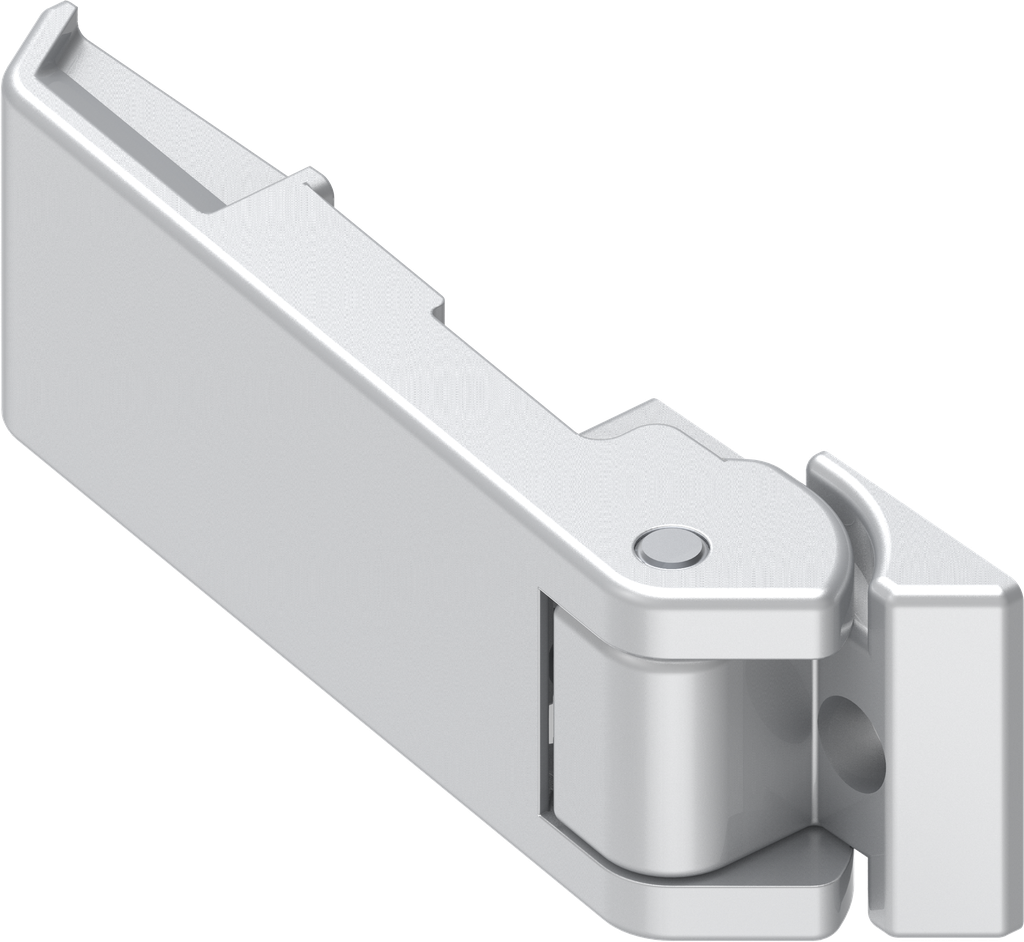

Hinge, Zinc die white aluminium powder-coated; 3060-U380-BK

https://www.emka.com/products/3060-u380-bk https://www.emka.com/web/image/product.template/65796/image_1920?unique=ad855f9

    This combination does not exist.

    Single cabinets In-line cabinets with single door Left Right
    Contact Us
    Internal Reference: 3060-U380-BK
    Product Type: Hinge
    Program: 3060
    Surface: white aluminium
    Material of the module : Zinc die
    Surface of the module: white aluminium powder-coated
    Door return variable: Yes
    Type of attachment to the frame: screw-on
    Type of fastening on the door: screw-on
    Hole pattern required in the door: Bore holes in the door
    Max. opening angle due to installation: Yes
    Cabinet type : Single cabinets,In-line cabinets with single door
    Door position: concealed
    Door Version : Left,Right
    No Specifications
    No Matching Products

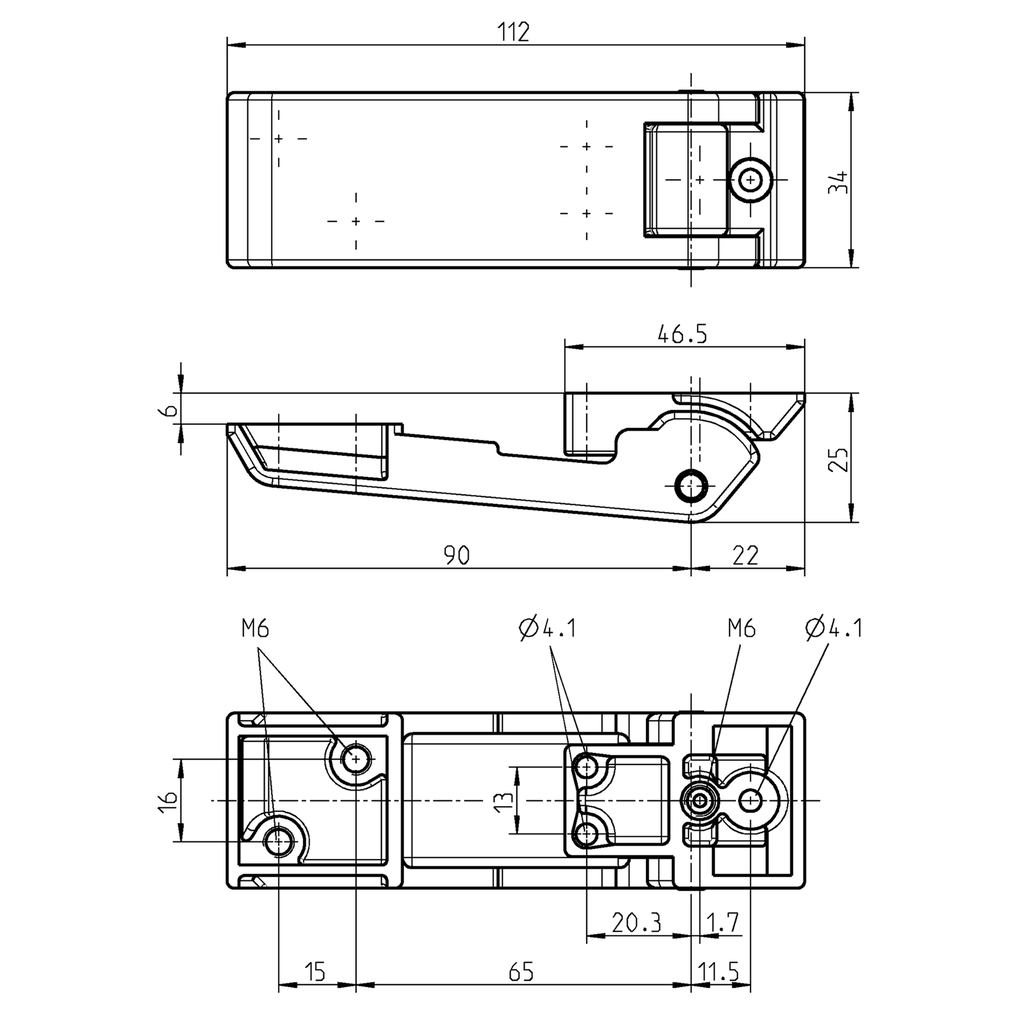

    Here you can find the product data sheets and CAD files of this product
