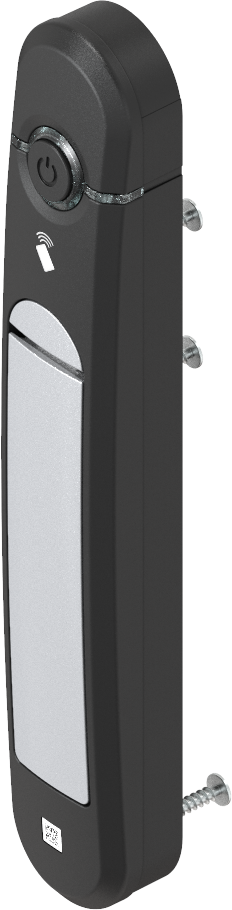

Swinghandle Agent E Stand-Alone with RFID card reader 13.56 MHz, Zinc die white aluminium powder-coated and polyamide GF black
Swinghandle Agent E Stand-Alone with RFID card reader 13.56 MHz, Zinc die white aluminium powder-coated and polyamide GF black
Hinge, Zinc die white aluminium powder-coated
Hinge, Zinc die white aluminium powder-coated

Swinghandle Agent E Stand-Alone with RFID card reader 13.56 MHz, Zinc die white aluminium powder-coated and polyamide GF black; 3000-U910-28

https://www.emka.com/products/3000-u910-28 https://www.emka.com/web/image/product.template/65789/image_1920?unique=ad855f9

for furniture doors


    This combination does not exist.

    Inside the sealing Left Right


    Product information:

    Features

  • Battery-operated handle with integrated RFID reader
  • Authentication by 125 kHz or 13.56 MHz RFID cards
  • Extremely energy-efficient battery operation (service life of battery min. 3 years)
  • Configuration via USB port with Agent E configuration software (card administration, time profiles, reading out event logs)
  • All handles have a connection option for one door contact
  • Data store for 2,000 events
  • Emergency power function and emergency opening via USB port
  • The installation in cabinets of different manufacturers is solved with various adapters. On request
  • 1 = Required for door contact

    Key features:

    Agent E RFID Stand-alone
    This version consists of a battery-operated Agent E handle with
    integrated card reader for 125 kHz or 13.56 MHz RFID cards.
    By scanning an authorised RFID card, the handle will open.
    Easy configuration via software.
    This handle does not require any external wiring.

    Max. 128 RFID cards per handle.
    Card management via USB using software tool.

    Internal Reference: 3000-U910-28
    Product Type: Swinghandle, Lifthandle
    Program: 3000
    Material of the module : Zinc die white aluminium powder-coated and polyamide GF
    Surface of the module: black
    Door return variable: Yes
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Number of Locking: One locking set
    Article with property rights: Yes
    Mounting Positions : Inside the sealing
    Suitable for door thickness from: 16 mm
    Suitable for door thicknesses up to: 20 mm
    RFID card reader: Stand-Alone with RFID 13.56 MHz
    Locking set: Electromechanical release
    Door Version : Left,Right
    Locking components: Furniture lock
    No Specifications
    View All Products

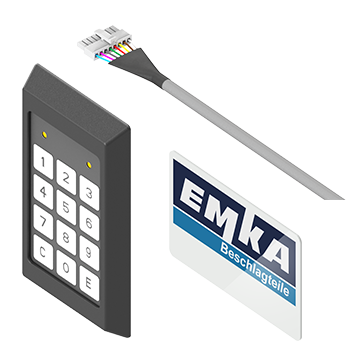

    Electronic components
