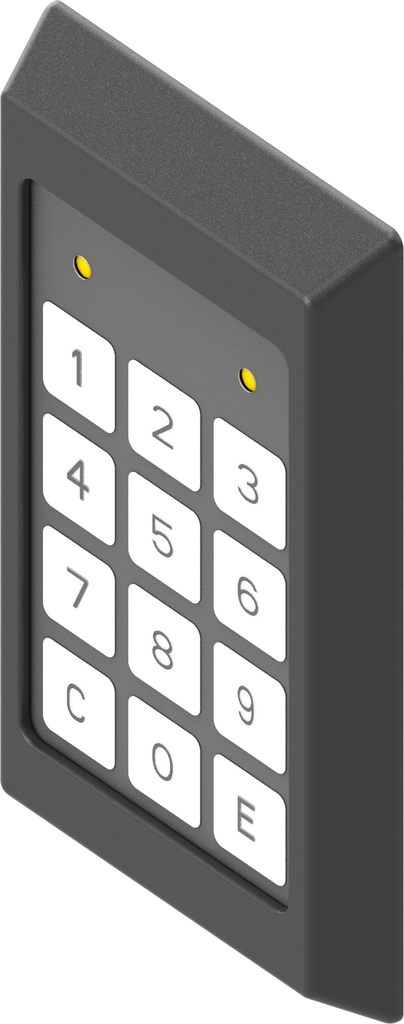

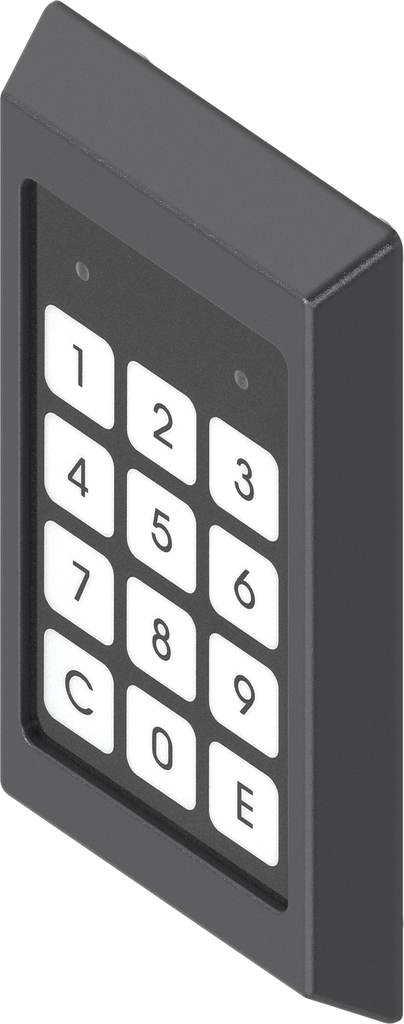

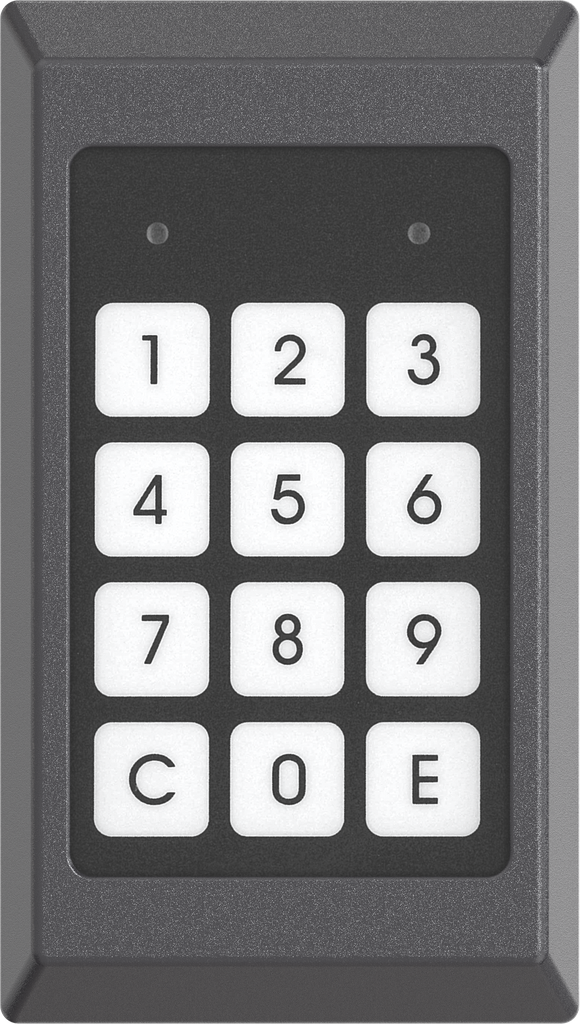

Keypad, Polyamide GF black; 3000-U8-01

https://www.emka.com/products/3000-u8-01 https://www.emka.com/web/image/product.template/65734/image_1920?unique=21823f8


    This combination does not exist.

    Networked solution


    Product information:

    • The keypad is used in combination with a Locking Unit to locally open selected locks by entering a PIN code
    • In combination with the Access Unit only the lock number is entered via the keypad while the RFID card contains the authorisation
    • Alternatively, a two-factor authentication for opening a lock is possible in this constellation (personal PIN code + RFID card)

    Power supply: 12 VDC, 50 mA
    CAN bus ports: 2
    Operating temperature: +5 ... +45 ° C
    Dimensions (L x B x H): 113 x 64 x 12 mm
    Scope of delivery: Connection cable 3 m RJ11

    Internal Reference: 3000-U8-01
    Product Type: Electronic components
    Program: 3000
    Material of the module : Polyamide GF
    Surface of the module: black
    Authentication Unit: Keypad
    Stand-Alone or networked system : Networked solution
    No Specifications
    View All Products

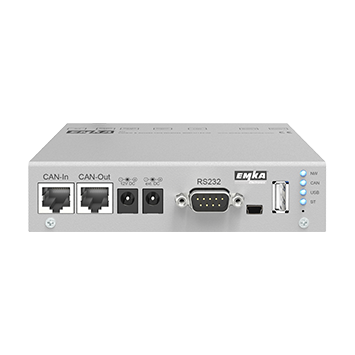

    ELM - Control Unit
    ELM - Locking Unit

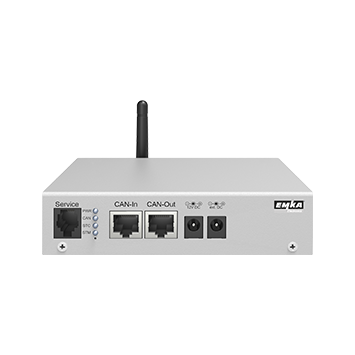

    ELM - Access Unit
