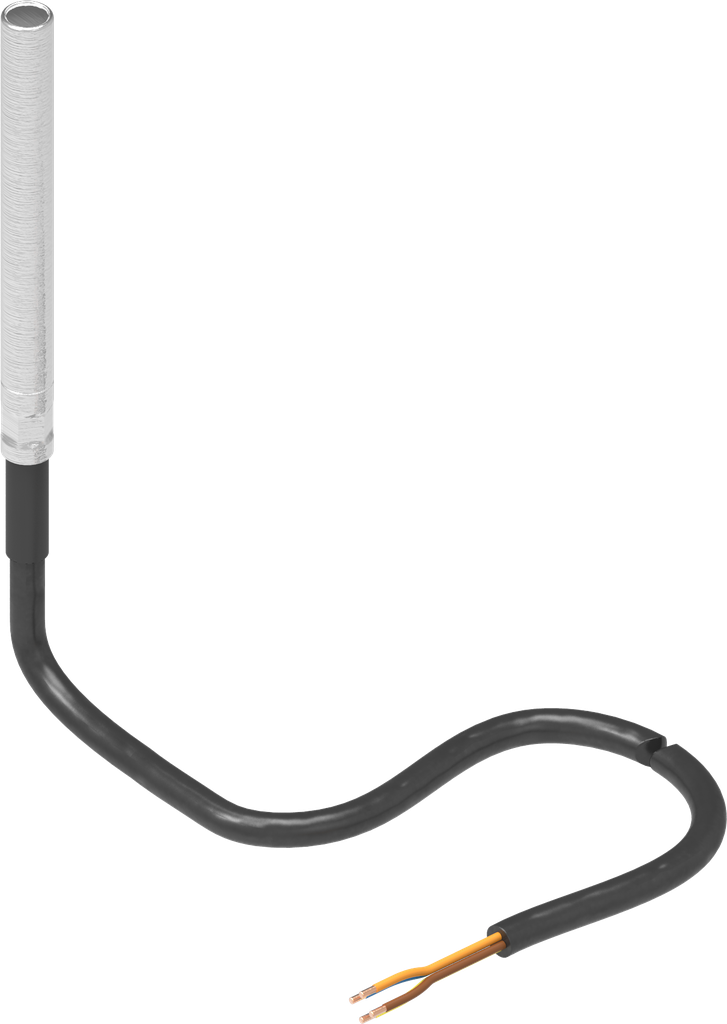

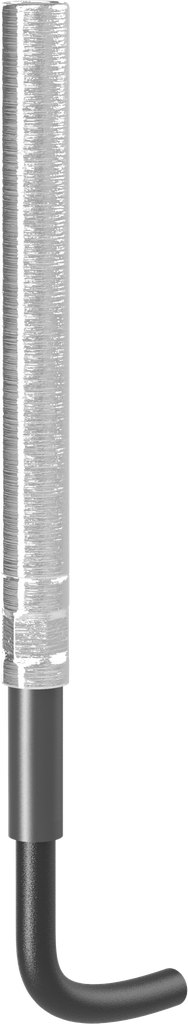

Temperature sensor with open cable ends; 3000-U39

https://www.emka.com/products/3000-u39 https://www.emka.com/web/image/product.template/65755/image_1920?unique=622ec38


    This combination does not exist.

    Networked solution


    Product information:

    • The analog climate sensor measures the temperature of the environment
    • The senor is connected to the Sensor Unit 3000-U13-0X and occupies one input of this unit

    Operating voltage: +12 V ±10 % (supplied by the system)
    Current consumption: approx. 0.8 mA
    Measuring range temperature: –50 ...150 °C
    Deviation: < 2 %
    Input voltage at -50 °C: 0.25 V
    Output voltage at 150 °C: 4.75 V
    Dimensions diameter x L: Ø 6 mm x 50 mm
    Cable length: 2 m
    Housing stainless steel

    Internal Reference: 3000-U39
    Product Type: ELM - Temperature sensor
    Program: 3000
    Sensor: Temperature sensor
    Stand-Alone or networked system : Networked solution
    Connected Solution: Access control and monitoring system
