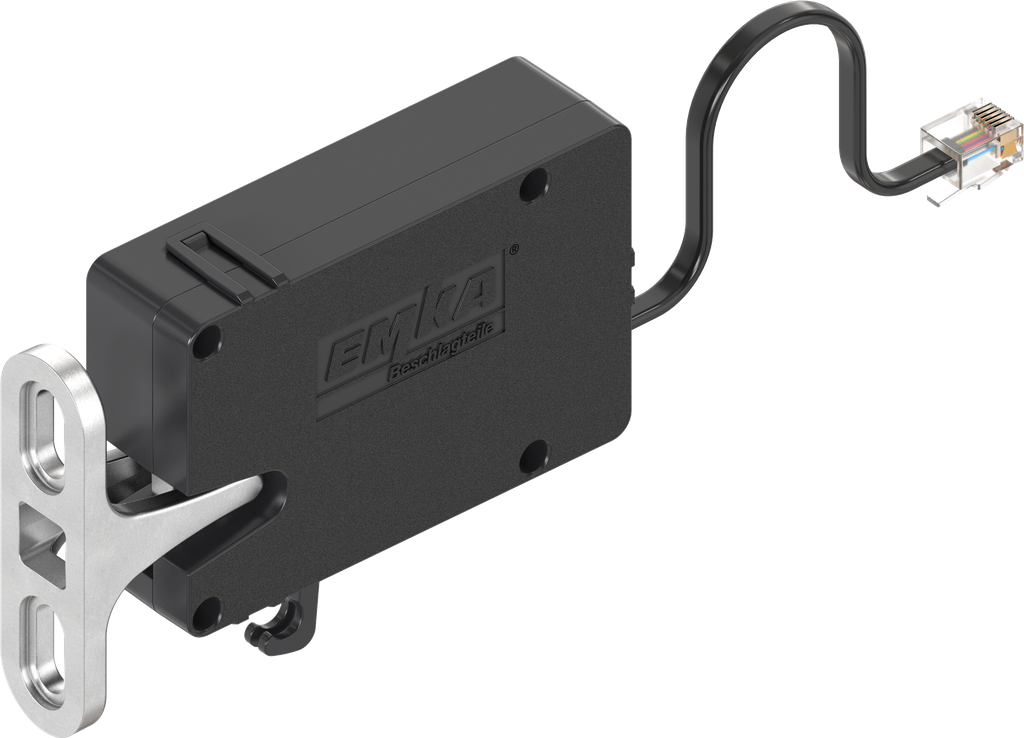

Single-point latch with emergency opening, Basic, Polyamide GF black
Product information:
The single-point latch is used in special application areas as locking system which is invisible from the outside.The following versions are available:– Basic = Latch opens by switching on the power supply and locks as soon as the door is closed again.– Basic delayed Re-Lock = Latch opens by switching on the power supply and remains in the position "open" as long as the power supply is applied.– Energy store = Latch opens when switching off of the power supply (alternative to magnetic locks).– Battery backup = Latch is permanently powered and opened via electrical pulse Broad supply voltage range of 9 ... 32 VPotential-free switch for remote monitoring of the state/door state Emergency opening in case of power failure possible via Bowden cable
Internal Reference:
3000-U330
Barcode:
3000-U00330-0000000
Product Type:
Single-point latch
Program:
3000
Material of the module :
Polyamide GF
Surface of the module:
black
Stand-Alone or networked system :
Networked solution
Connected Solution:
Access control and monitoring system
