Product information:

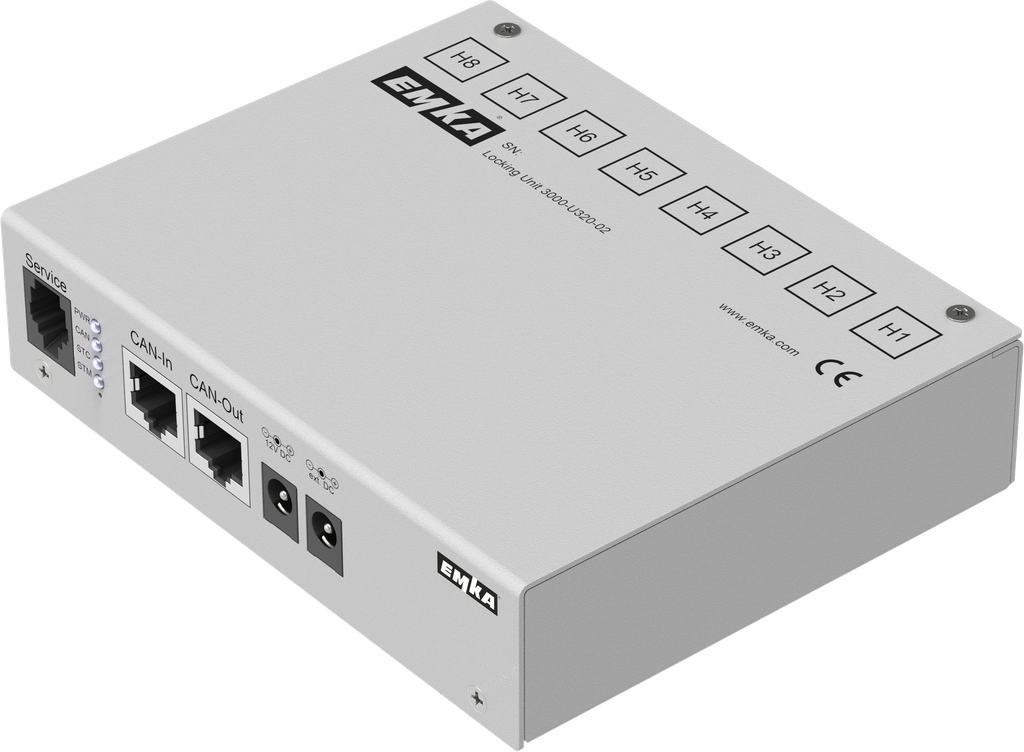

The Locking Unit 3000-U320-02 is part of the ELM system. It offers 8 independent ports for controlling electromechanical handles or single-point locks. Alternatively, a potential-free door contact can be connected to each port to monitor the door status (OPEN/CLOSED) .& nbsp;
Power supply: 12 V DC, 140 mA + latch output(s)
Latch output: max. 12 V / 1000 mA or max. 24 V / 500 mA;
Total current: 2000 mA
CAN LED: flashes when active, otherwise ON
STC LED: Normally OFF, flashes when the module status changes
Box dimensions: 135 x 33 x 107 mm (W x H x D)
Internal Reference:
3000-U320-02
Barcode:
3000-u00320-0000002
Product Type:
ELM - Locking Unit
Program:
3000
Stand-Alone or networked system :
Networked solution
Connected Solution:
Access control and monitoring system
