Locking unit for 8 releasable handles and single-point latches; 3000-U32-02

https://www.emka.com/products/3000-u32-02 https://www.emka.com/web/image/product.template/65749/image_1920?unique=8d0310d


    This combination does not exist.

    Networked solution


    Product information:

    • This module can control up to 8 single-point latches or handles with locking set 3000-U150-01 or swinghandles of the 1150 Program and import 8 status contacts.
    • Simultaneous activation of several locks is possible. In this case it is recommended to connect one power supply unit to each control module.
    • The opening signal for the respective lock is triggered by keypad, card or the EMKA Control Cockpit management software.
    • The states (open / closed) of locking systems, doors and side panels can be analysed via the existing inputs.

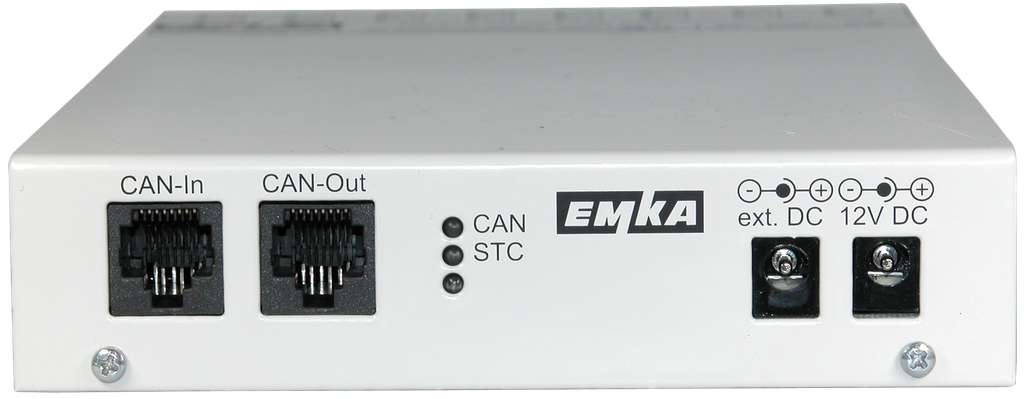

    • In order to supply locking systems with 24 V operating voltage an additional power supply unit can be connected to the input „ext. DC“ on the front side.
    Power supply: 12 VDC, 140 mA + outputs

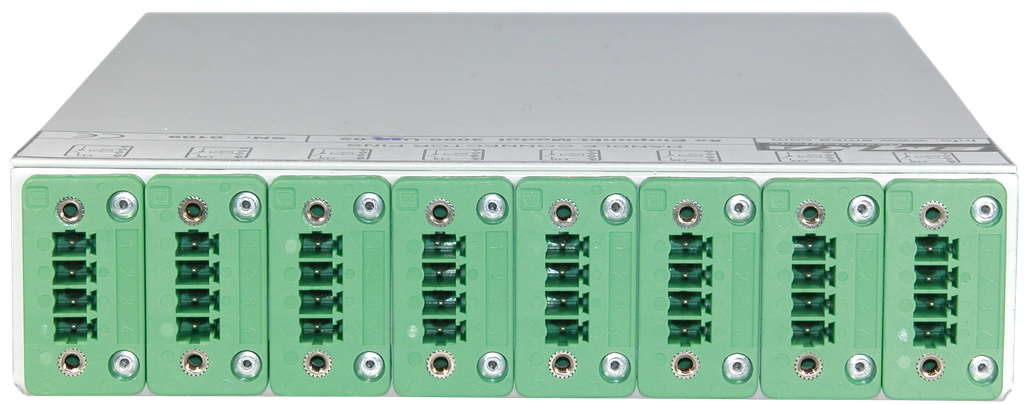

    Handle outputs: 8, max. 12 V / 1,000 mA, or max. 24 V / 500 mA per output
    Maximum current: 2,000 mA
    CAN bus ports: 2
    Operating temperature: +5 ... +45 °C
    Dimensions (L x B x H): 235 x 135 x 33 mm
    Scope of delivery: Assembly bracket
    Internal Reference: 3000-U32-02
    Product Type: ELM - Locking Unit
    Program: 3000
    Stand-Alone or networked system : Networked solution
    Connected Solution: Access control and monitoring system
    No Specifications
    View All Products

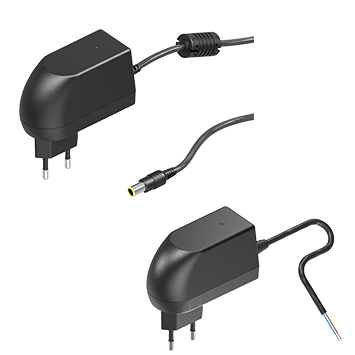

    ELM - Power supply plug

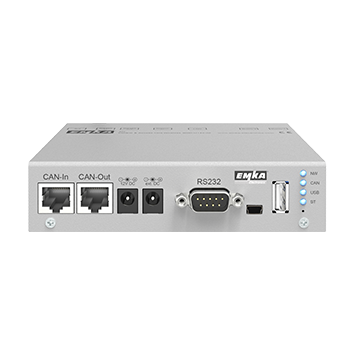

    ELM - Control Unit

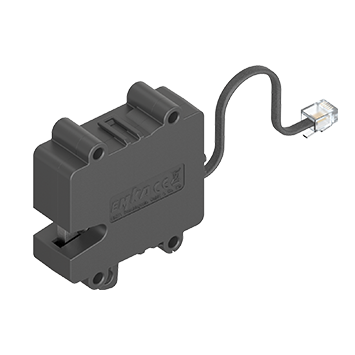

    Single-point latch

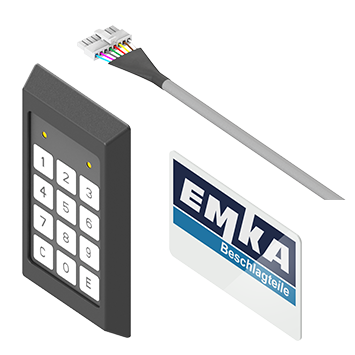

    Electronic components
