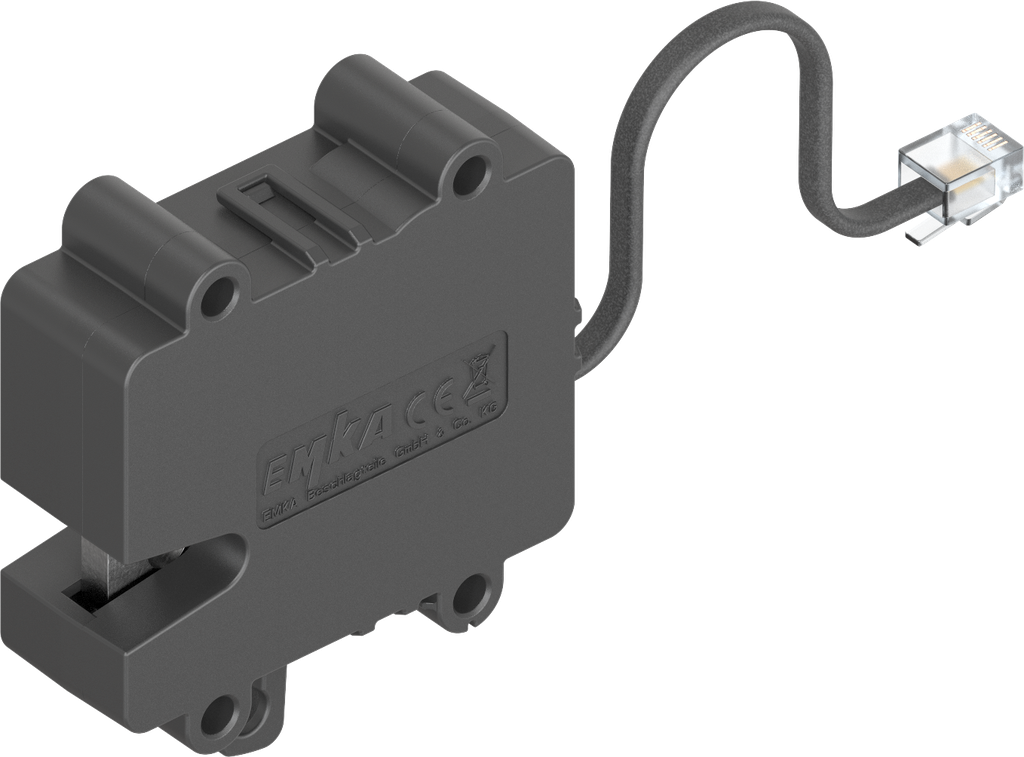

Single-point latch with emergency opening, Energy store, Polyamide GF black; 3000-U301-03

https://www.emka.com/products/3000-u301-03 https://www.emka.com/web/image/product.template/65778/image_1920?unique=21823f8

Latch opens when switching off of the power supply


    This combination does not exist.

    Networked solution


    Product information:

    The single-point latch is used in special application areas as locking system which is invisible from the outside.
    The following versions are available:
    – Basic = Latch opens by switching on the power supply and locks as soon as the door is closed again.
    – Basic delayed Re-Lock = Latch opens by switching on the power supply and remains in the position "open" as long as the power supply is applied.
    – Energy store = Latch opens when switching off of the power supply (alternative to magnetic locks).
    – Battery backup = Latch is permanently powered and opened via electrical pulse; protection type IP 56.

    • Broad supply voltage range of 9 ... 32 V
    • Potential-free switch for remote monitoring of the state/door state
    • Emergency opening in case of power failure possible via Bowden cable
    • Connection possible to Locking Unit 3000-U32-x or Access Unit 3000-U47-x; Adapter cable optional
    • ATEX / UL-Ex certification

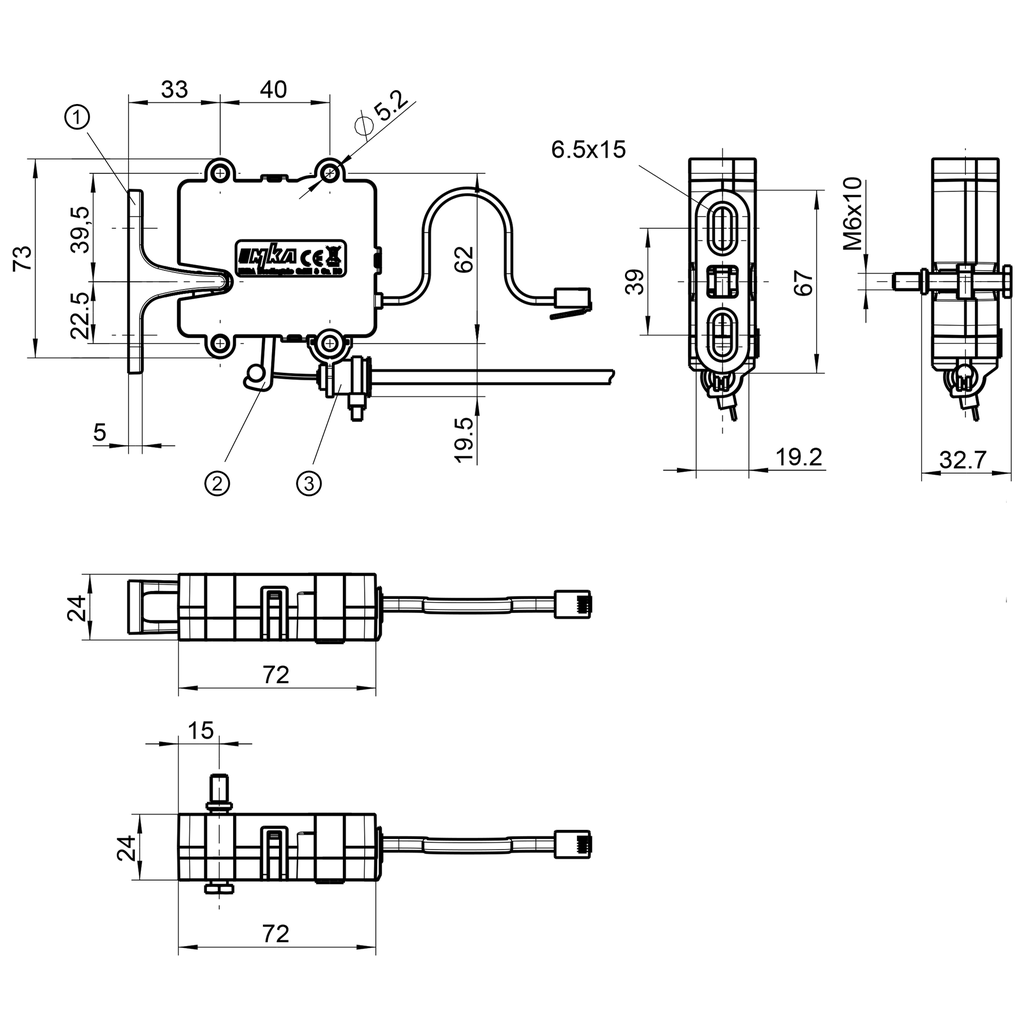

    1 = Catch or locking bolt
    2 = Lever for mechanical unlocking , e.g. Bowden cable
    3 = Bowden cable mounting

    4 = Contact
    5 = V -
    6 = V +
    7 = Contact

    8 = V -
    9 = V -
    10 = V -
    11 = Release +
    12 = Open collector output
    13 = V +

    Assembly instruction:

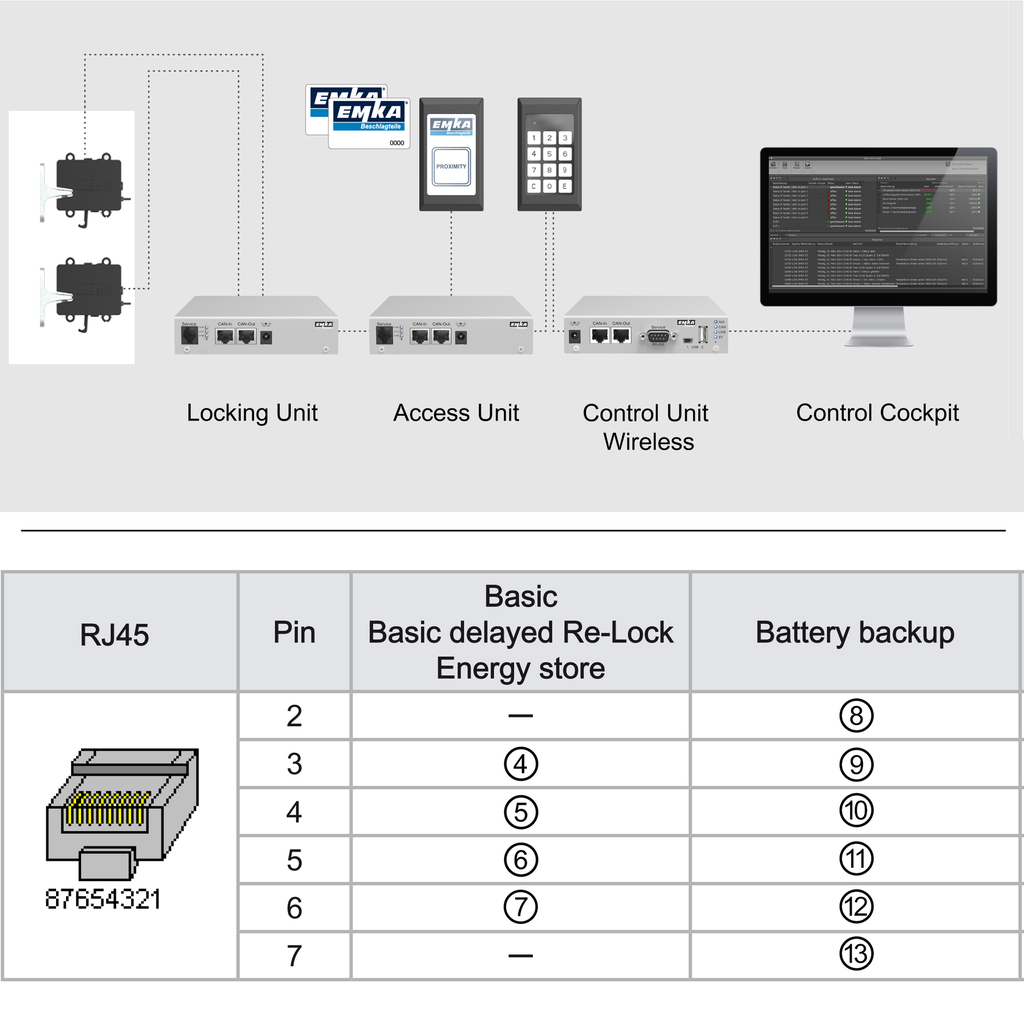

    Per Control Unit Wireless max. 64 Locking Units ≘ max. 512 single-point latches
    Keypad / Card reader with Access Unit optional

    Internal Reference: 3000-U301-03
    Product Type: Single-point latch
    Program: 3000
    Material of the module : Polyamide GF
    Surface of the module: black
    Single point locking with integrated locking contact: Energy Store; automatic opening in case of power failure
    Stand-Alone or networked system : Networked solution
    Connected Solution: Access control and monitoring system
    No Specifications
    View All Products

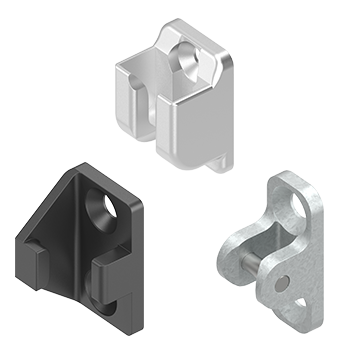

    Catch

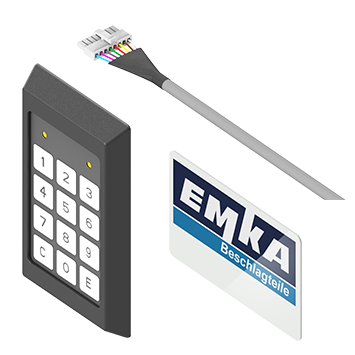

    Electronic components
