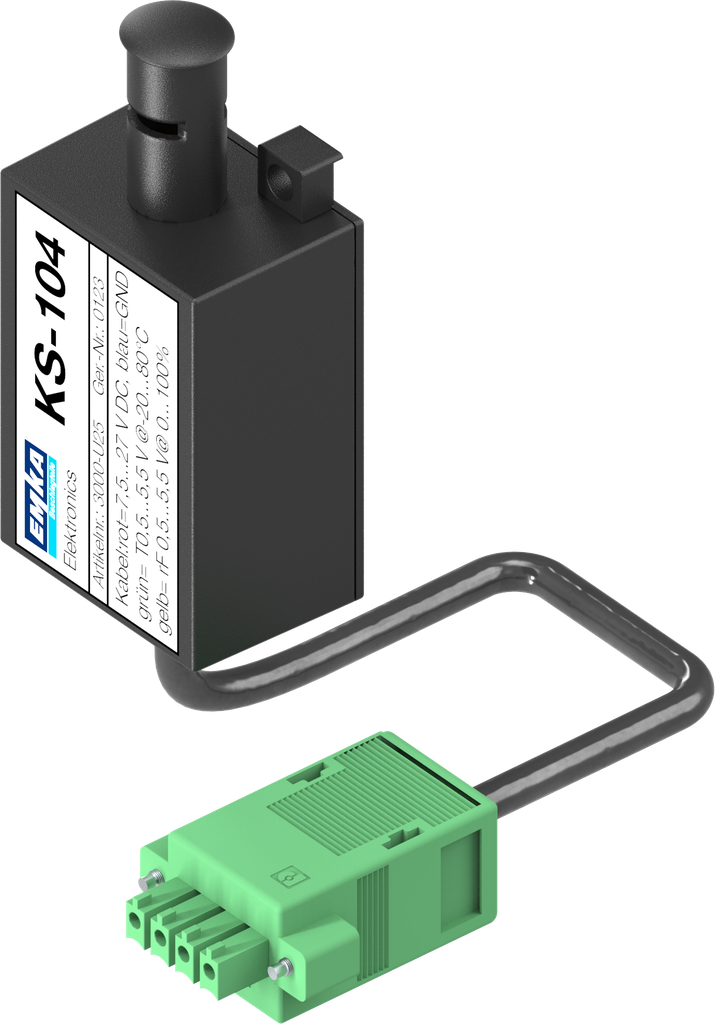

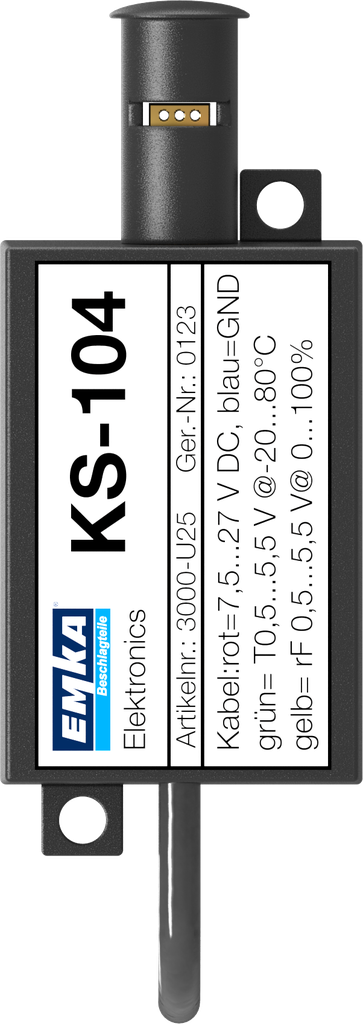

Climatic sensor for temperature and humidity with plug for sensor unit; 3000-U25-01

https://www.emka.com/products/3000-u25-01 https://www.emka.com/web/image/product.template/65748/image_1920?unique=8d0310d


    This combination does not exist.

    Networked solution


    Product information:

    • The analogue climate sensor measures both ambient humidity and temperature.
    • The sensor is connected to the 3000-U13-0X sensor module.
    Operating voltage: 7.5 ... 27 VDC (supplied by the ELM system)
    Current consumption: approx. 0.8 mA
    Measuring range humidity: 0...100 % relative humidity
    Deviation: ± 3.5 % (20...80 % relative humidity)
    Settling time: < 4 sec.
    Output humidity: 0.5 ... 5.5 V
    Measuring element: capacitive, (condensation-proof)
    Measuring range temperature: –0 ... +80 °C
    Deviation: ± 0.5 K at 25 °C
    Settling time: < 20 sec
    Output temperature: 0.5 ... 5.5 V
    Measuring element: semi-conductor
    Dimensions L x B x H: 65 x 31 x 22 mm
    Cable length: 2 m
    Plastic housing with two mounting holes
    Internal Reference: 3000-U25-01
    Product Type: ELM - Climatic sensor
    Program: 3000
    Sensor: Climatic sensor for temperature and humidity
    Stand-Alone or networked system : Networked solution
    Connected Solution: Access control and monitoring system
