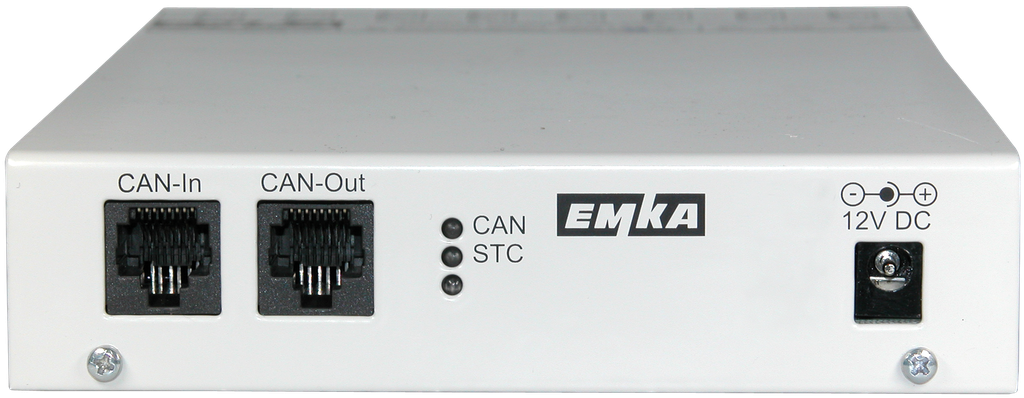

Sensor unit; 3000-U13-02

https://www.emka.com/products/3000-u13-02 https://www.emka.com/web/image/product.template/65741/image_1920?unique=3a7b134


    This combination does not exist.

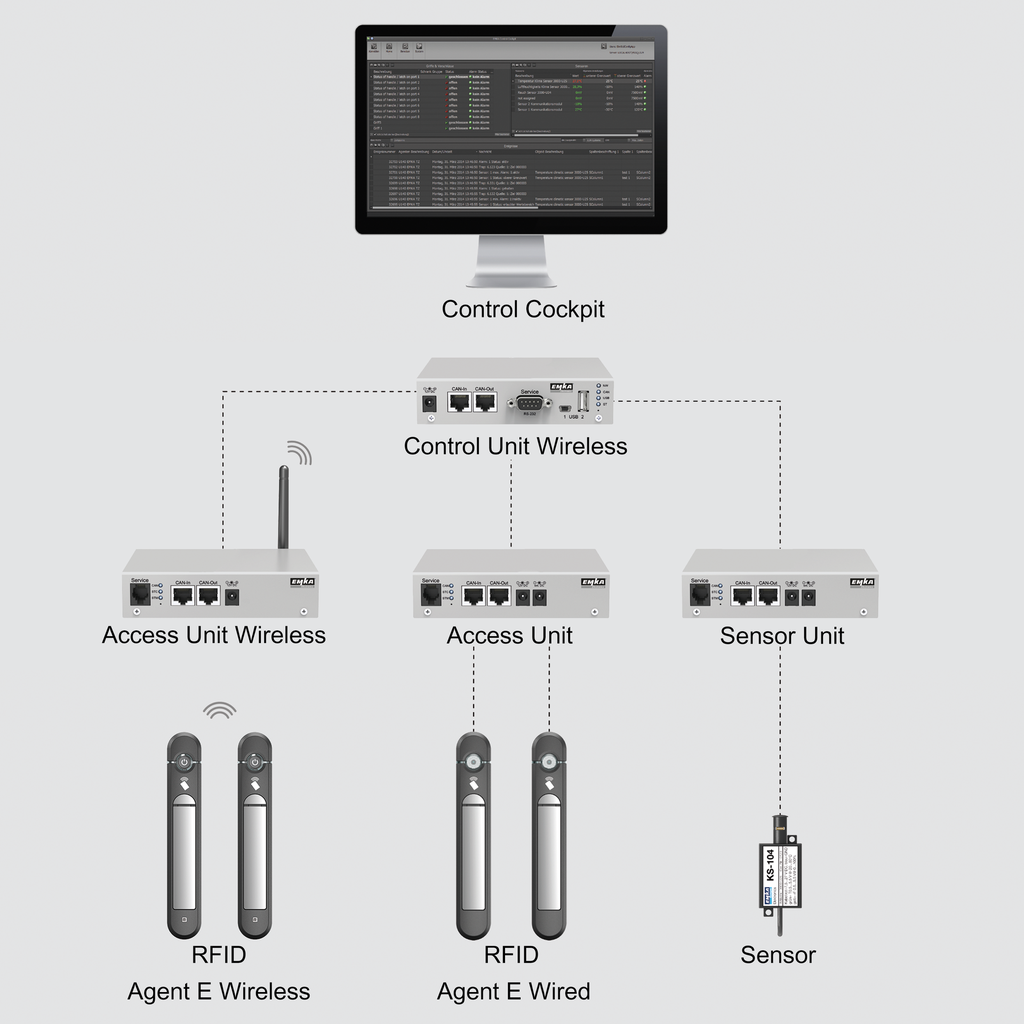

    Networked solution


    Product information:

    • This module is used to record and evaluate various measured variables such as temperature, humidity, smoke or electrical parameters
    • Connection of max. 4 sensors
    • Switching of max. 4 alarm relay outputs (e.g. switching fans on or off) depending on the set limit values
    Power supply: 12 VDC, 200 mA
    Sensor inputs: 4 (with sensor supply)
    Relay outputs: 4 (30 VDC, max. 1.0 A; 48 VAC, max. 0.5 A)
    CAN bus connections: 2
    Operating temperature: +5 ... +45° C
    Dimensions (L x W x H): 235 x 135 x 33 mm
    Scope of delivery: Mounting bracket
    Internal Reference: 3000-U13-02
    Product Type: ELM - Sensor Unit
    Program: 3000
    Stand-Alone or networked system : Networked solution
    Connected Solution: Access control and monitoring system
    No Specifications
    View All Products
    ELM - Control Unit

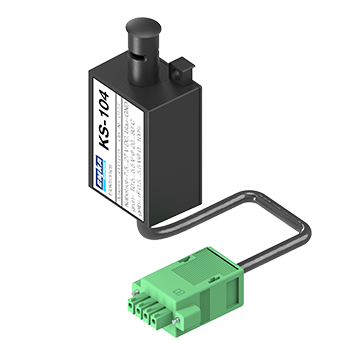

    ELM - Climatic sensor

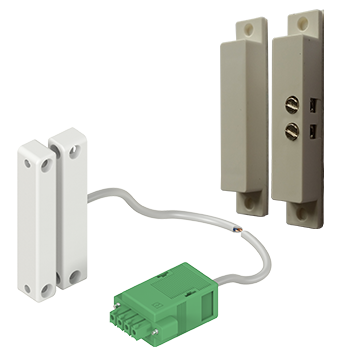

    ELM - Door contact

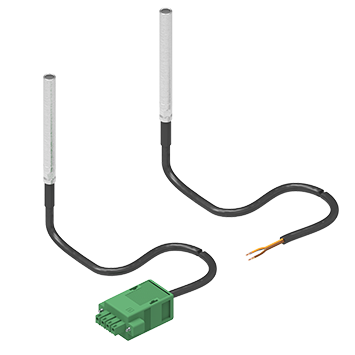

    ELM - Temperature sensor
    Here you can find the product data sheets and CAD files of this product
