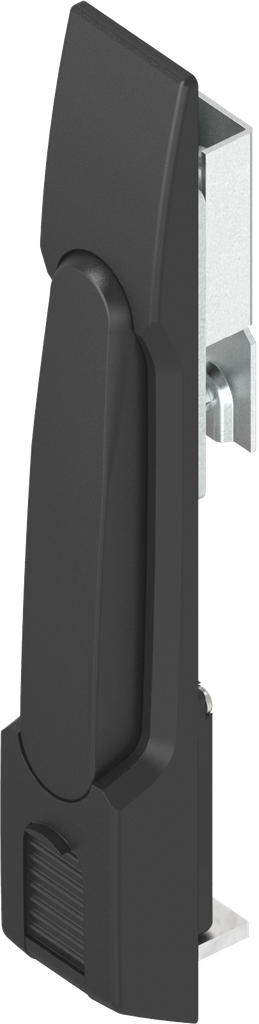

Swinghandle with locking set push button, Polyamide GF black; 2400-U3

https://www.emka.com/products/2400-u3 https://www.emka.com/web/image/product.template/65556/image_1920?unique=21823f8


    This combination does not exist.

    Outside the sealing Foamed seal Left Right


    Product information:

    Rod control on request

    Function:

    Turn 90° = 16 mm stroke

    Internal Reference: 2400-U3
    Product Type: Swinghandle, Lifthandle
    Program: 2400
    Catalog sheet: 3K-220
    Material of the module : Polyamide GF
    Surface of the module: black
    Dimension A, Variable: 25 mm
    Number of Possible Locking Points: 2 points, 4 point, More than 4 points available on request
    Number of Locking: One locking set
    Attachment of the trough: Screwed
    Mounting Positions : Outside the sealing
    Foamed gasket: Yes
    Handle Art(1): Swinghandle
    With integrated rod control / 3-point cam: Yes
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Locking set: Push button
    Locking set modular technology: Profile half cylinder with cap, A = 30, mounted at the dish,ASSA cylinder with cap, mounted at the dish,KABA cylinder with cap, mounted at the dish,Round cylinder without cap, mounted at the dish,Insert without cap, mounted at the dish
    locking set cover: Yes
    Swivel Handle: 24.2 mm
    Pan Handle Length: 246.6 mm
    Door revolvable / reversible: Yes
    Door Version : Left,Right
    Locking components: Integrated rod control
    No Specifications
    View All Products
    Locking set
    Here you can find the product data sheets and CAD files of this product
