Locking set for KABA cylinder type 1036, Zinc die black powder-coated for outdoor use
Locking set for KABA cylinder type 1036, Zinc die black powder-coated for outdoor use
Locking set, left version, for KABA cylinder type 1036, Zinc die black powder-coated for outdoor use
Locking set, left version, for KABA cylinder type 1036, Zinc die black powder-coated for outdoor use

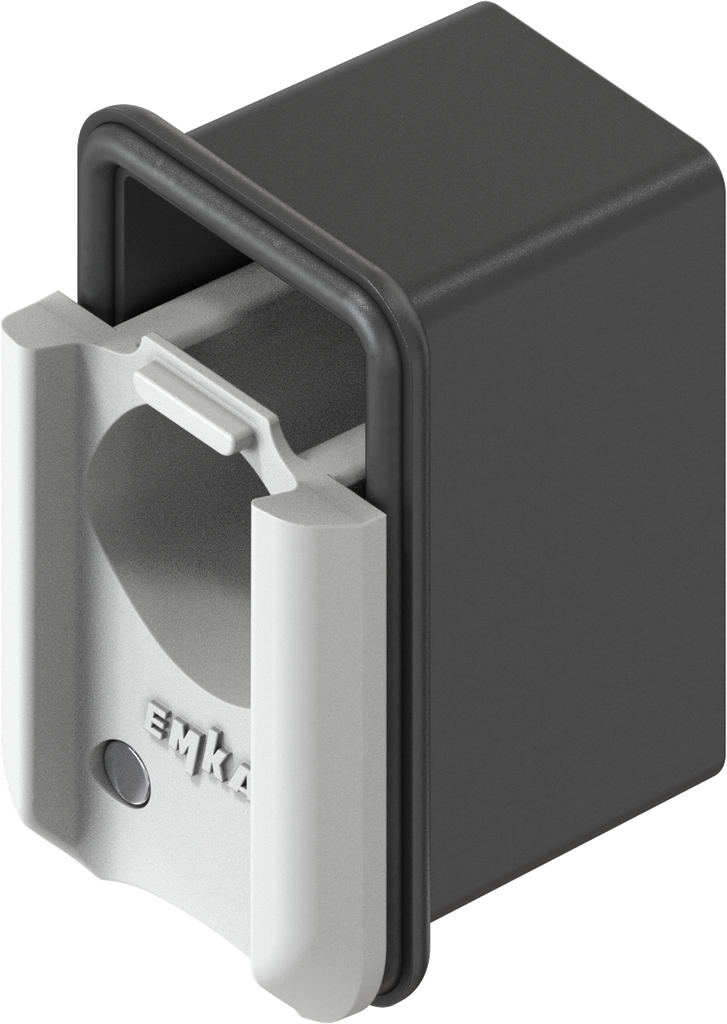

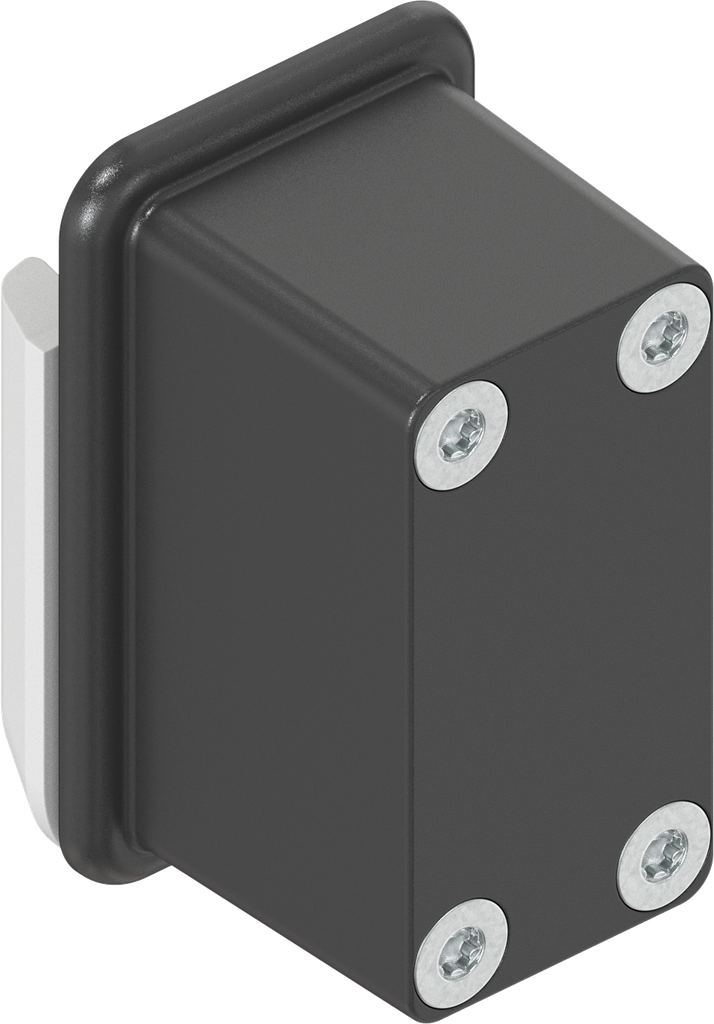

Locking set for KABA cylinder type 1036, Zinc die white aluminium powder-coated; 2225-U54-BK

https://www.emka.com/products/2225-u54-bk https://www.emka.com/web/image/product.template/234692/image_1920?unique=eb097dc

for long version, KABA cylinder provided by customer

    This combination does not exist.

    Protection class IP 65

    Product Benefits:

    Flat design Locking system inserts (locking sets) can be easily changed to the front Suitable for standard cut out Permanent magnet holds the cylinder cover Locking set made of zinc die Patent pending

    Assembly instruction:

    Easy exchange of the locking sets. By removing the two lower screws, the locking set can be easily removed to the front. Attention: KABA cylinder and 2 countersunk screws M2.3 x 8 are not included in scope of supply!
    Internal Reference: 2225-U54-BK
    Standards: Protection class IP 65
    Barcode: 2225-U00054-00000BK
    Product Type: Locking set
    Program: 2225
    Material of the module : Zinc die
    Surface of the module: white aluminium powder-coated
    Installation Position of Block: Dish
    Cloak: Yes
    Cap dimension L: Program 2225 = 32
    Locking set: KABA cylinder
