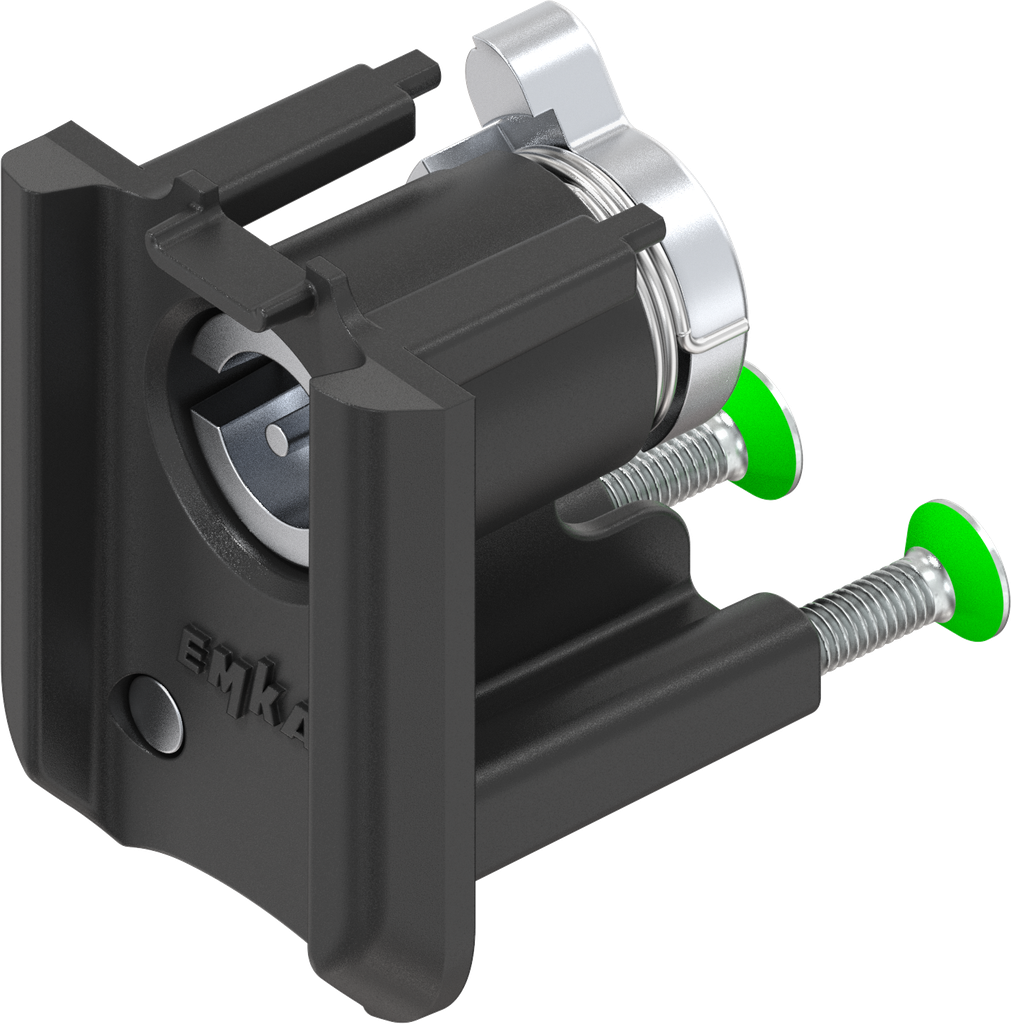

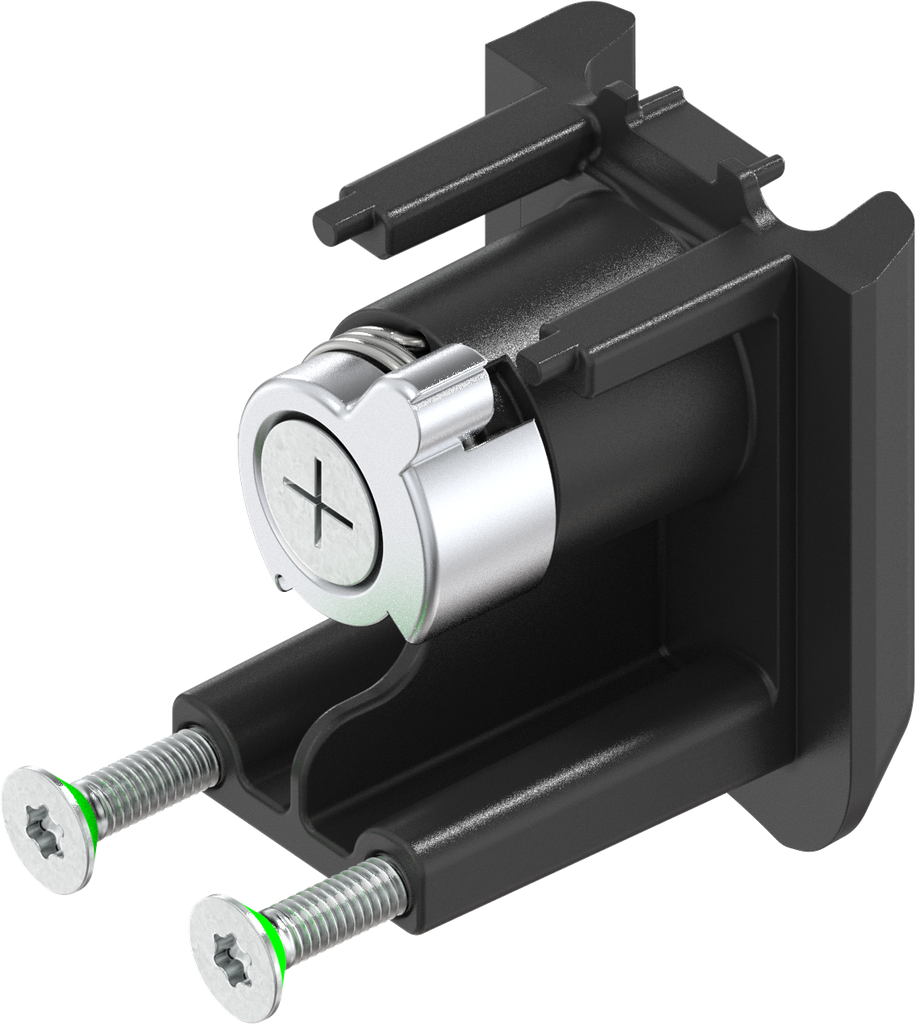

Locking set with insert double bit 3, Zinc die black powder-coated
Locking set with insert double bit 3, Zinc die black powder-coated
Locking set, left version, with insert double bit 3, Zinc die black powder-coated for outdoor use
Locking set, left version, with insert double bit 3, Zinc die black powder-coated for outdoor use

Locking set with insert double bit 3, Zinc die black powder-coated for outdoor use; 2225-U50-01

https://www.emka.com/products/2225-u50-01 https://www.emka.com/web/image/product.template/234683/image_1920?unique=96a12a8

for short version

    This combination does not exist.

    Product Benefits:

    • Flat design
    • Locking system inserts (locking sets) can be easily changed to the front
    • Suitable for standard cut out
    • Permanent magnet holds the cylinder cover
    • Locking set made of zinc die
    • Patent pending

    Assembly instruction:

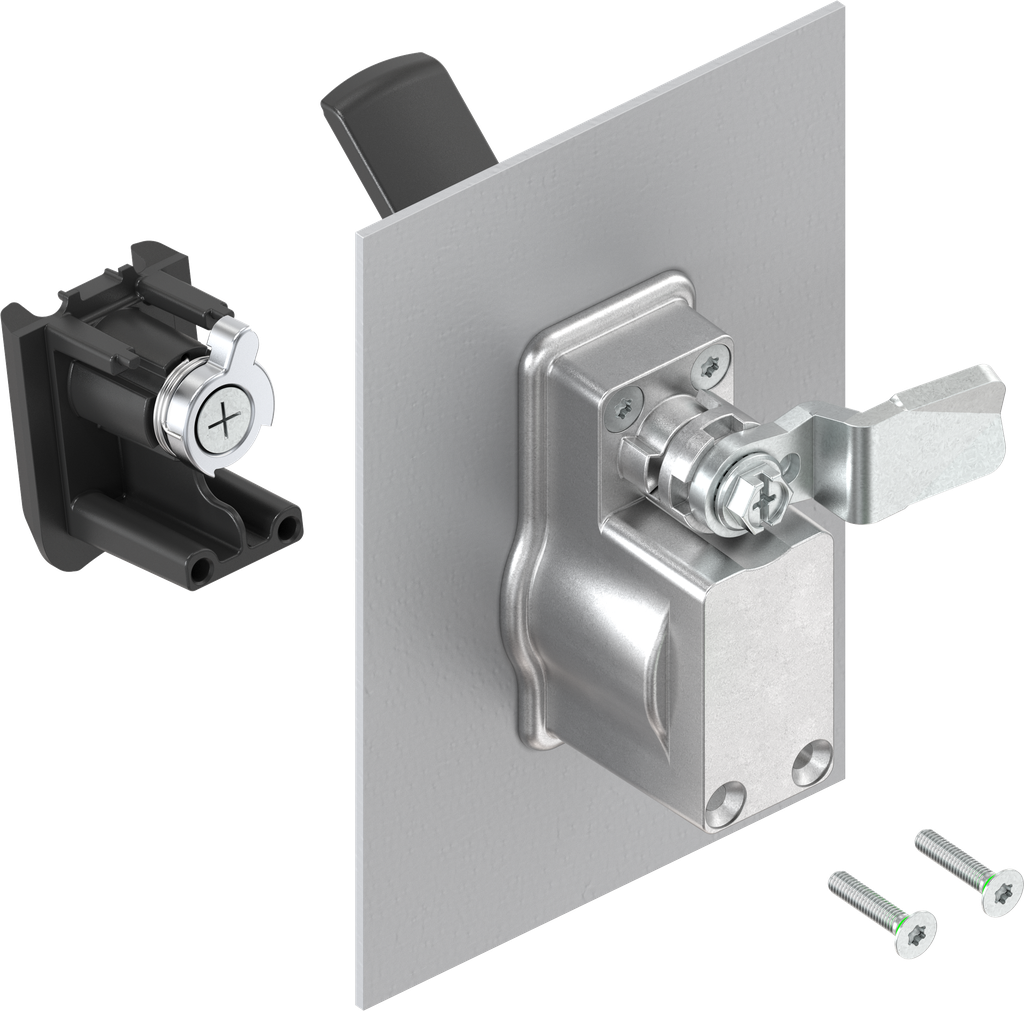

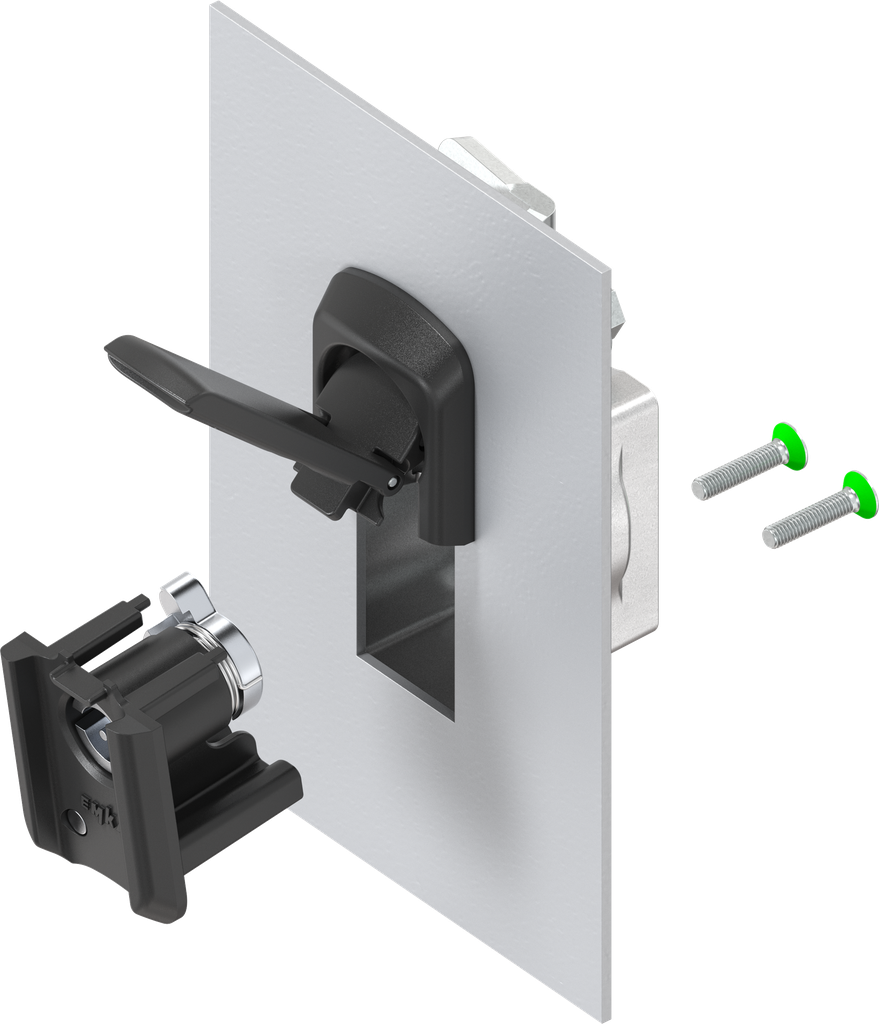

    Easy exchange of the locking sets
    By removing the two lower screws, the locking set can be easily removed to the front.
    Internal Reference: 2225-U50-01
    Barcode: 2225-U00050-0000001
    Product Type: Locking set
    Program: 2225
    Catalog sheet: 3J-140
    Material of the module : Zinc die
    Surface of the module: black powder-coated for outdoor use
    Article with property rights: Yes
    Type of actuation: Double bit 3
    Installation Position of Block: Dish
    Locking set: Insert
