Locking set for profile half cylinder 40, Zinc die black powder-coated for outdoor use
Locking set for profile half cylinder 40, Zinc die black powder-coated for outdoor use
Locking set with round cylinder EK 333, Zinc die black powder-coated for outdoor use
Locking set with round cylinder EK 333, Zinc die black powder-coated for outdoor use

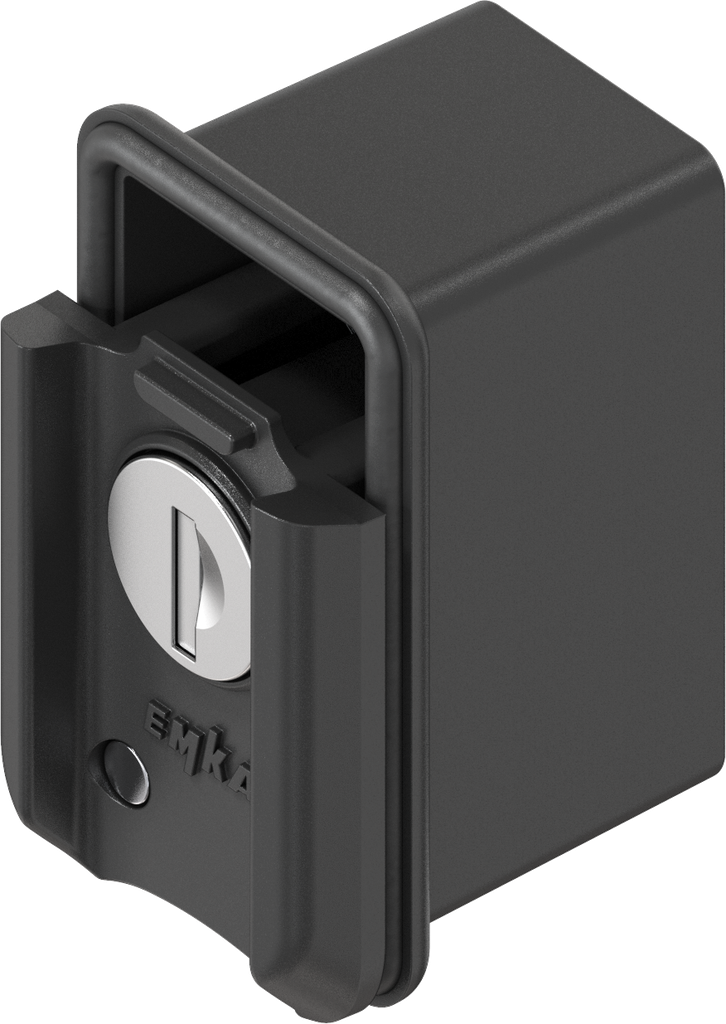

Locking set with round cylinder EK 333, Zinc die black powder-coated; 2225-U48

https://www.emka.com/products/2225-u48 https://www.emka.com/web/image/product.template/234670/image_1920?unique=21823f8

for long version


    This combination does not exist.

    Protection class IP 65


    Product Benefits:

    • Flat design Locking system inserts (locking sets) can be easily changed to the front Suitable for standard cut out Permanent magnet holds the cylinder cover Locking set made of zinc die Patent pending
    • Locking system inserts (locking sets) can be easily changed to the front
    • Suitable for standard cut out
    • Permanent magnet holds the cylinder cover
    • Locking set made of zinc die
    • Patent pending

    Assembly instruction:

    Easy exchange of the locking sets By removing the two lower screws, the locking set can be easily removed to the front.

    Internal Reference: 2225-U48
    Product Type: Locking set
    Program: 2225
    Catalog sheet: 3J-120
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Installation Position of Block: Dish
    Cloak: Yes
    Cap dimension L: Program 2225 = 32
    Round Cylinder Type: EMKA EK, keyed EK 333
    Locking set: Round cylinder
    No Specifications
    View All Products
    Keys
    Swinghandle, Lifthandle
    Here you can find the product data sheets and CAD files of this product
