Flat swinghandle with compression function for locking set, Zinc die black powder-coated and zinc-plated

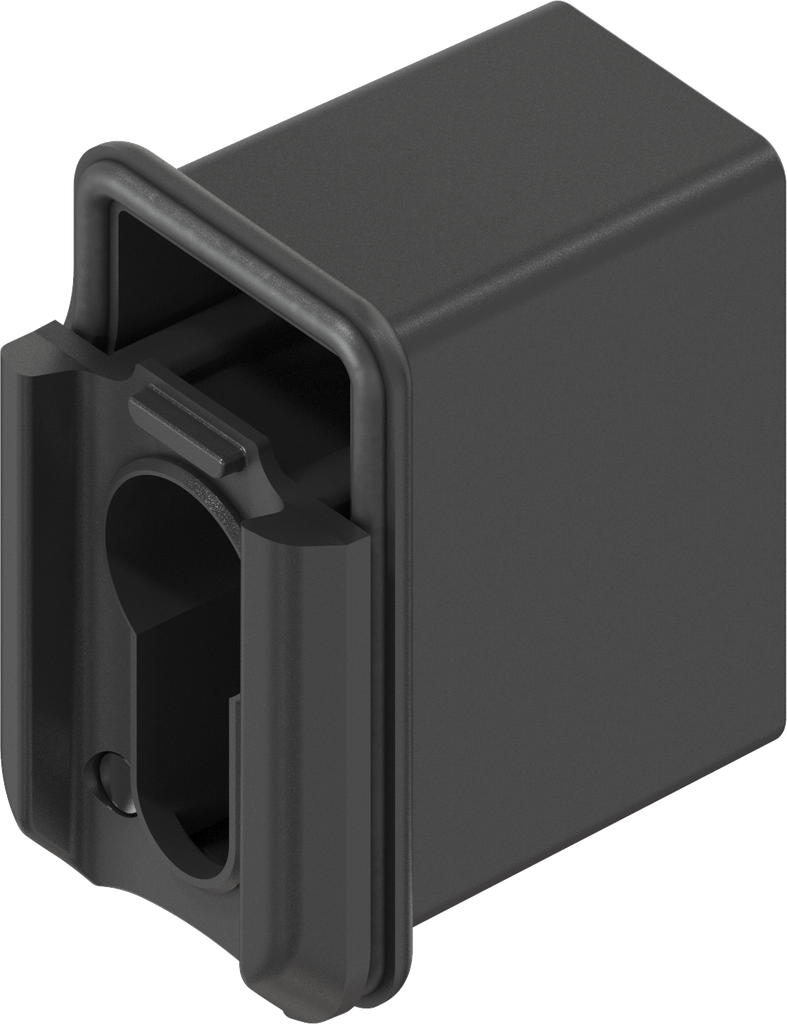

Locking set for profile half cylinder 40, Zinc die black powder-coated for outdoor use
Locking set for profile half cylinder 40, Zinc die black powder-coated; 2225-U11
for A = 30 mm, for long version
Product Benefits:
- Flat design
- Locking system inserts (locking sets) can be easily changed to the front
- Suitable for standard cut out
- Permanent magnet holds the cylinder cover
- Locking set made of zinc die
- Patent pending
Assembly instruction:
Easy exchange of the locking sets
By removing the two lower screws, the locking set can be easily removed to the front.
Internal Reference:
2225-U11
Standards:
Protection class IP 65
Product Type:
Locking set
Program:
2225
Catalog sheet:
3J-120
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Installation Position of Block:
Dish
Cloak:
Yes
Cap dimension L:
Program 2225 = 40.5
Locking set:
Profile half cylinder A = 30
No Specifications
