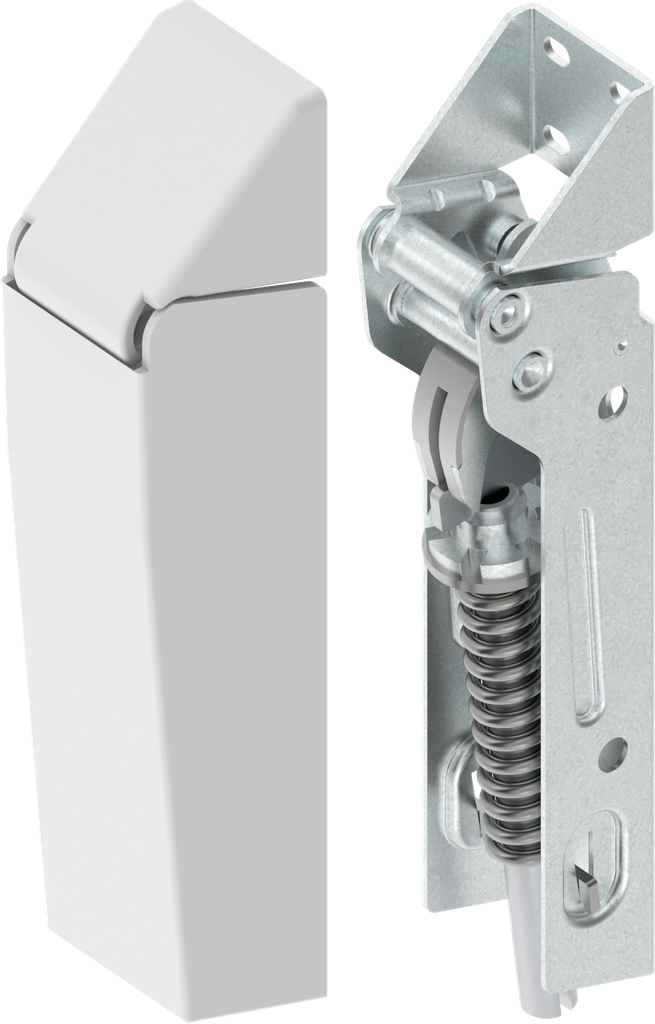

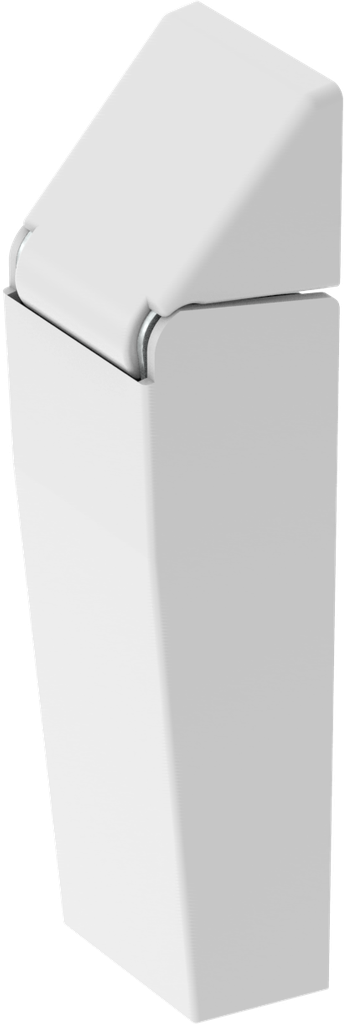

80° Counterbalancing spring-loaded hinge, Steel zinc-plated; 1715-U332

https://www.emka.com/products/1715-u332 https://www.emka.com/web/image/product.template/65387/image_1920?unique=a04078a

for lid weight with homogeneous distribution of weight in the range of 17 kg with 2 hinges


    This combination does not exist.

    Single cabinets In-line cabinets with single door Left Right


    Product information:

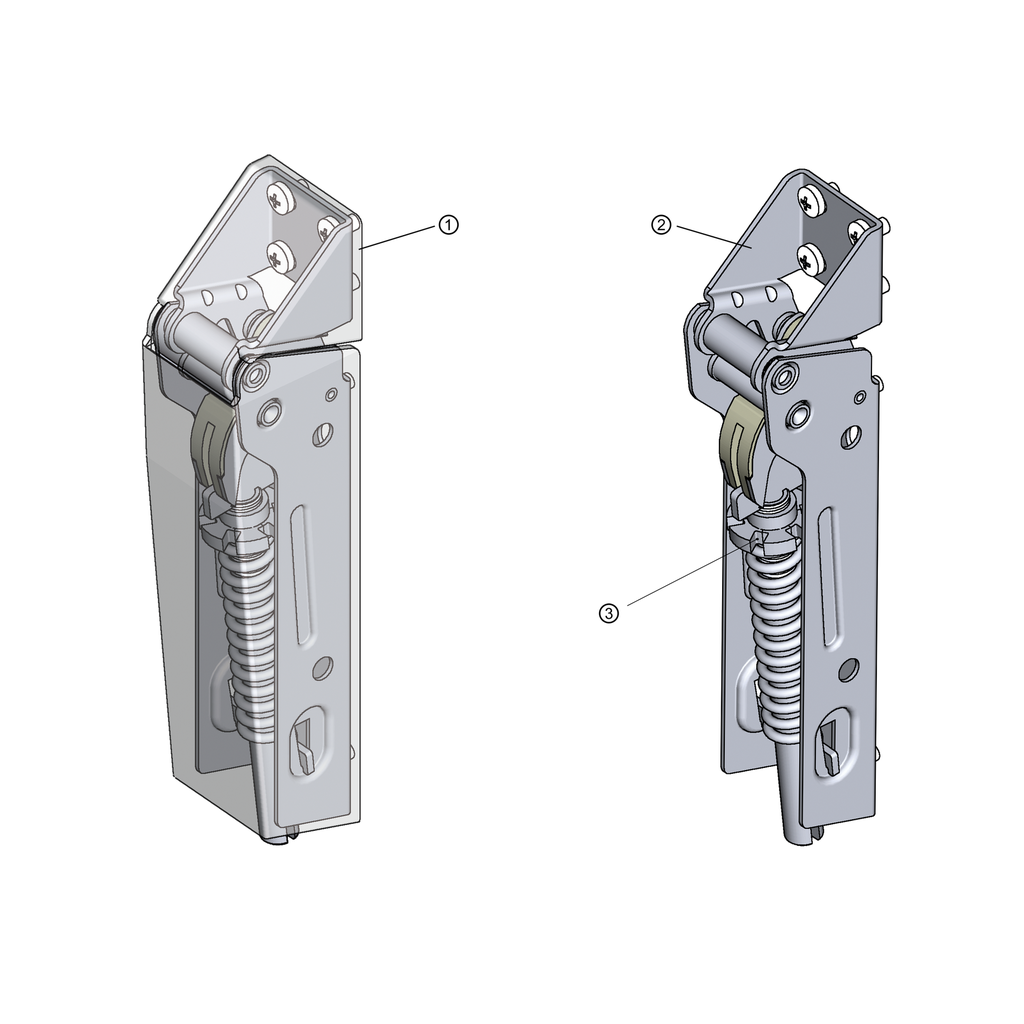

    ① = Covering caps depicted transparent
    ② = Depicted without covering caps
    ③ = By means of the adjusting nut the torque can be set.

    Application:
    The spring-loaded hinge can be used e.g. for freezers. The covering caps can be put on after assembly of the hinge.

    Akeneo Note:

    For lid weight with homogeneous distribution of weight in the range of 17 kg with 2 hinges

    Internal Reference: 1715-U332
    Product Type: Hinge
    Program: 1715
    Catalog sheet: 4D-120
    Material of the module : Steel
    Surface of the module: zinc-plated
    Door return variable: Yes
    Type of attachment to the frame: screw-on from outside
    Type of fastening on the door: screw-on from outside
    Counterbalancing spring loaded hinge: Yes
    Adjustable : 2D
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 80°
    Cabinet type : Single cabinets,In-line cabinets with single door
    Door position: prominent
    Door Version : Left,Right
