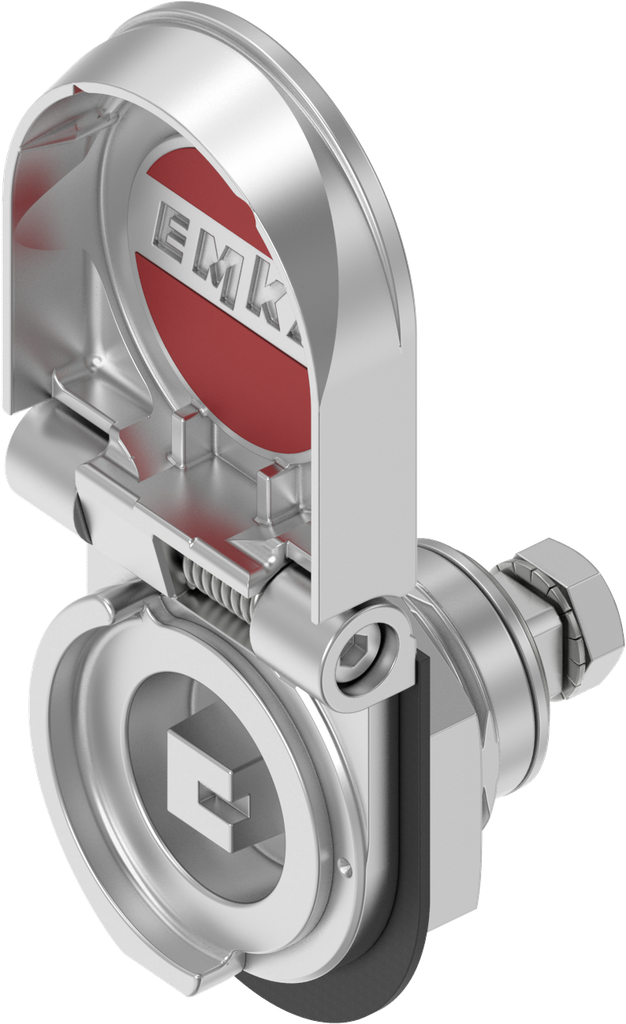

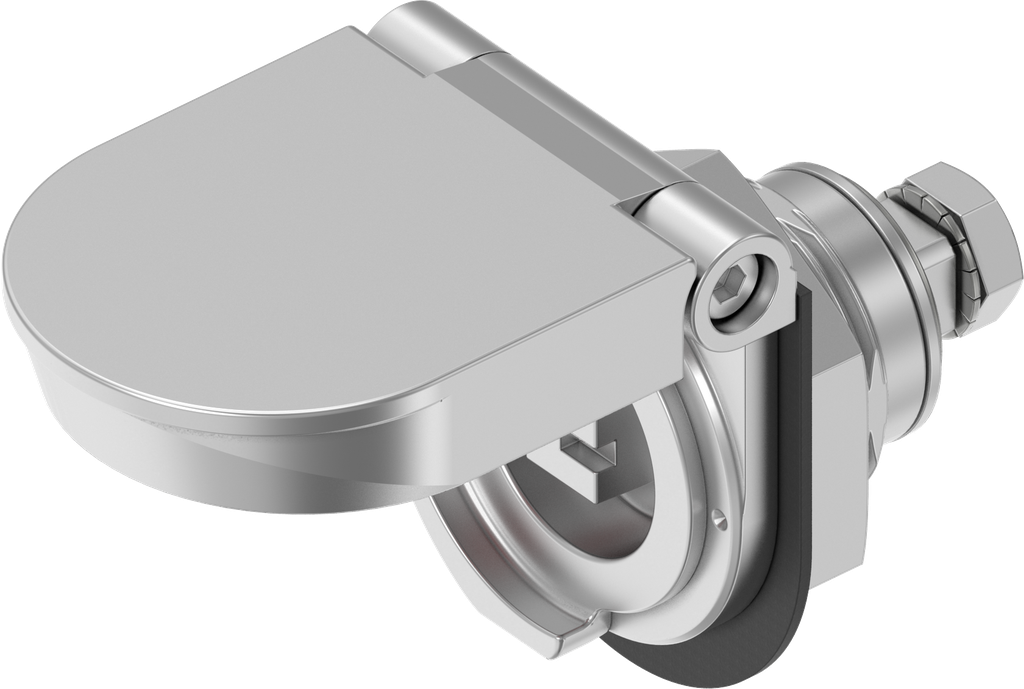

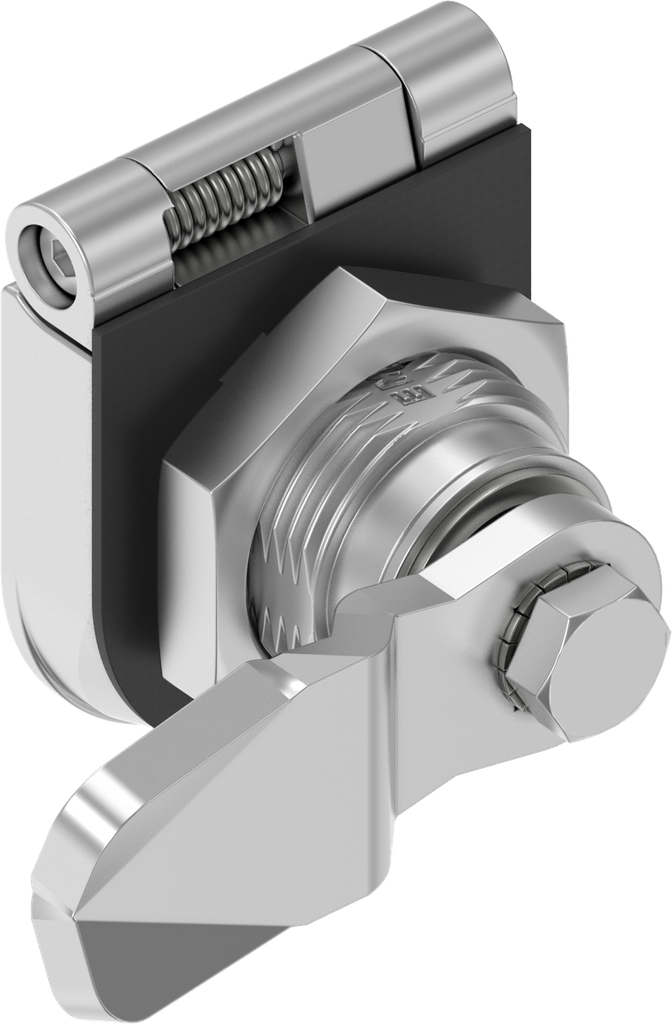

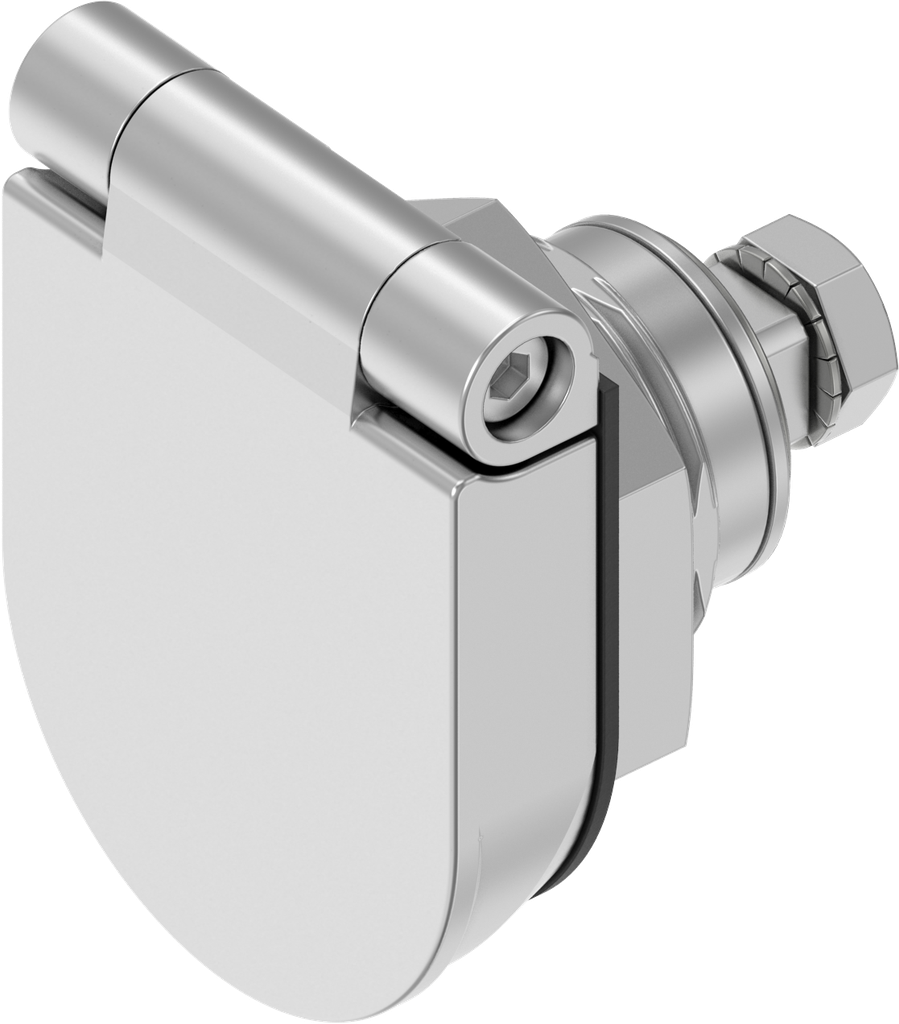

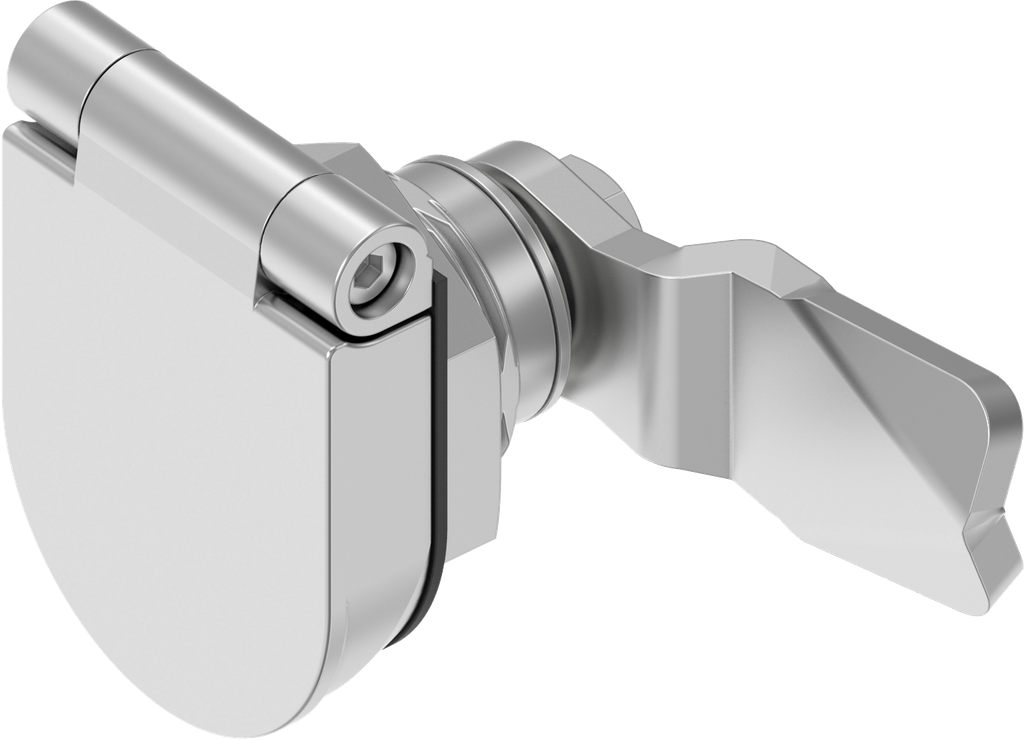

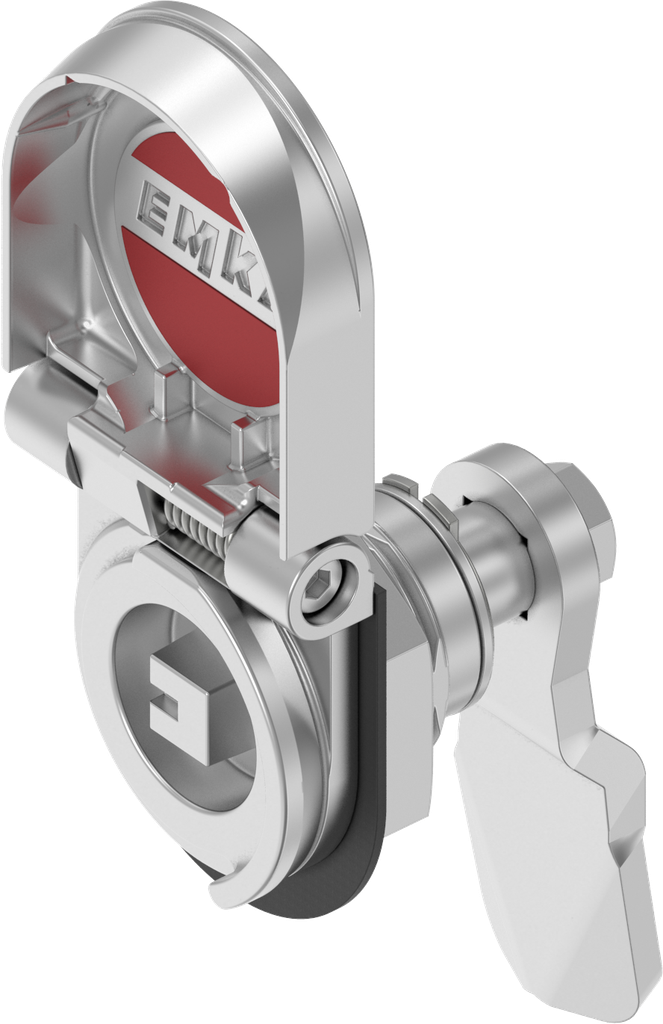

Compression latch with optical opening indicator and cover with red pad printing, right version, Stainless steel AISI 316; 1500-U776-01REPH

https://www.emka.com/products/1500-u776-01reph https://www.emka.com/web/image/product.template/232750/image_1920?unique=564970e

with stainless steel nut


    This combination does not exist.

    Inside the sealing Grounding possible Protection class IP 69K DIN EN 45545-3 class E60 (fire protection) DIN EN 61373 (shock and vibration testing) Right


    Product Benefits:

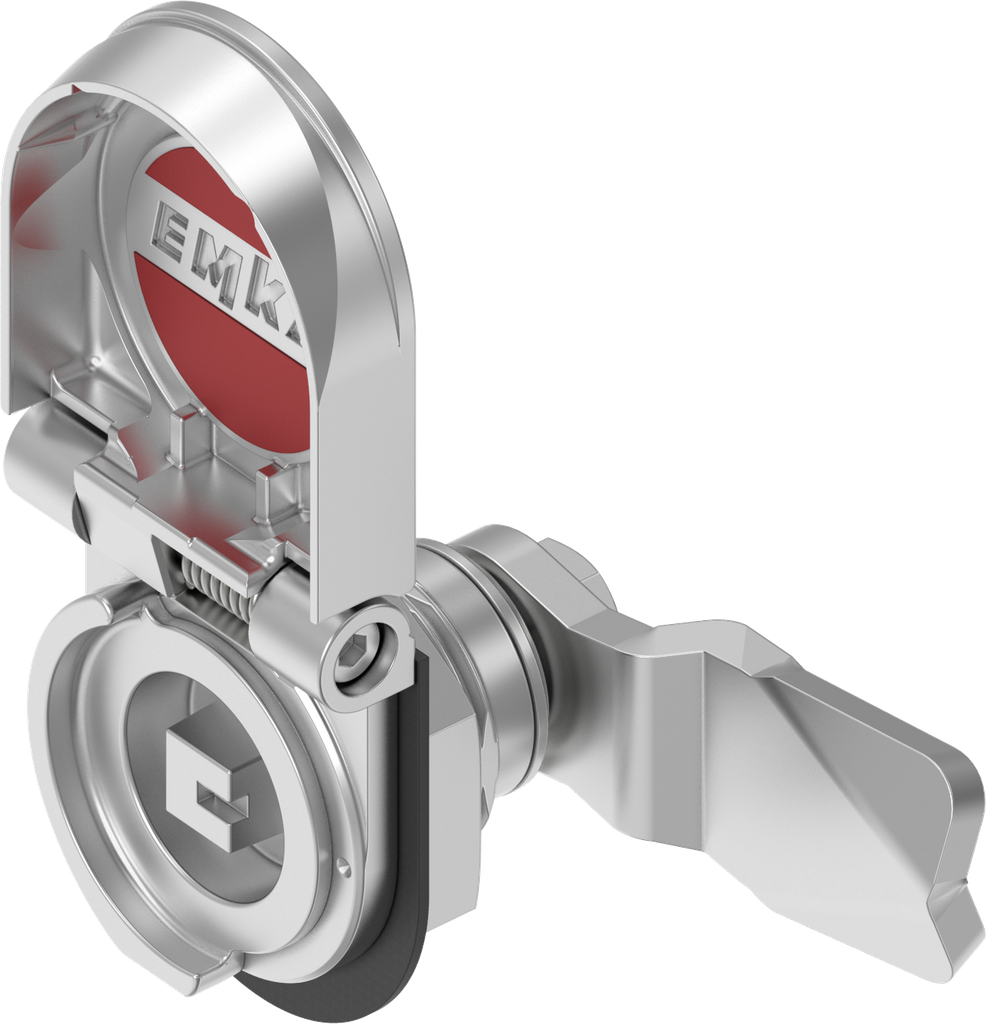

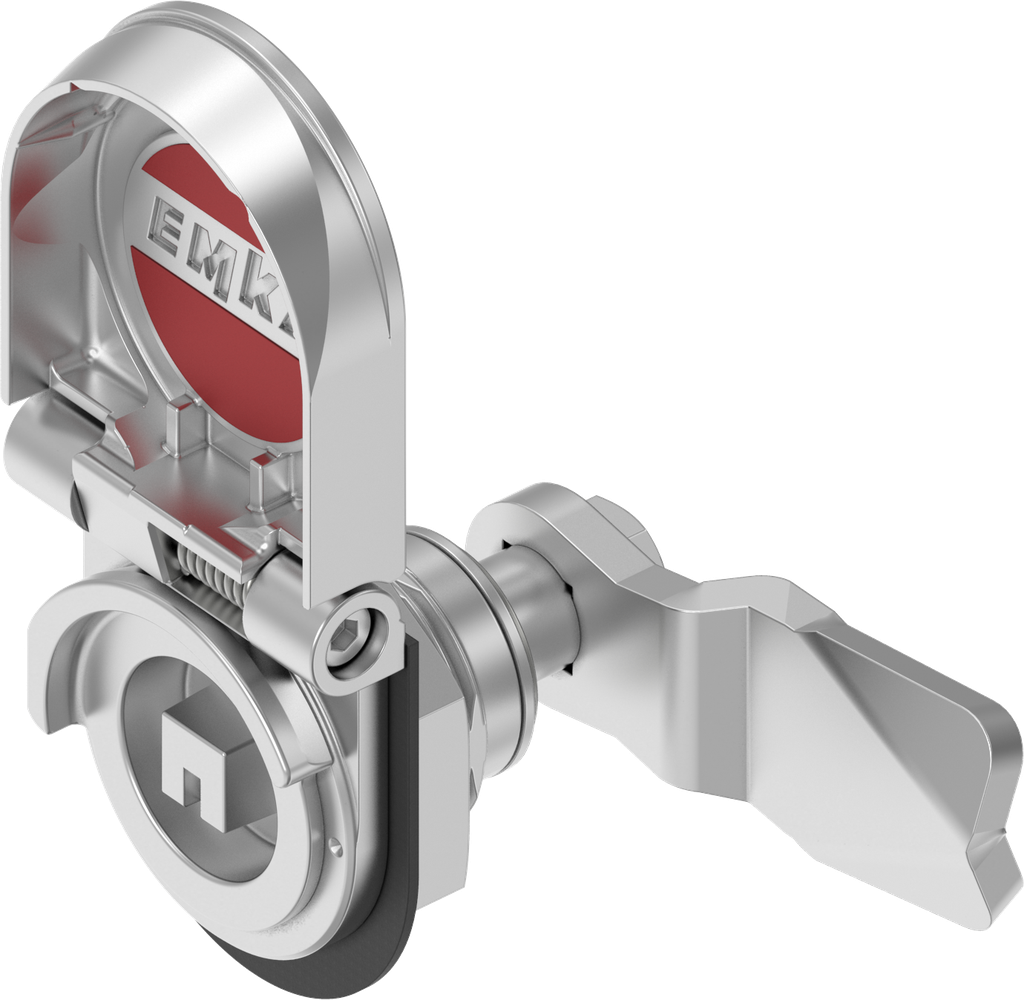

    • Visual opening indicator, clearly visible due to 90° open flap when uncompressed
    • The flap closes automatically when compressed
    • Integrated dust cap
    • The flat seal cushions the flap and prevents damage to the door
    • Standard cut out Program 1500
    • Patent pending

    Product information:

    The compression latch is designed to be vibration-proof as such.
    Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.

    Internal Reference: 1500-U776-01REPH
    Product Type: Quarter turn
    Program: 1500
    Catalog sheet: 1D-420
    Material of the module : Stainless steel AISI 316
    Number of Possible Locking Points: 1 point
    Article with property rights: Yes
    Fixing type of housing : nut fixing
    Type of actuation: Square 8 with marking
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Housing Head Shape: Special form

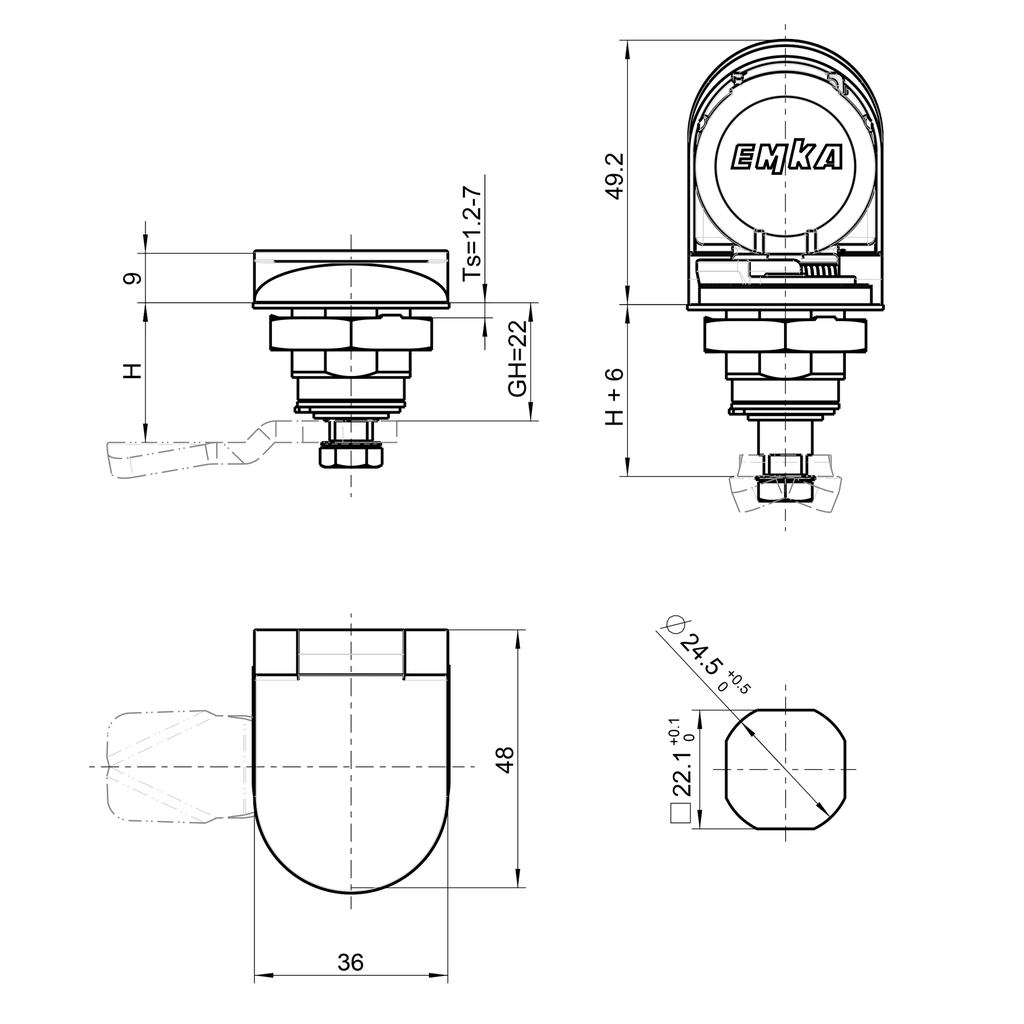

    Housing Head Size: 48 x 36 x 9 mm
    GH Mass: 22 mm
    Compression Value : 6 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 7 mm
    Locking set: Insert
    Door Version : Right
    Locking components: Cam
