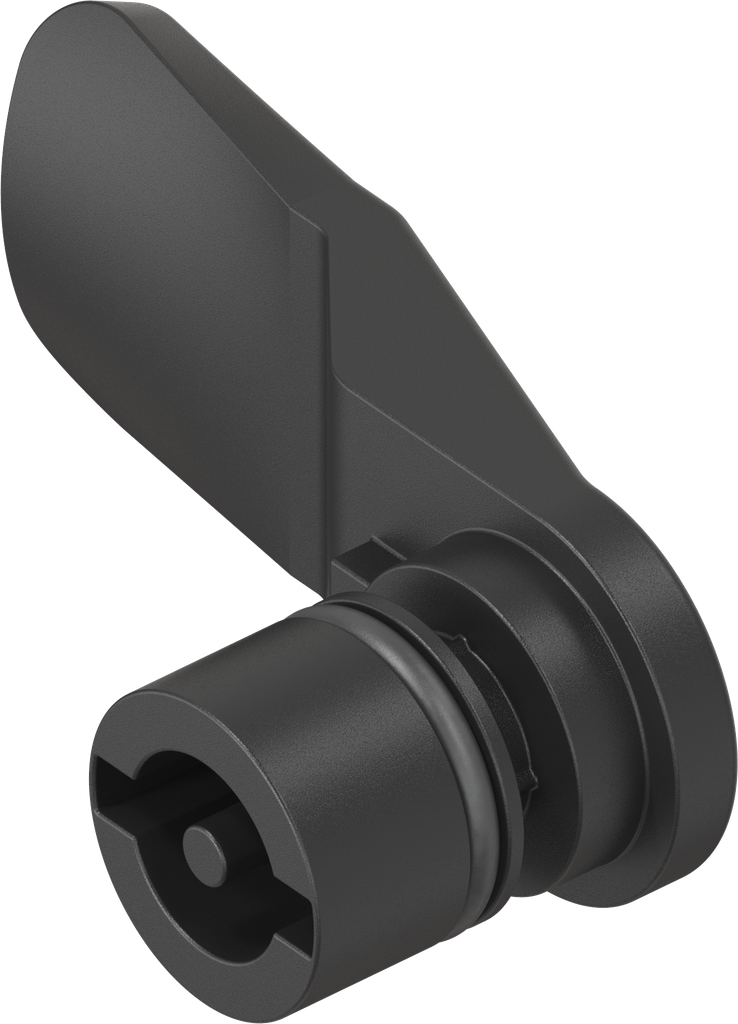

Insert cam double bit 3 with O-ring, Polyamide GF black; 1500-B156-H22

https://www.emka.com/products/1500-b156-h22 https://www.emka.com/web/image/product.template/65334/image_1920?unique=564970e


    This combination does not exist.

    Protection class IP 65


    Product information:

    Further insert cams with other inserts or other H- and L-dimensions on request.

    Internal Reference: 1500-B156-H22
    Product Type: Insert cam
    Material: Polyamide GF
    Program: 1500
    Surface: black
    Number of Possible Locking Points: 1 point
    Type of actuation: Double bit 3

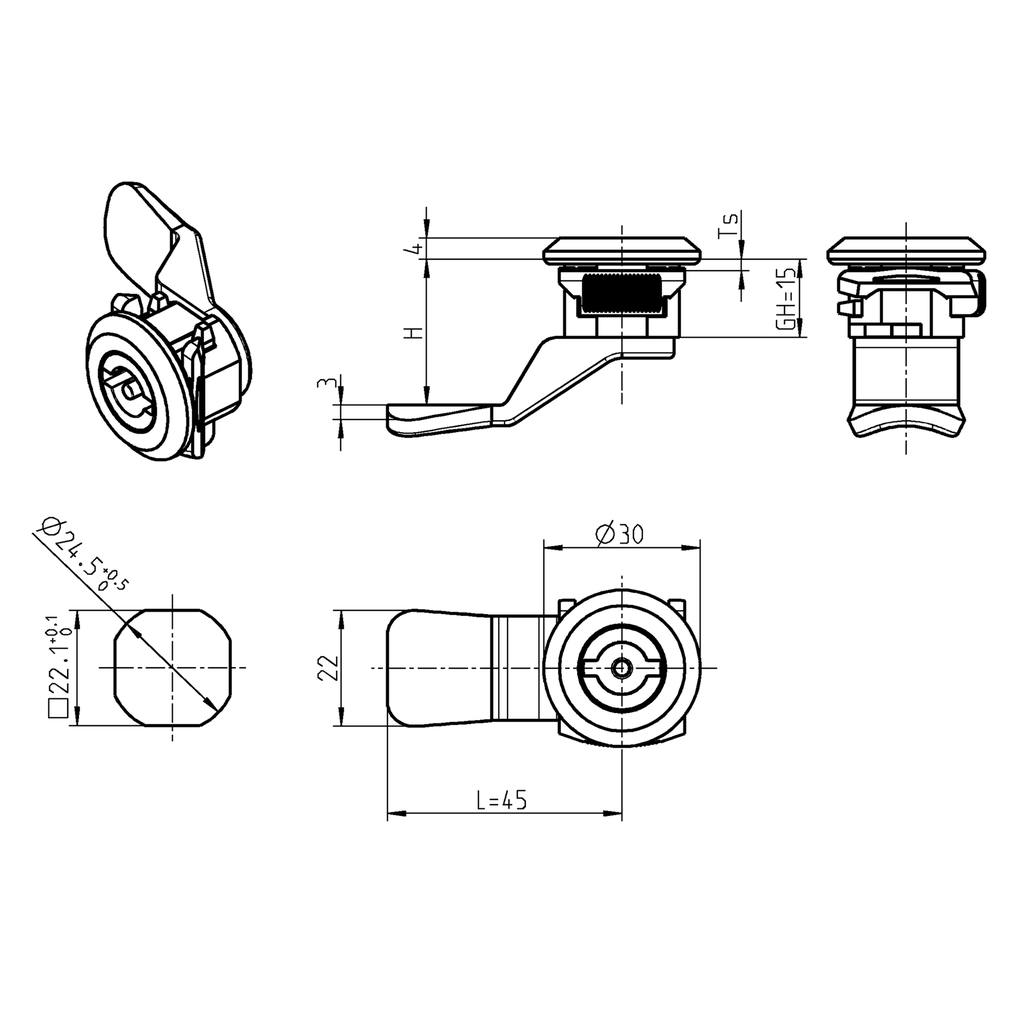

    For GH measure: 15 mm
    Compression Value : 3 mm
    Offset: positive
    offset of cam: 7 mm
    Dimension L: 45 mm
    O-ring position: Slot

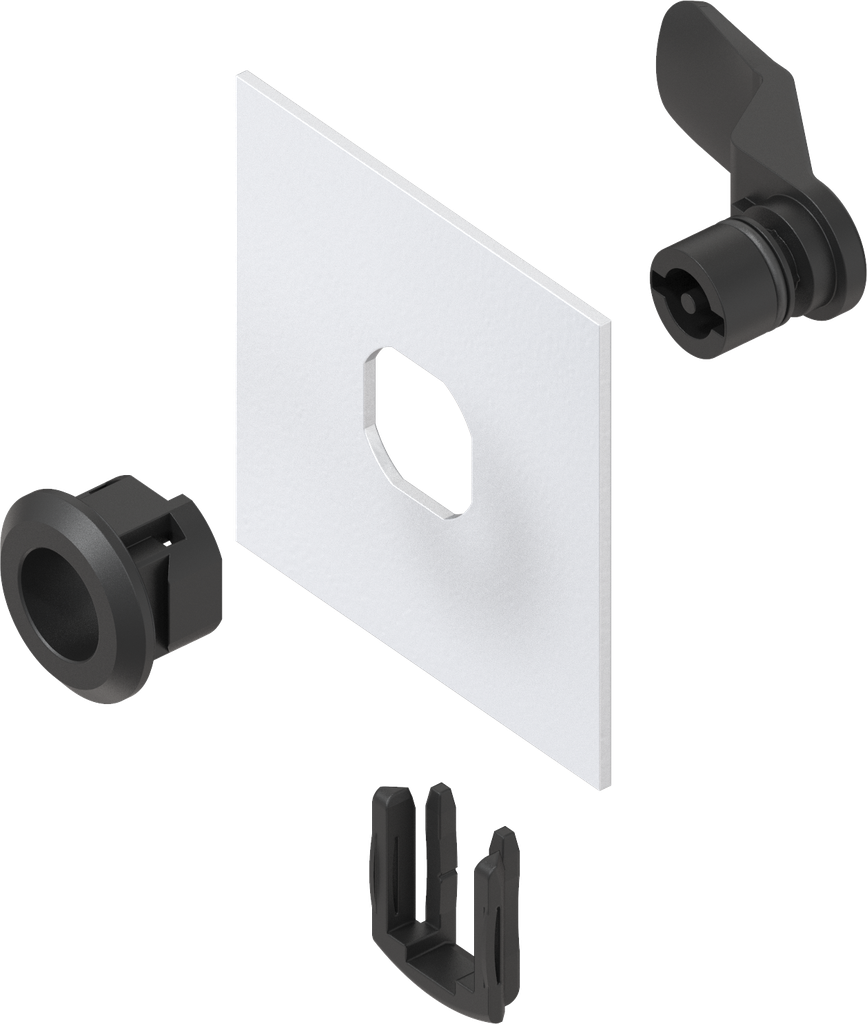

    Locking set: Insert
