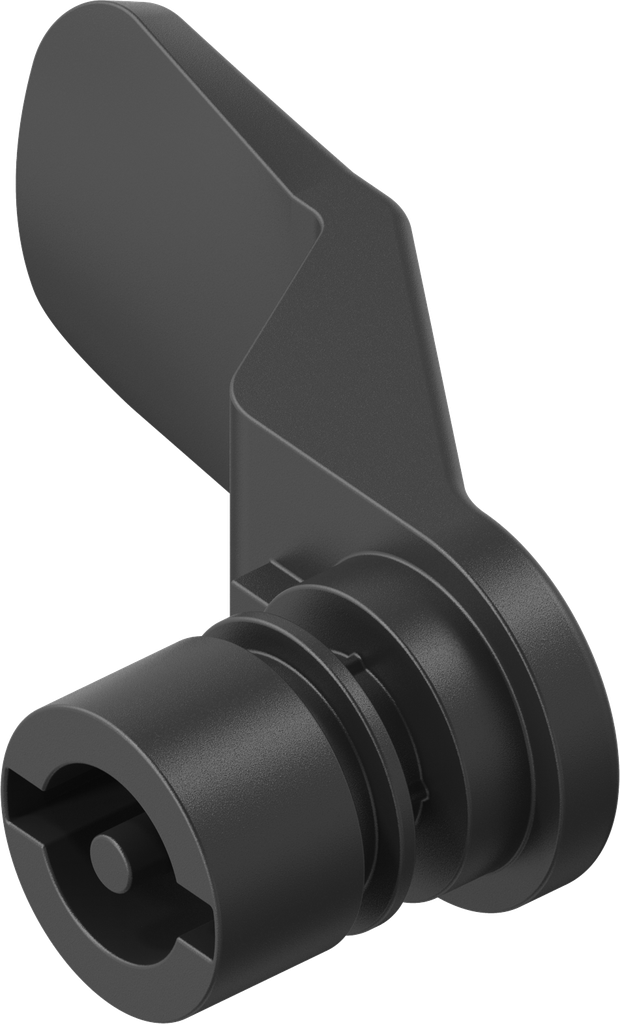

Insert cam double bit 3, Polyamide GF black; 1500-156-H28

https://www.emka.com/products/1500-156-h28 https://www.emka.com/web/image/product.template/232654/image_1920?unique=e8209a7


    This combination does not exist.



    Internal Reference: 1500-156-H28
    Product Type: Insert cam
    Material: Polyamide GF
    Program: 1500
    Surface: black
    Catalog sheet: 1D-140
    Number of Possible Locking Points: 1 point
    Type of actuation: Double bit 3
    For GH measure: 15 mm
    Compression Value : 3 mm
    Offset: positive
    offset of cam: 13 mm
    Dimension L: 45 mm
    O-ring position: Slot
    Locking set: Insert
    No Specifications
    View All Products
    Keys
    Housing
    Locking clip
    Here you can find the product data sheets and CAD files of this product
