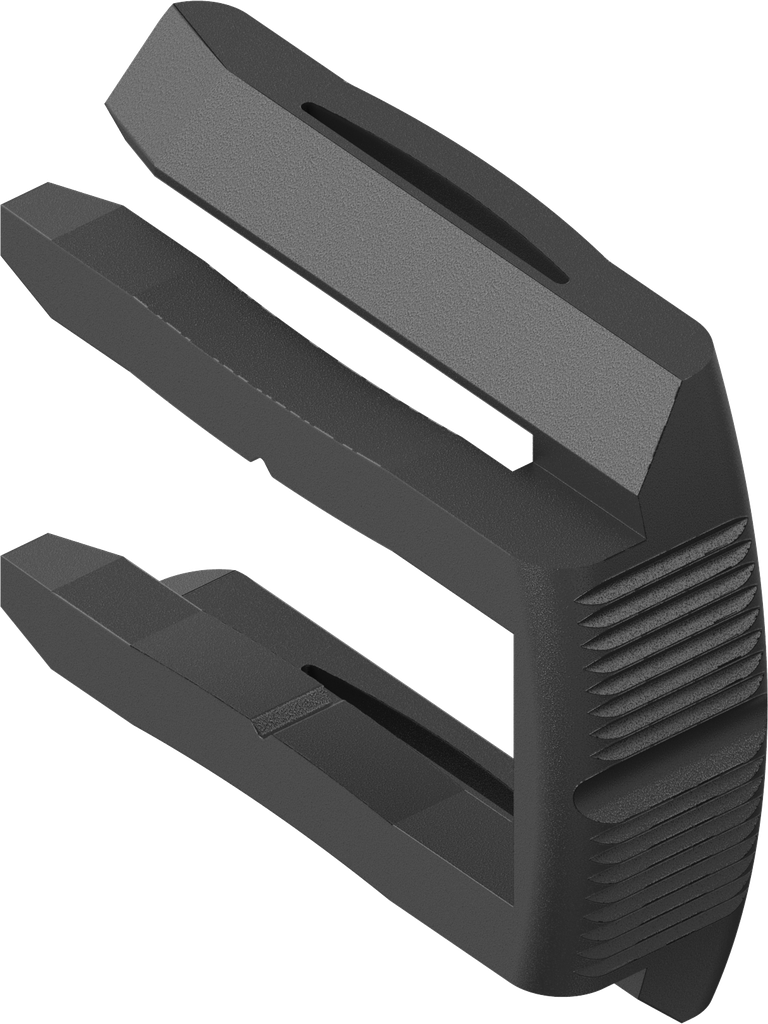

Locking clip for housing with insert cam, Polyamide GF black; 1500-02-15

https://www.emka.com/products/1500-02-15 https://www.emka.com/web/image/product.template/65318/image_1920?unique=f103bbb

for Ts = 1.5 - 2.0 mm


    This combination does not exist.

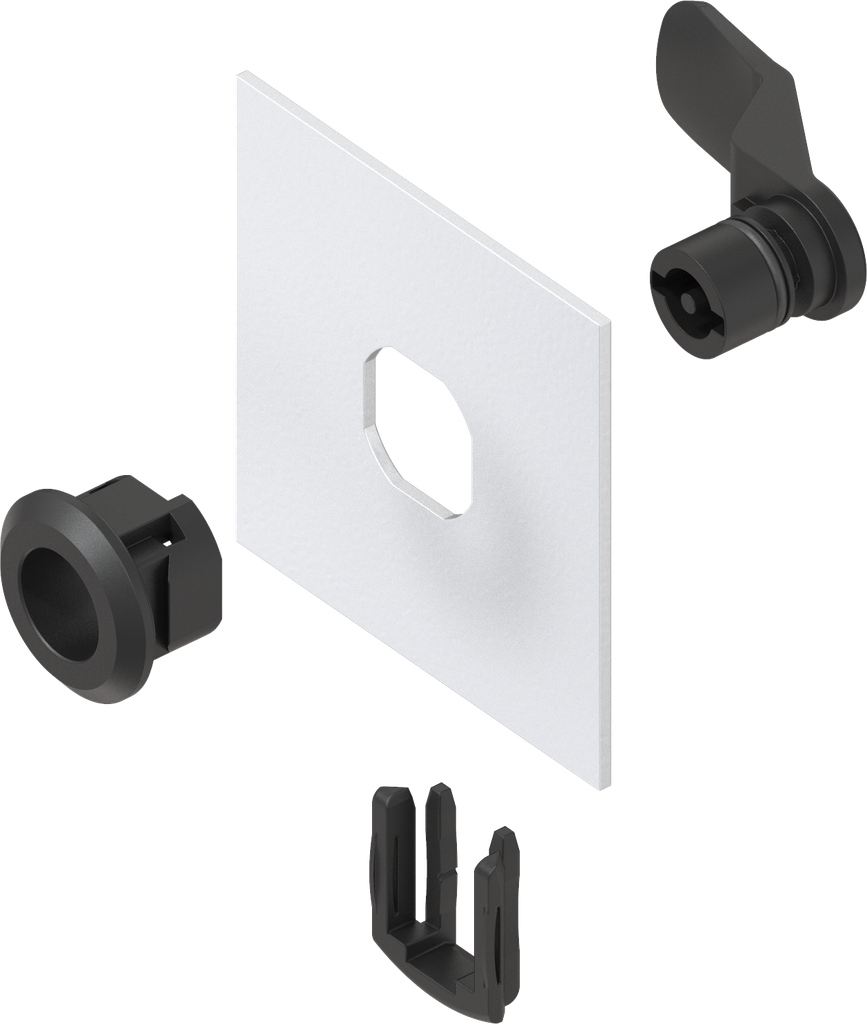

    Assembly instruction:

    Ts = 1.5 - 2.0 mm incl. surface coating

    Internal Reference: 1500-02-15
    Product Type: Locking clip
    Material: Polyamide GF
    Program: 1500
    Surface: black
    Catalog sheet: 1D-140
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    No Specifications
    View All Products
    Housing

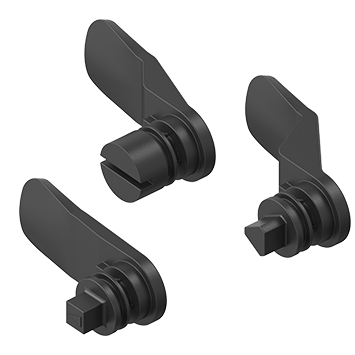

    Insert cam
    Here you can find the product data sheets and CAD files of this product
