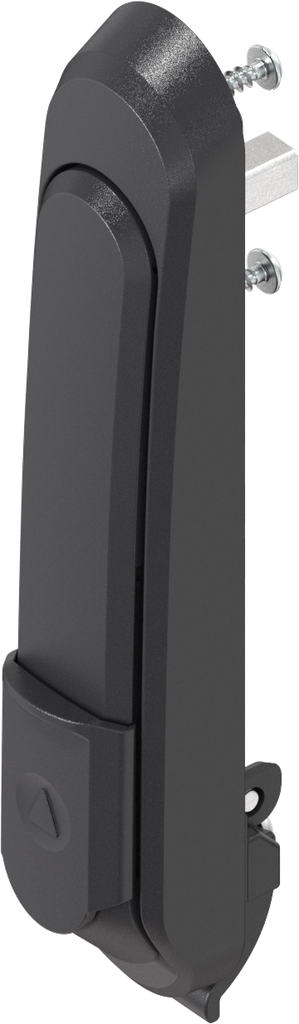

Swinghandle with hook and locking set for profile half cylinder 40 mm (A = 30 mm), Polyamide GF black; 1325-U1-01

https://www.emka.com/products/1325-u1-01 https://www.emka.com/web/image/product.template/65249/image_1920?unique=41a0458


    This combination does not exist.

    Inside the sealing Outside the sealing Foamed seal Protection class IP 40 Left Right


    Key features:

    • Optionally available with polyamide or steel cam suitable for many standard cams
    • Closing force with cam of steel matches EMKA standard quarter turn of zinc die-cast
    • Smooth operation (no inner rotation due to design)
    • Self-sealing design for highest protection requirements (design immanent)
    • Increased safeguarding against overwinding
    • Standard cut out
    • Patented

    Assembly instruction:

    When cam is used, adapter for cam 1325-U1-01 is required.

    Internal Reference: 1325-U1-01
    Product Type:
    Program:
    Catalog sheet: 3BA-220
    Material of the module :
    Surface of the module:
    Dimension A, Variable: False
    Door return variable: Yes
    Number of Possible Locking Points: False
    Number of Locking:
    Article with property rights: Yes
    Attachment of the trough:
    Mounting Positions : False
    Foamed gasket: Yes
    Consistent convenient swinging: Yes
    Handle Art(1):
    Integrated scratch protection: Yes
    Without locking set: False
    Suitable for door thickness from: 0.80 mm
    Suitable for door thicknesses up to: 2 mm
    Locking set: False
    locking set cover: Yes
    Swivel Handle:
    Pan Handle Length:
    Door revolvable / reversible: Yes
    Door Version : False
    Locking components: False
    No Specifications
