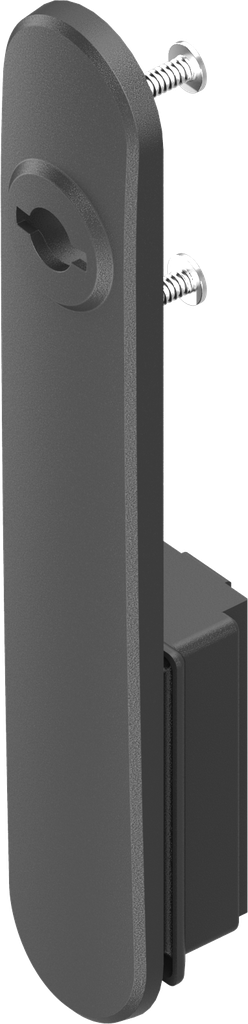

Escutcheon 1321 with cap, Polyamide GF black
Escutcheon 1321 with cap, Polyamide GF black
Flat rod 14 x 3 with notch for small bending area bottom, Steel zinc-plated
Flat rod 14 x 3 with notch for small bending area bottom, Steel zinc-plated

Escutcheon 1321 with cap, Polyamide GF black; 1321-U4

https://www.emka.com/products/1321-u4 https://www.emka.com/web/image/product.template/232137/image_1920?unique=e8209a7


    This combination does not exist.

    Inside the sealing Outside the sealing Grounding possible Protection class IP 65


    Internal Reference: 1321-U4
    Product Type: Escutcheon
    Program: 1321
    Catalog sheet: 3BA-120
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, More than 4 points available on request
    Mounting Positions : Inside the sealing,Outside the sealing
    Grounding possible: Yes
    Suitable for door thickness from: 1 mm
    Suitable for door thicknesses up to: 2 mm
    Locking means key tag: Insert double bit
    Key Tag Size: long
    Locking components: Rod control,Bearing bush with cam
    No Specifications
    View All Products
    Rod control
    Insert
    Bearing bush
    Here you can find the product data sheets and CAD files of this product
