Product Benefits:
The swinghandle has successfully passed the RC2 DIN EN 1630 test The test protection class IK 10 according to DIN EN 50102 was successfully passed Integrated scratch protection prevents surface damage (handle / dish)Product information:
RC2 DIN EN 1630 is achieved by profile half-cylinder according to DIN EN 18252-BZ or DIN EN 1303 with resistance class 2 with protection against drilling and pulling. The profile half-cylinder should be certified and monitored by PIV CERT or alternatively by a certifying body according to DIN EN ISO/IEC 17065. Note: Without profile half cylinder opening is only possible with key 1004-44-01AA. Profile half cylinder: 40 mm and 45 mm; set locking cam to 6 or 7 o'clock. At 3 or 5 o'clock no push-to-close Sealable: Yes Application range: Indoor and outdoor at -30°C up to +80 °C Release: By applying a 3 - 3.6 V DC signal Wake-up function: Yes, by push button Indicator: via LED Remote monitoring: via built-in reed switch Closing: Press the handle into the recess until the locking mechanism engages. Emergency opening: optionally with 40 mm or 45 mm profile half-cylinder Ts > 6 mm – 8 mm upon request A reed contact can be used to detect whether the handle is open. The push button can be used for interaction in any form, as can the LED for indication in any manner This swivel handle can be retrofitted with a locking cylinderAssembly instruction:
In case of mechanical and the electromechanical version, only the profile half cylinder according to DIN EN 18252 and DIN EN 1303 can be used.
Internal Reference:
1317-U50
Standards:
Protection class IP 65, DIN EN 1630 class RC2 / WK2 (resistivity), DIN EN 50102 - IK10 (shock resistance), DIN EN 61373 (shock and vibration testing)
Barcode:
1317-U00050-0000000
Product Type:
Swinghandle, Lifthandle
Program:
1317

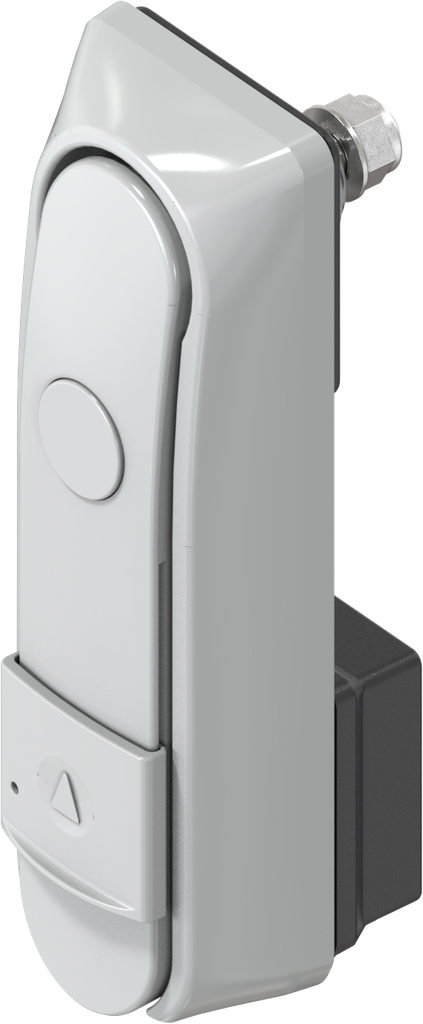

Material of the module :
Zinc die
Surface of the module:
grey powder-coated RAL 7038
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point
Number of Locking:
One locking set and electromechanical version
Attachment of the trough:
Screw-on cap IP 65
Mounting Positions :
Inside the sealing
Electromechanical Unlocking :
3 - 3.6 V
Foamed gasket:
Yes
Handle Art(1):
Swinghandle
Integrated scratch protection:
Yes
Emergency opening:
Yes

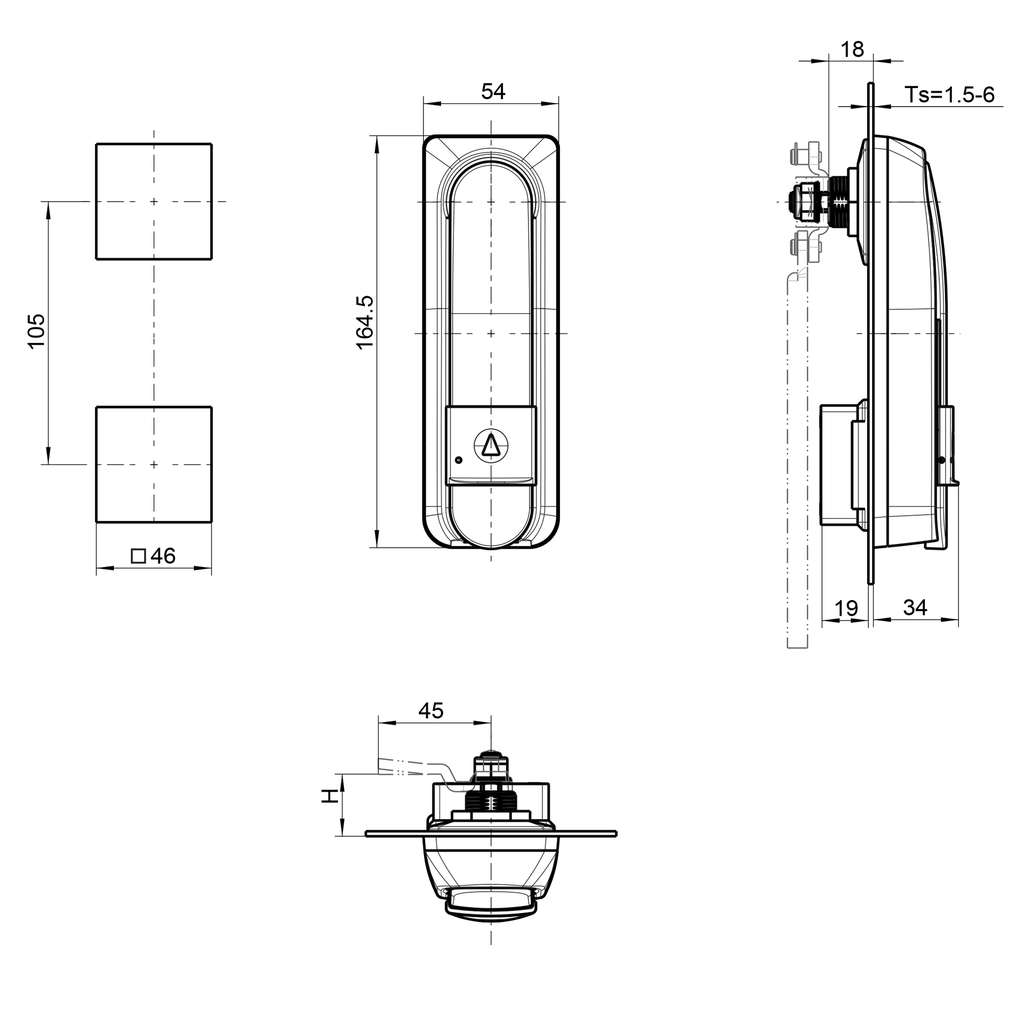

Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
6 mm
Sealable:
Yes
Test according to RC2 DIN EN 1630 (WK2 DIN V ENV 1630):
Yes
Test rating IK 10 following DIN EN 50102:
Yes
Locking set:
Profile half cylinder A = 30,Profile half cylinder A = 35
locking set cover:
Yes
Key Removable:
Key can be withdrawn in any handle position
Shock and vibration testing according to DIN EN 61373:
Yes
Swivel Handle:
34 mm
Pan Handle Length:
165 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Cam
