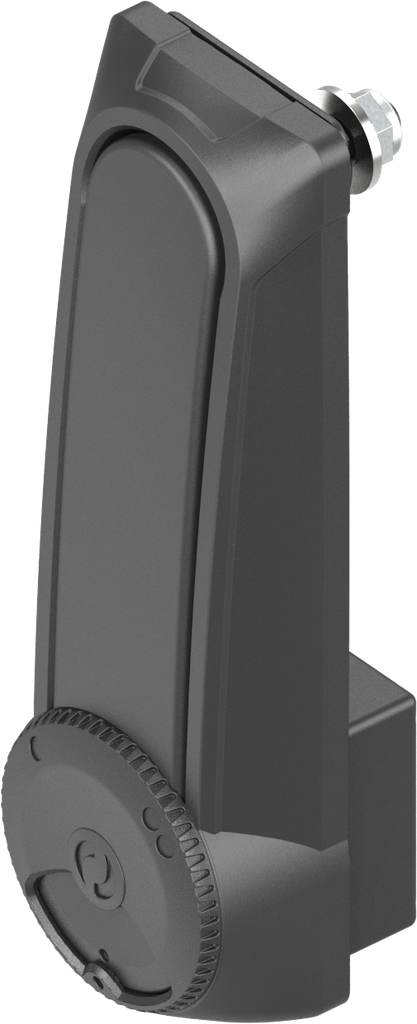

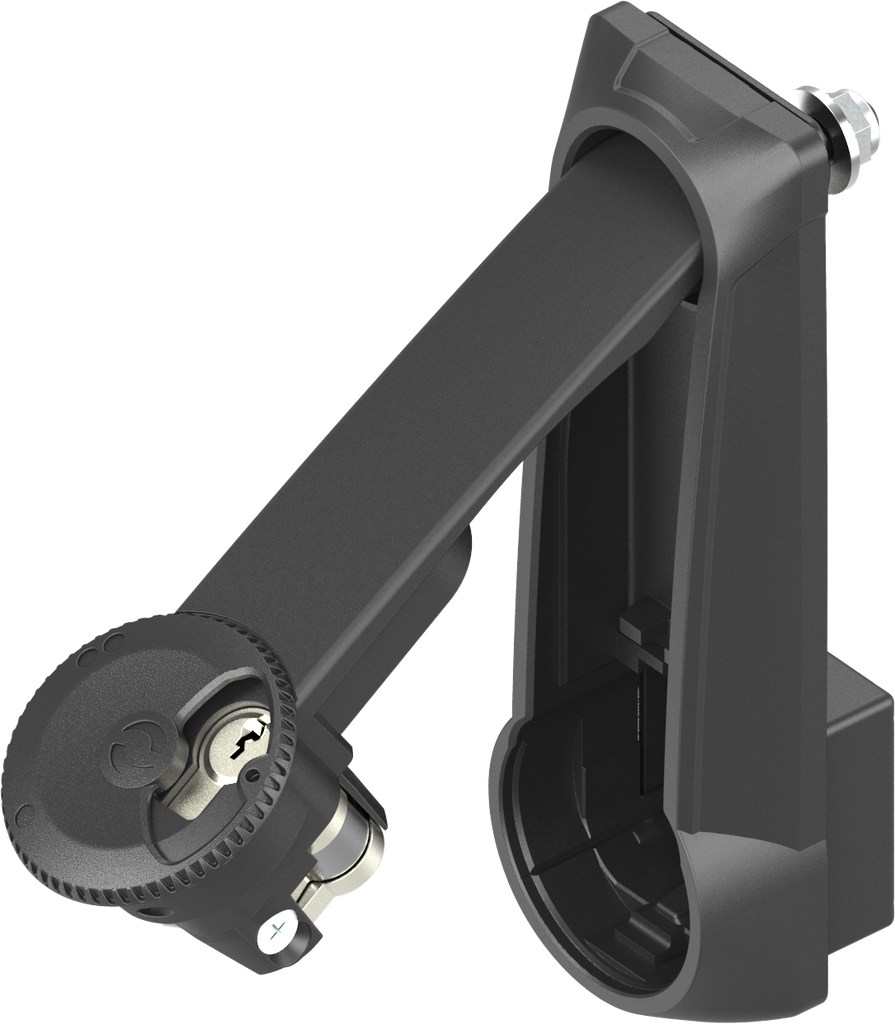

Double cylinder swinghandle "long" for profile half cylinder 40 mm and 45 mm (A = 30 mm and 35 mm), Polyamide GF black; 1317-U321

https://www.emka.com/products/1317-u321 https://www.emka.com/web/image/product.template/65233/image_1920?unique=e8209a7

for cam


    This combination does not exist.

    Inside the sealing Foamed seal Left Right


    Product information:

    For door gauge (Ts) > 6 mm standard round rods cannot be used!

    Attention: when using the adapter ring the max. door gauge (Ts) will be 6 mm

    Profile half cylinder not in scope of delivery

    Akeneo Note:

    Ts > 6 - 12 mm on request

    Internal Reference: 1317-U321
    Product Type: Swinghandle, Lifthandle
    Program: 1317
    Catalog sheet: 3AB-160
    Material of the module : Polyamide GF
    Surface of the module: black
    Door return variable: Yes
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Number of Locking: Two locking sets, 1-key-operation
    Article with property rights: Yes
    Attachment of the trough: Screw-on cap IP 65
    Mounting Positions : Inside the sealing
    Foamed gasket: Yes
    Handle Art(1): Swinghandle
    Integrated scratch protection: Yes
    Without locking set: Profile half cylinder, blind plug without spring-loaded ball
    Suitable for door thickness from: 2 mm
    Suitable for door thicknesses up to: 12 mm
    Sealable: Yes
    Locking set: Profile half cylinder A = 30,Profile half cylinder A = 35
    locking set cover: Yes
    Key Removable: Key can be withdrawn in any handle position
    Swivel Handle: 36 mm
    Pan Handle Length: 190 mm
    Door Version : Left,Right
    Locking components: Cam
