Swinghandle "short" with RC2, with electromechanical release and for profile half cylinder 40 mm or 45 mm (A = 30 mm or 45 mm), Zinc die grey powder-coated RAL 7038
Swinghandle "short" with RC2, with electromechanical release and for profile half cylinder 40 mm or 45 mm (A = 30 mm or 45 mm), Zinc die grey powder-coated RAL 7038
Swinghandle "short" with RC2 for profile half cylinder 40 mm or 45 mm (A = 30 mm or 45 mm) with additional locking cam position 30°, Zinc die grey powder-coated RAL 7038
Swinghandle "short" with RC2 for profile half cylinder 40 mm or 45 mm (A = 30 mm or 45 mm) with additional locking cam position 30°, Zinc die grey powder-coated RAL 7038

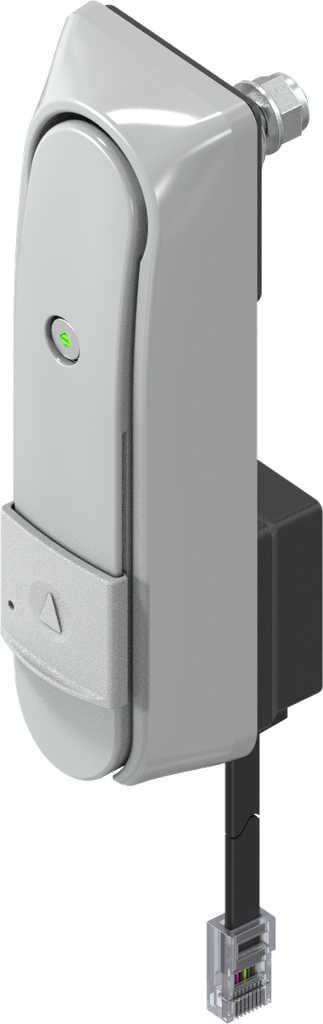

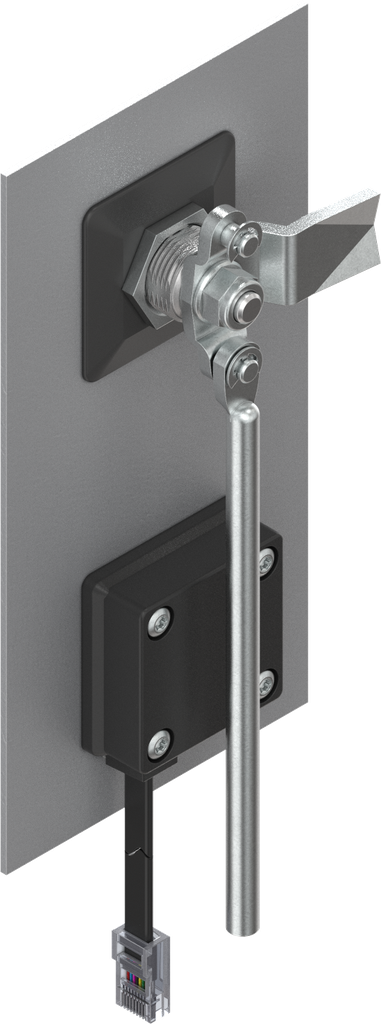

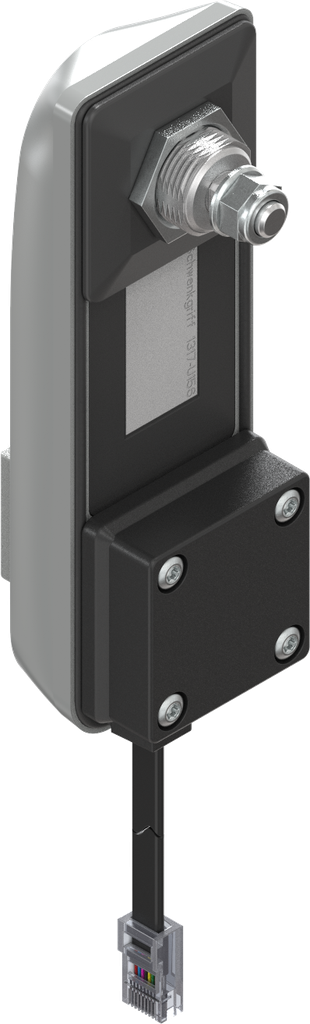

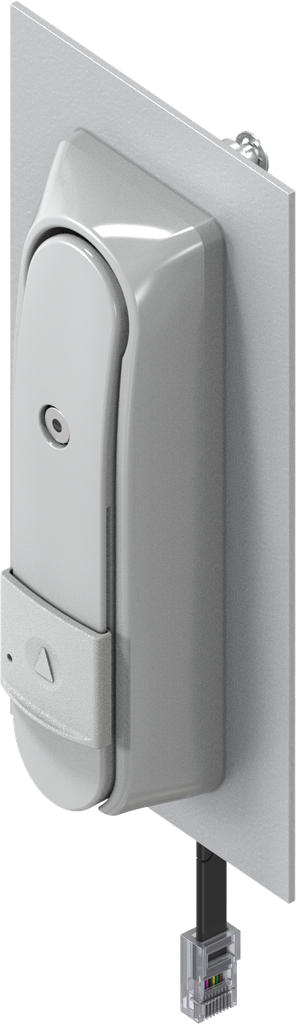

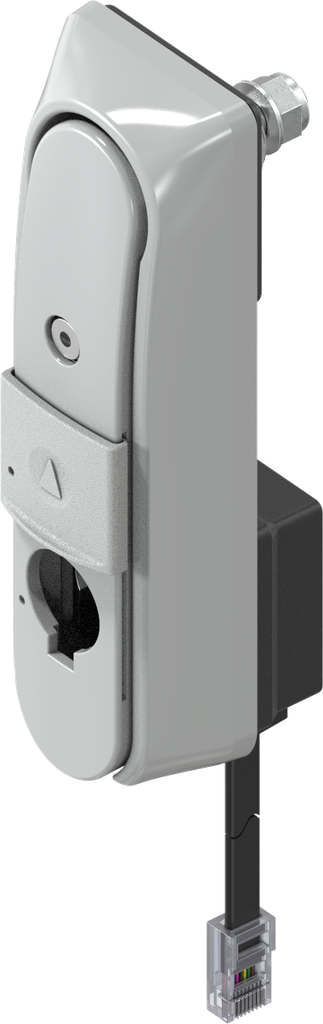

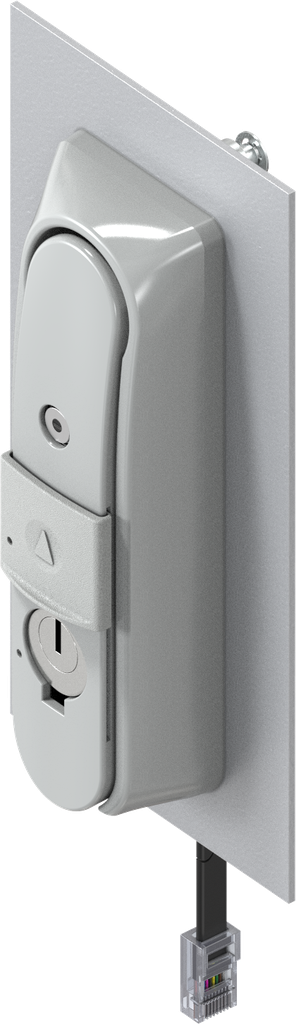

Swinghandle "short" with RC2, with electromechanical release and for KABA type 1514, Zinc die grey powder-coated RAL 7038; 1317-U156-BO

https://www.emka.com/products/1317-u156-bo https://www.emka.com/web/image/product.template/348711/image_1920?unique=564970e

for cam


    This combination does not exist.

    Inside the sealing Foamed seal Protection class IP 65 DIN EN 61373 (shock and vibration testing) DIN EN 1630 class RC2 / WK2 (resistivity) DIN EN 50102 - IK10 (shock resistance) Left Right


    Product Benefits:

    • The swinghandle has successfully passed the RC2 DIN EN 1630 test The test protection class IK 10 according to DIN EN 50102 was successfully passed Integrated scratch protection prevents surface damage (handle / dish)
    • The test protection class IK 10 according to DIN EN 50102 was successfully passed
    • Integrated scratch protection prevents surface damage (handle / dish)

    Product information:

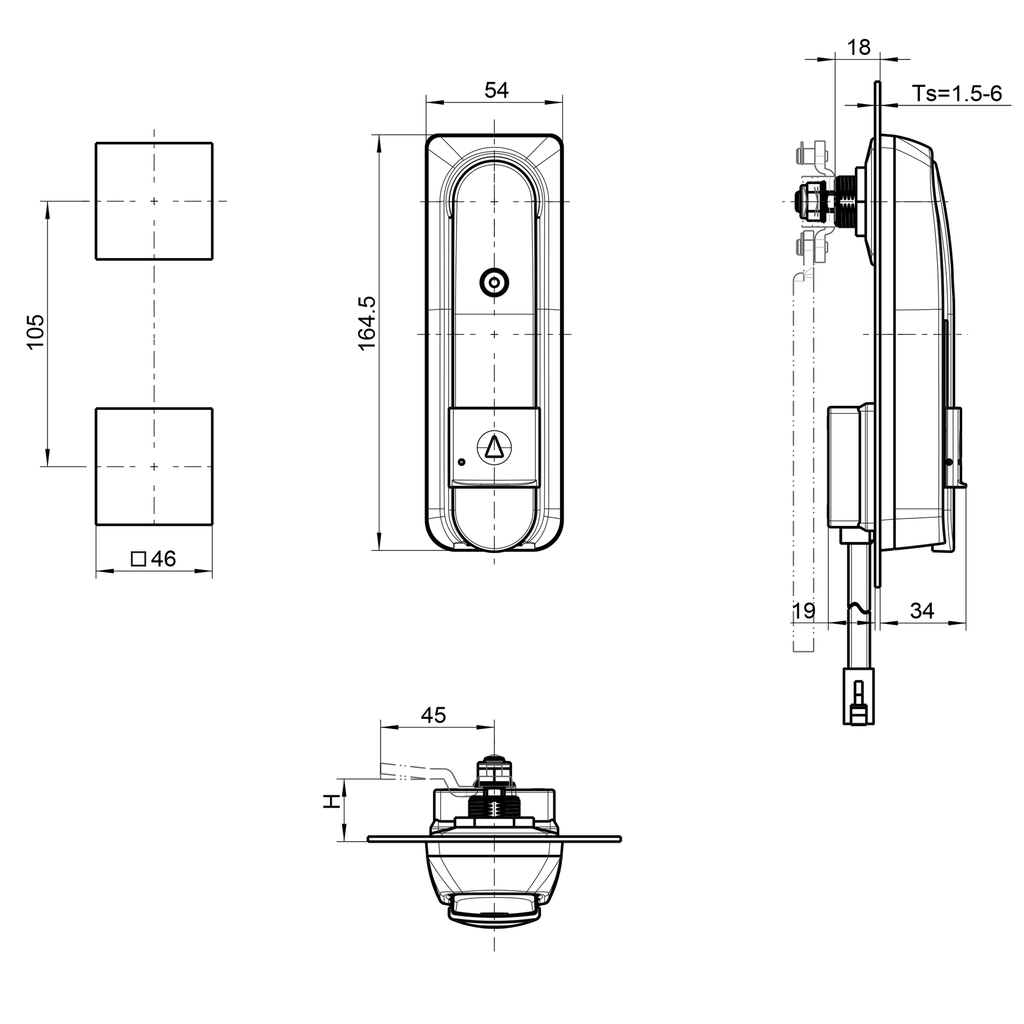

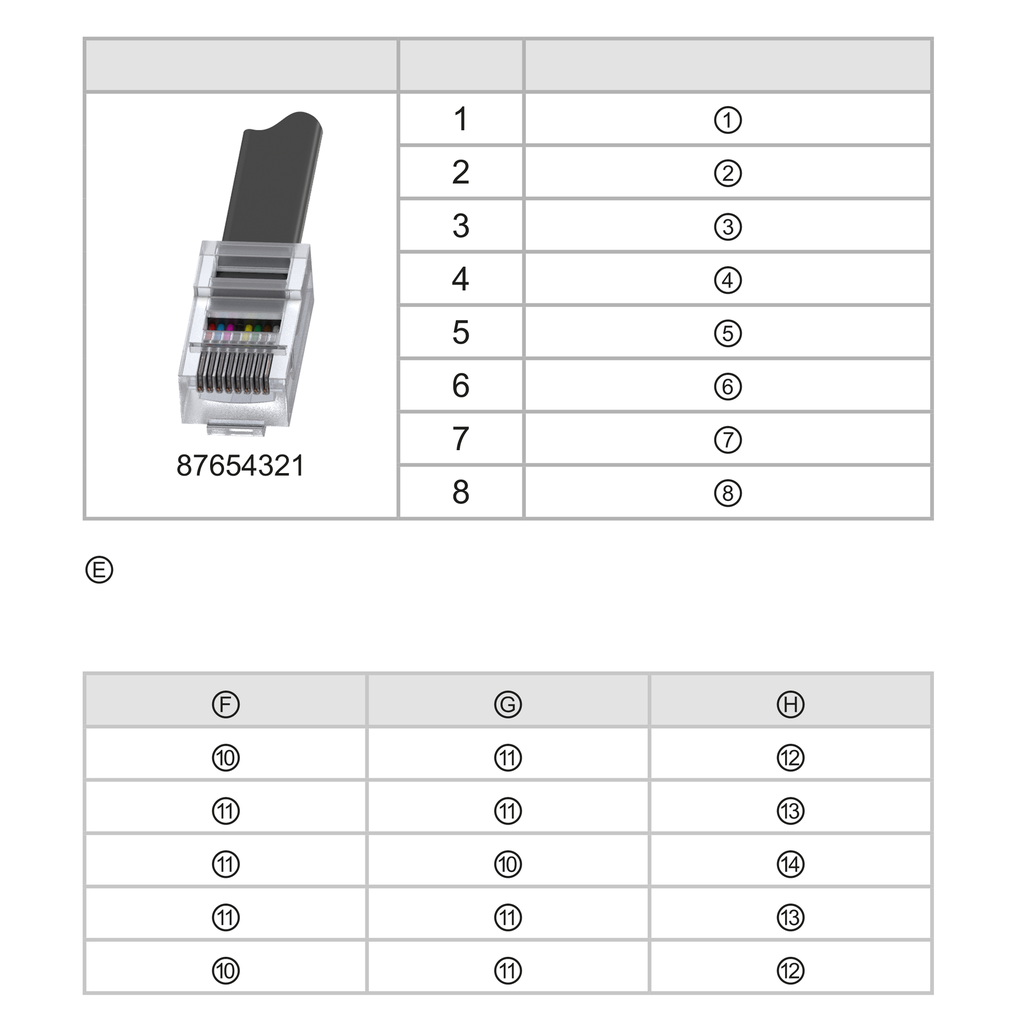

    1 = white = motor V + 2 = brown = V - 3 = green = LED V + 4 = yellow = reed contact 5 = grey = - 6 = pink = motor position 1 7 = blue = motor position 2 8 = red = push button E = The pins 4, 6, 7, 8 must be provided with a pull-up resistor, pin 5 can be provided with a pull-up resistor. The motor must be directly controlled by a higher-level controller and can only be moved in one direction. To set the lock in the required status (locked/unlocked), not only the motor must be controlled, but also the motor position switches must be interrogated and evaluated. The following table serves to identify the corresponding status. F = motor position 1 G = motor position 2 H = handle status 10 = logical 0 11 = logical 1 12 = locked 13 = not defined 14 = unlocked RC2 DIN EN 1630, is achieved with profily half cylinder according to DIN EN 18252-BZ or DIN EN 1303 with the attacking resistance class 2 with protection against drilling and pulling. The profile half-cylinder should be certified and monitored by PIV CERT or alternatively by a certifying body according to DIN EN ISO/IEC 17065. Note: Without profile half cylinder opening is only possible with key 1004-44-01AA. Profile half cylinder: 40 mm and 45 mm; Set locking cam to 6 or 7 o'clock. At 3 or 5 o'clock no push-to-close Sealable: Yes Application range: Indoor and outdoor at -30°C up to +80°C Connection type: Plug RJ45 with connection cable (4 m) Release: By applying a 3 - 3.6 V DC signal Wake-up function: Yes, by push button Display: LED Remote monitoring: By built-in reed contact Locking: Push handle into recess until locking mechanism engages Emergency opening: Optional with 40 mm or 45 mm profile half cylinder Ts > 6 mm - 8 mm on request Whether the handle is open can be queried via a reed contact. The push button can be used for interaction in any form, as well as the LED for indication in any way.

    RC2 DIN EN 1630, is achieved with profily half cylinder according to DIN EN 18252-BZ or DIN EN 1303 with the attacking resistance class 2 with protection against drilling and pulling. The profile half-cylinder should be certified and monitored by PIV CERT or alternatively by a certifying body according to DIN EN ISO/IEC 17065.

    Note: Without profile half cylinder opening is only possible with key 1004-44-01AA.
    Profile half cylinder: 40 mm and 45 mm; Set locking cam to 6 or 7 o'clock. At 3 or 5 o'clock no push-to-close
    Sealable: Yes
    Application range: Indoor and outdoor at -30°C up to +80°C
    Connection type: Plug RJ45 with connection cable (4 m)
    Release: By applying a 3 - 3.6 V DC signal
    Wake-up function: Yes, by push button
    Display: LED
    Remote monitoring: By built-in reed contact
    Locking: Push handle into recess until locking mechanism engages
    Emergency opening: Optional with 40 mm or 45 mm profile half cylinder
    Ts > 6 mm - 8 mm on request

    Whether the handle is open can be queried via a reed contact.
    The push button can be used for interaction in any form, as well as the LED for indication in any way.

    Assembly instruction:

    In case of the mechanical and the electromechanical model, only type KABA 1514 can be used.

    Internal Reference: 1317-U156-BO
    Product Type: Swinghandle, Lifthandle
    Program: 1317
    Catalog sheet: 3AB-180
    Material of the module : Zinc die
    Surface of the module: grey powder-coated RAL 7038
    Door return variable: Yes
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Number of Locking: One locking set and electromechanical version
    Attachment of the trough: Screw-on cap IP 65
    Mounting Positions : Inside the sealing
    Electromechanical Unlocking : 3 - 3.6 V
    Foamed gasket: Yes
    Handle Art(1): Swinghandle
    Integrated scratch protection: Yes
    Emergency opening: Yes
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Sealable: Yes
    Test according to RC2 DIN EN 1630 (WK2 DIN V ENV 1630): Yes
    Test rating IK 10 following DIN EN 50102: Yes
    Locking set: KABA type 1514
    Key Removable: Key can be withdrawn in any handle position
    Shock and vibration testing according to DIN EN 61373: Yes
    Swivel Handle: 34 mm
    Pan Handle Length: 165 mm
    Door revolvable / reversible: Yes
    Door Version : Left,Right
    Locking components: Cam
    No Specifications
