Swinghandle with push button and round cylinder, keyed EK 333, Zinc die black powder-coated
Swinghandle with push button and round cylinder, keyed EK 333, Zinc die black powder-coated
Swinghandle blind with push button, Zinc die black powder-coated
Swinghandle blind with push button, Zinc die black powder-coated

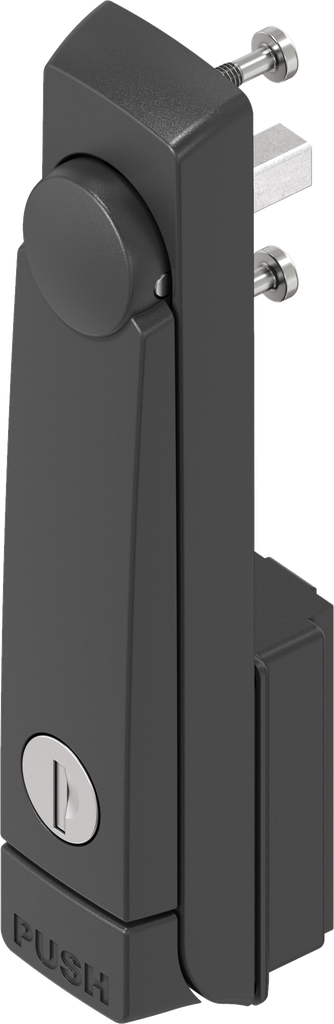

Swinghandle with push button and round cylinder, keyed different, Zinc die black powder-coated; 1225-U303

https://www.emka.com/products/1225-u303 https://www.emka.com/web/image/product.template/230112/image_1920?unique=e8209a7


    This combination does not exist.

    Inside the sealing Outside the sealing Grounding possible Foamed seal Protection class IP 65 Left Right


    Product information:

    On request: Cap without foamed seal for small bending area

    Internal Reference: 1225-U303
    Product Type: Swinghandle, Lifthandle
    Program: 1225
    Catalog sheet: 3G-260
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, More than 4 points available on request
    Number of Locking: One locking set and push button
    Attachment of the trough: Screw-on cap IP 65
    Mounting Positions : Inside the sealing,Outside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes
    Consistent convenient swinging: Yes
    Handle Art(1): Swinghandle
    Suitable for door thickness from: 1 mm
    Suitable for door thicknesses up to: 2 mm
    Round Cylinder Type: EMKA EK, differently keyed
    Locking set: Round cylinder,Push button
    Key Removable: Key can be withdrawn in any handle position
    Swivel Handle: 22 mm
    Pan Handle Length: 159 mm
    Door revolvable / reversible: Yes
    Door Version : Left,Right
    Locking components: Cam,Rod control
    No Specifications
    View All Products
    Keys
    Rod control
    Adapter
    Here you can find the product data sheets and CAD files of this product
