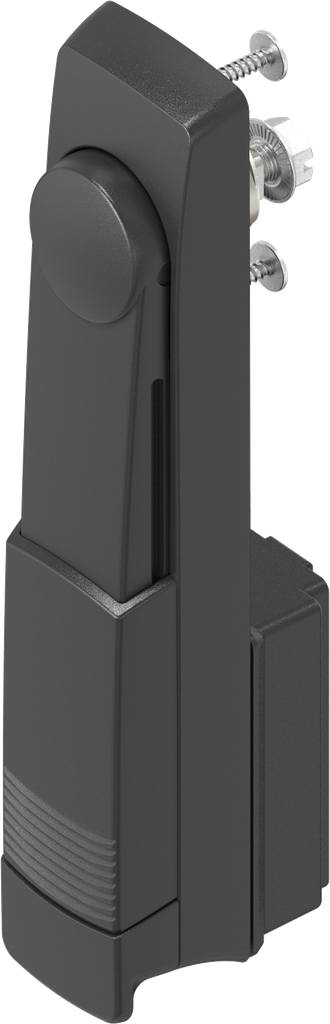

Swinghandle with insert double bit 3, Polyamide GF black; 1225-U249

https://www.emka.com/products/1225-u249 https://www.emka.com/web/image/product.template/230094/image_1920?unique=20e02dd


    This combination does not exist.

    Inside the sealing Outside the sealing Grounding possible Foamed seal Protection class IP 65 Left Right


    Product information:

    On request:
    Cap without foamed seal for small bending area
    Insert zinc die black powder-coated and polyamide black

    Internal Reference: 1225-U249
    Product Type: Swinghandle, Lifthandle
    Program: 1225
    Catalog sheet: 3G-220
    Material of the module : Polyamide GF
    Surface of the module: black
    Door return variable: Yes
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, More than 4 points available on request
    Number of Locking: One locking set
    Attachment of the trough: Screw-on cap IP 65
    Type of actuation: Double bit 3
    Mounting Positions : Inside the sealing,Outside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes
    Handle Art(1): Swinghandle
    Cloak: Yes
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Locking set: Insert
    locking set cover: Yes
    Swivel Handle: 24 mm
    Pan Handle Length: 160 mm
    Door revolvable / reversible: Yes
    Door Version : Left,Right
    Locking components: Rod control,Bearing bush with cam
