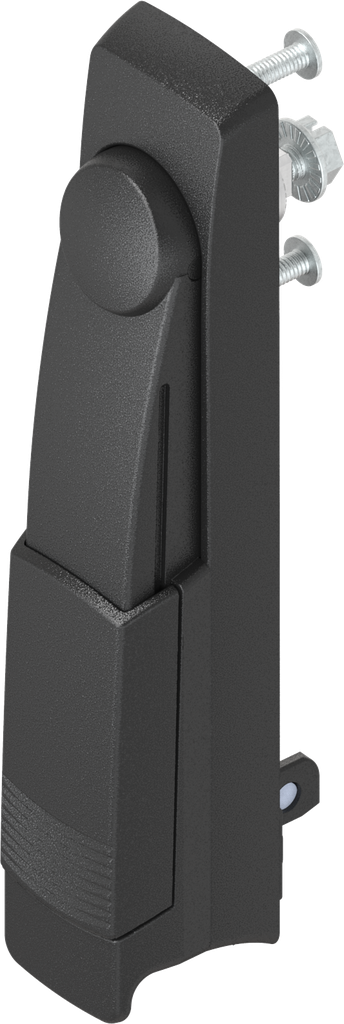

Swinghandle for profile half cylinder 45 mm (A = 35 mm), Polyamide GF black; 1225-U194

https://www.emka.com/products/1225-u194 https://www.emka.com/web/image/product.template/230062/image_1920?unique=20e02dd


    This combination does not exist.

    Inside the sealing Outside the sealing Grounding possible Foamed seal Protection class IP 40 Left Right


    Internal Reference: 1225-U194
    Product Type: Swinghandle, Lifthandle
    Program: 1225
    Catalog sheet: 3G-220
    Material of the module : Polyamide GF
    Surface of the module: black
    Door return variable: Yes
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, More than 4 points available on request
    Number of Locking: One locking set
    Attachment of the trough: Hook IP 40
    Mounting Positions : Inside the sealing,Outside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes
    Handle Art(1): Swinghandle
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Locking set: Profile half cylinder A = 35
    locking set cover: Yes
    Swivel Handle: 30 mm
    Pan Handle Length: 160 mm
    Door revolvable / reversible: Yes
    Door Version : Left,Right
    Locking components: Rod control,Bearing bush with cam
    No Specifications
    View All Products
    Keys
    Rod control
    Bearing bush
    Here you can find the product data sheets and CAD files of this product
