Swinghandle for profile half cylinder 40 mm (A = 30 mm), Polyamide GF black
Swinghandle for profile half cylinder 40 mm (A = 30 mm), Polyamide GF black

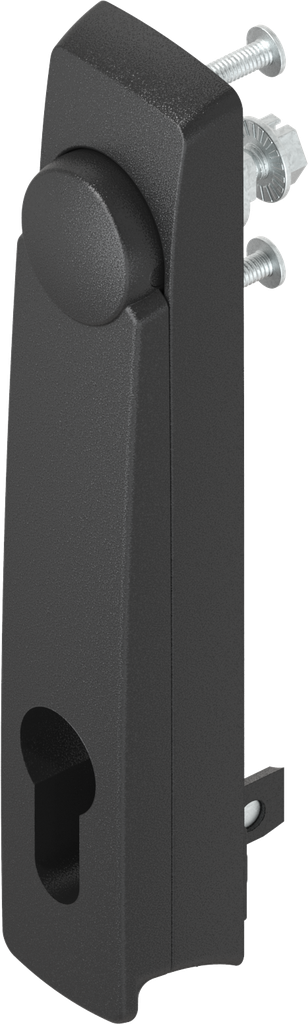

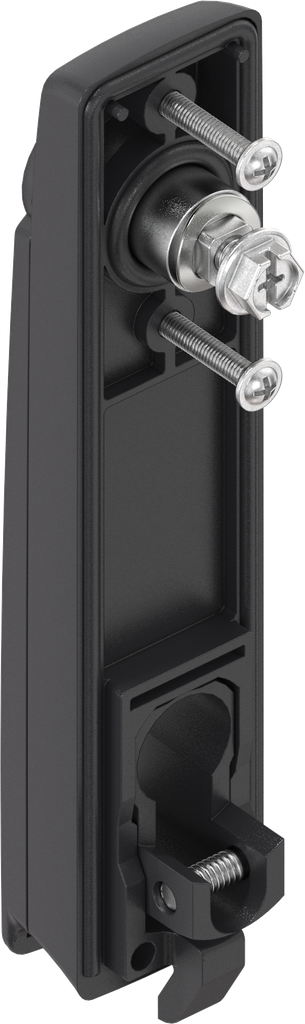

Swinghandle for profile half cylinder 40 mm (A = 30 mm), Polyamide GF black; 1225-U185

https://www.emka.com/products/1225-u185 https://www.emka.com/web/image/product.template/230053/image_1920?unique=c770a6b


    This combination does not exist.

    Inside the sealing Outside the sealing Grounding possible Foamed seal Protection class IP 40 Left Right


    Internal Reference: 1225-U185
    Product Type: Swinghandle, Lifthandle
    Program: 1225
    Catalog sheet: 3G-220
    Material of the module : Polyamide GF
    Surface of the module: black
    Door return variable: Yes
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, More than 4 points available on request
    Number of Locking: One locking set
    Attachment of the trough: Hook IP 40
    Mounting Positions : Inside the sealing,Outside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes
    Handle Art(1): Swinghandle
    Without locking set: Profile half cylinder, blind plug without spring-loaded ball,Profily half cylinder blind plug with spring-loaded ball
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Locking set: Profile half cylinder A = 30
    Swivel Handle: 22 mm
    Pan Handle Length: 160 mm
    Door revolvable / reversible: Yes
    Door Version : Left,Right
    Locking components: Rod control,Bearing bush with cam
    No Specifications
    View All Products
    Keys
    Profile half cylinder
    Rod control
    Bearing bush

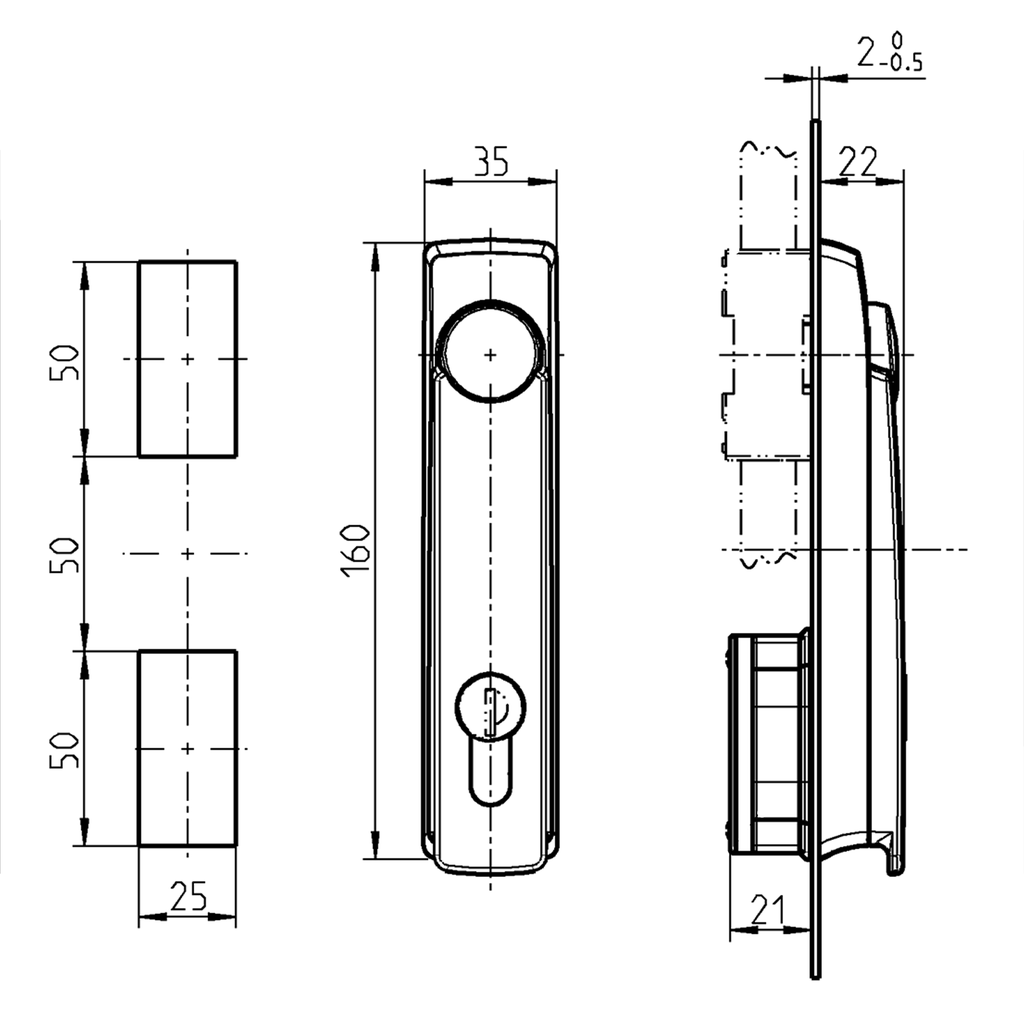

    Here you can find the product data sheets and CAD files of this product
