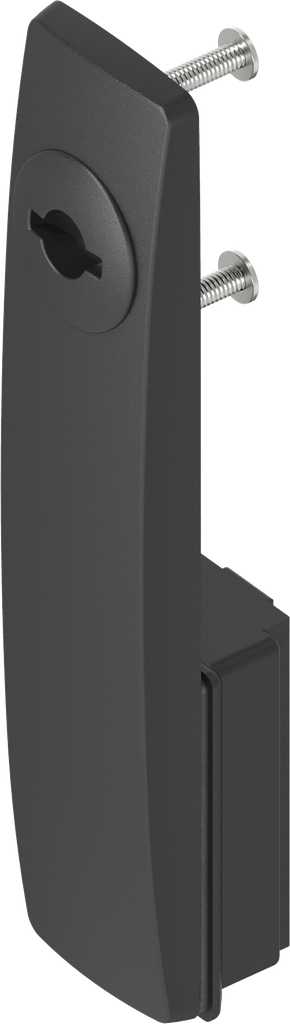

Escutcheon long for insert double bit, Polyamide GF black; 1221-U134

https://www.emka.com/products/1221-u134 https://www.emka.com/web/image/product.template/229595/image_1920?unique=61a053d

    This combination does not exist.

    Inside the sealing Outside the sealing Grounding possible Foamed seal Protection class IP 65
    Internal Reference: 1221-U134
    Standards: Protection class IP 65
    Barcode: 1221-U00134-0000000
    Product Type: Escutcheon
    Program: 1221
    Catalog sheet: 3G-120
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, More than 4 points available on request
    Mounting Positions : Inside the sealing,Outside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Locking means key tag: Insert double bit
    Key Tag Size: long
    Locking components: Rod control,Bearing bush with cam
    No Specifications
