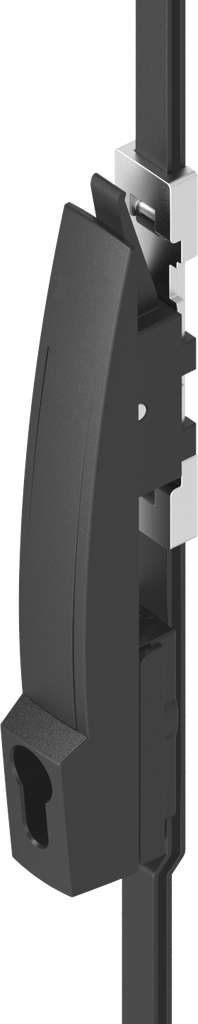

Lifthandle locking system complete with 2 locking points for profile half cylinder 40 mm (A = 30 mm), Polyamide GF black; 1190-U107

https://www.emka.com/products/1190-u107 https://www.emka.com/web/image/product.template/227554/image_1920?unique=e0d59c1


    This combination does not exist.

    Outside the sealing Left Right

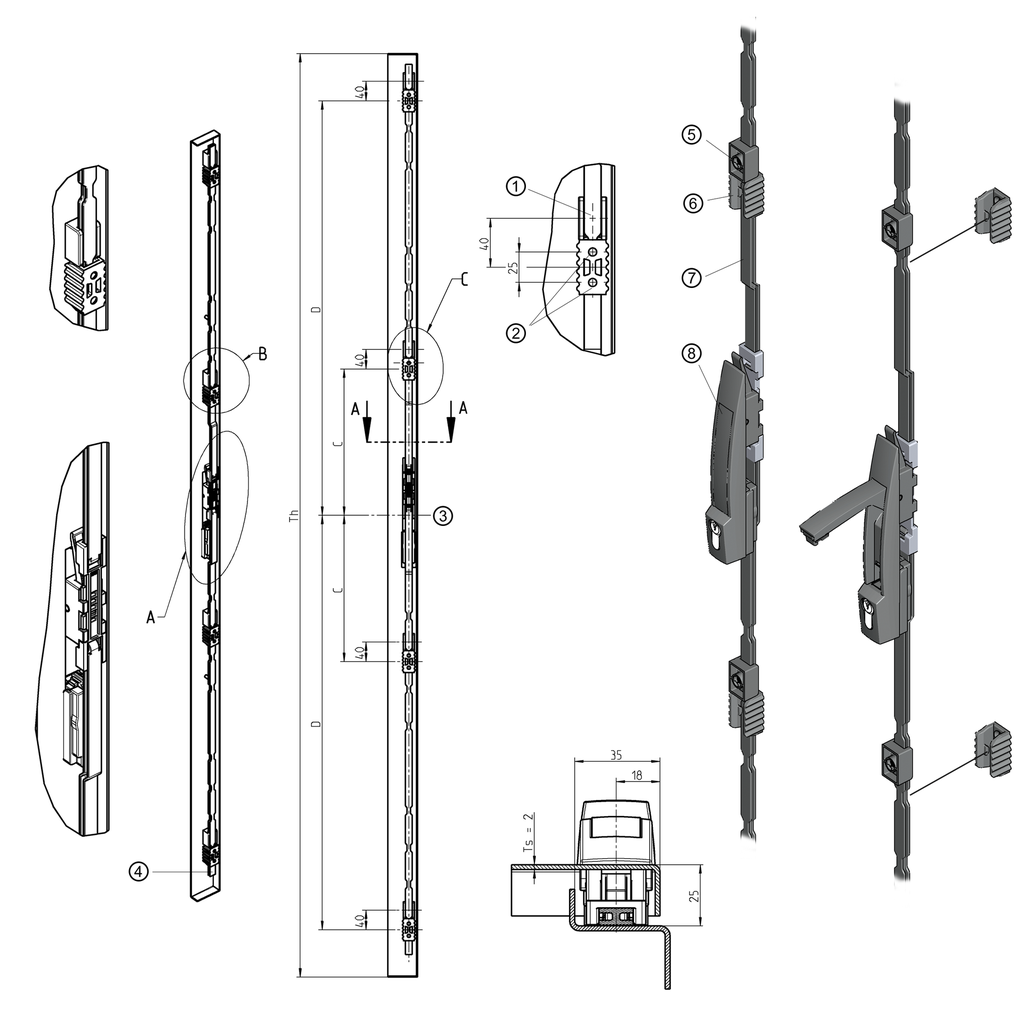

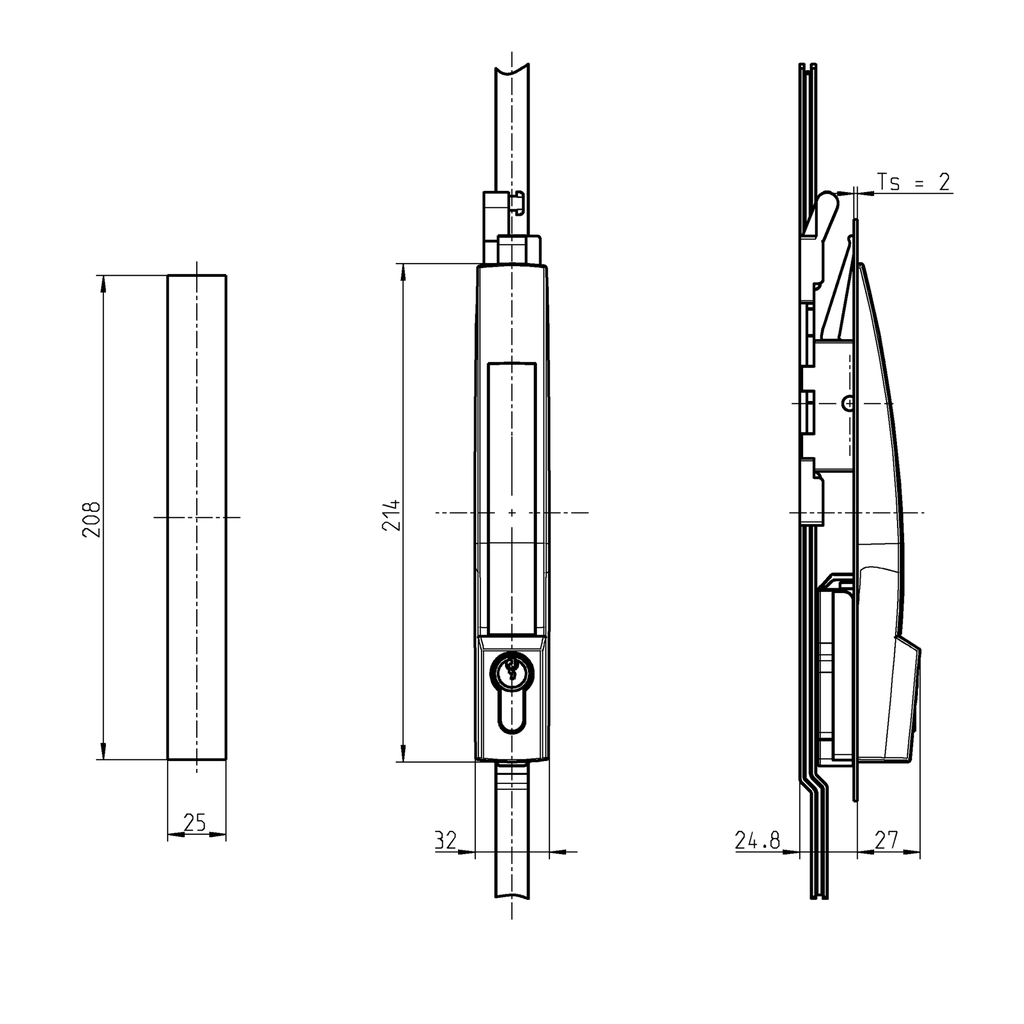

    Function:

    • Door height Th = 800 mm - 1200 mm:
      Dimension C: not applicable; Dimension D: 300 mm
    • Door height Th = 1200 mm - 1600 mm:
      Dimension C: not applicable; Dimension D: 450 mm

    Assembly instruction:

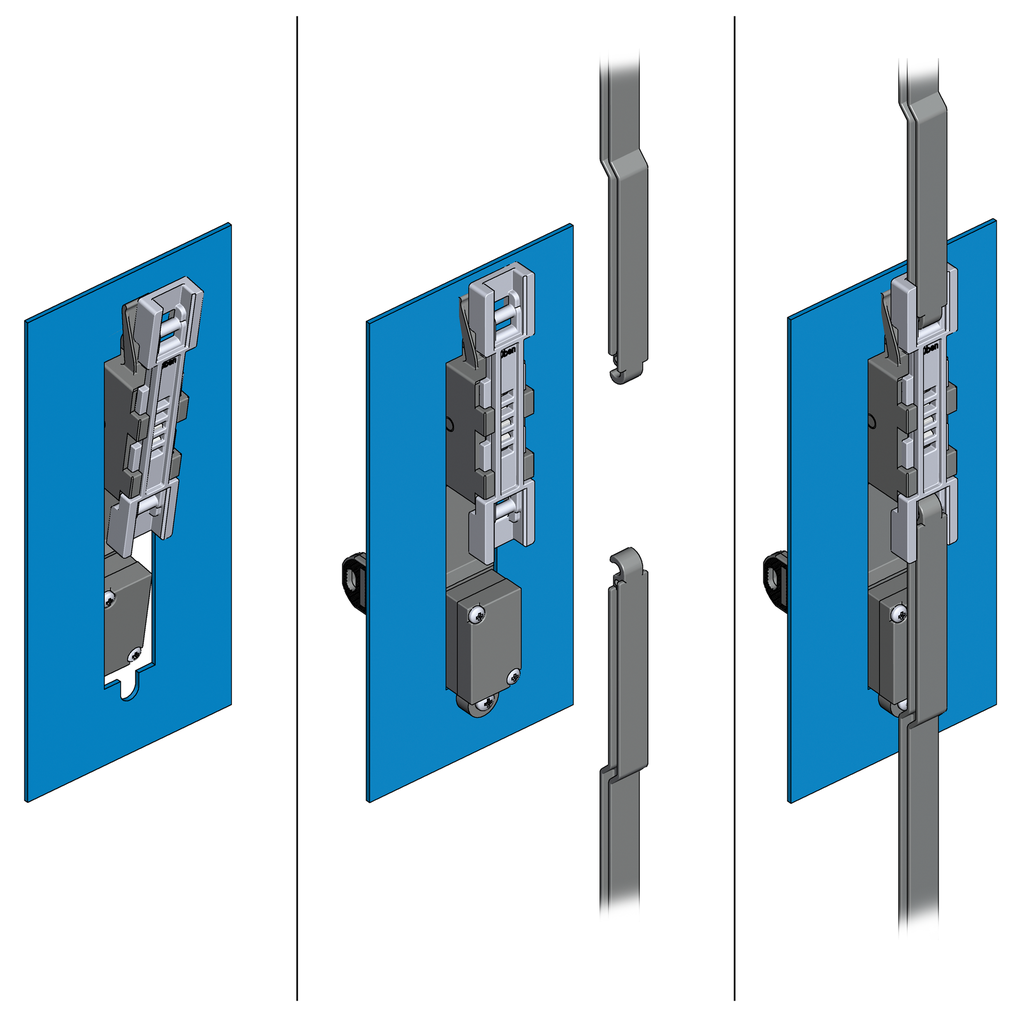

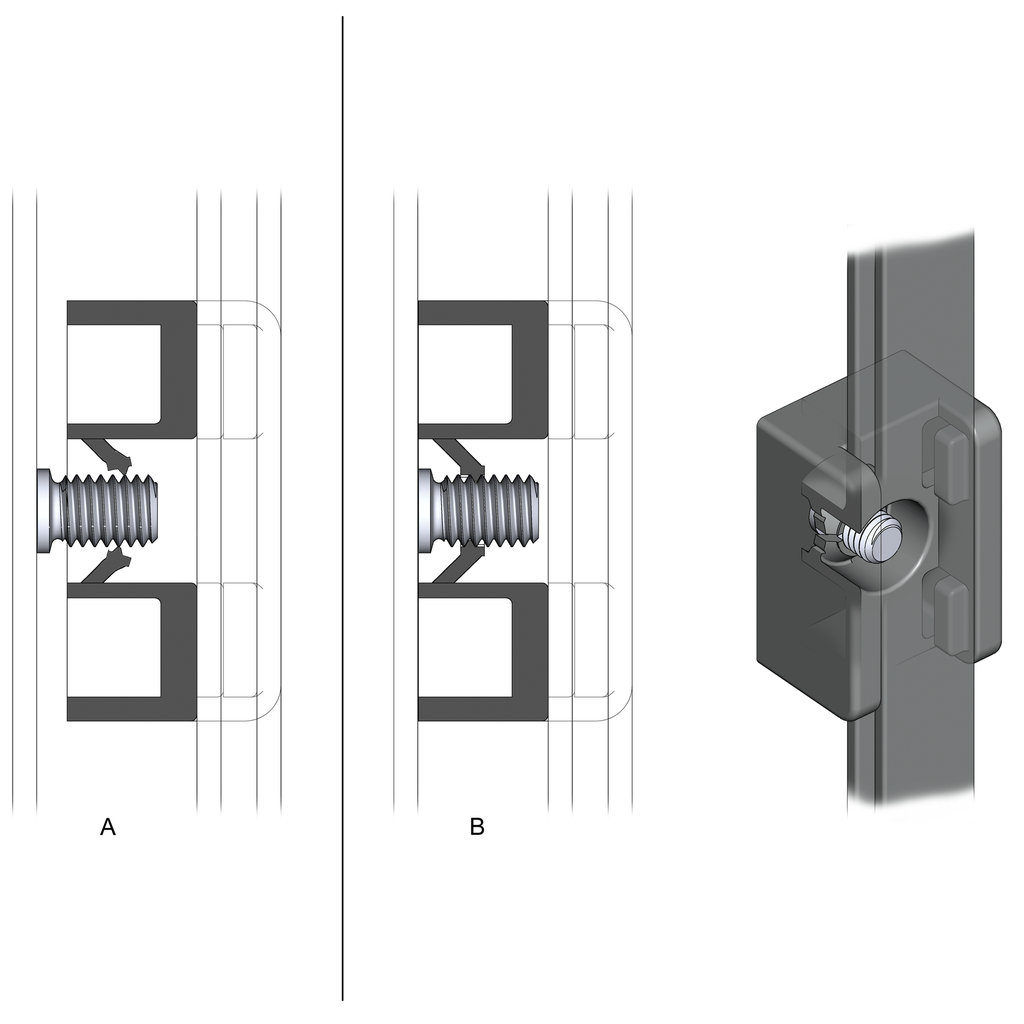

    A = Fitting the rod guide onto the weld stud
    B =Rod guide completely assembled

    Pull-out force: Fmin. = 350 N
    Application force: typical value F ≃ 135 N
    These values refer to a thread with a raw or zinc-plated surface which is free from grease.

    Akeneo Note:

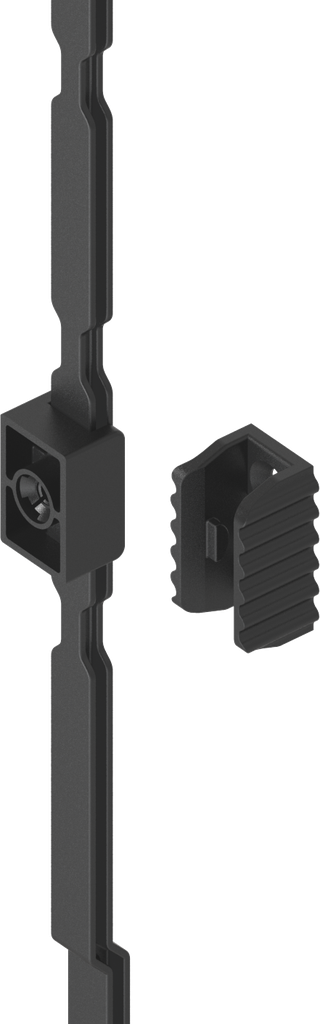

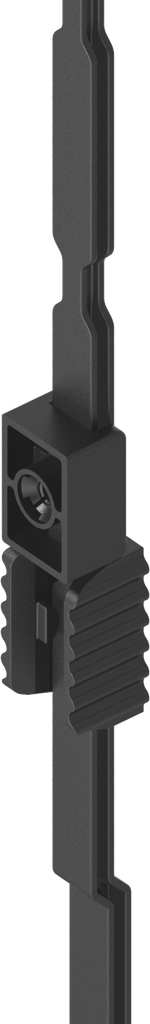

    Number of rod guides and catches 2; Stroke 18 mm

    Internal Reference: 1190-U107
    Product Type: Swinghandle, Lifthandle
    Program: 1190
    Catalog sheet: 3F-430
    Material of the module : Polyamide GF
    Surface of the module: black
    Dimension A, Variable: 25 mm
    Number of Possible Locking Points: 2 points
    Number of Locking: One locking set
    Article with property rights: Yes
    Mounting Positions : Outside the sealing
    Handle Art(1): Lifthandle
    With integrated rod control / 3-point cam: Yes
    Locking set: Profile half cylinder A = 30
    Swivel Handle: 26.5 mm
    Pan Handle Length: 214 mm
    Door revolvable / reversible: Yes
    Door Version : Left,Right
    Thickness: 2 mm
    Locking components: Integrated rod control
