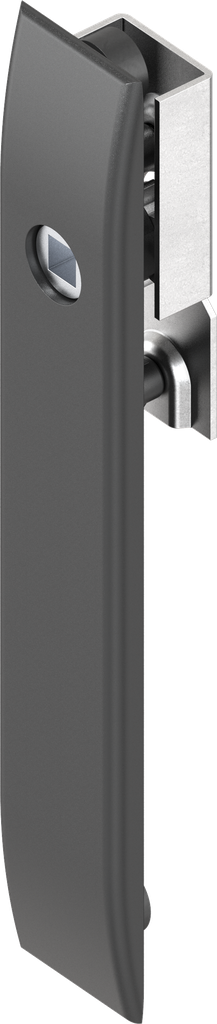

Escutcheon for rods with insert square female 8, Polyamide GF black; 1180-U113

https://www.emka.com/products/1180-u113-escutcheon-for-rods-with-insert-square-female-8-polyamide-gf-black-227274 https://www.emka.com/web/image/product.template/227274/image_1920?unique=fb0a720

    This combination does not exist.

    Outside the sealing Foamed seal Protection class IP 54
    No stock item, please ask for availability

    Function:

    Turn 135° = Stroke 23.5 mm
    Turn 90° = Stroke 16 mm
    Internal Reference: 1180-U113
    Standards: Protection class IP 54
    Barcode: 1180-U00113-0000000
    Product Type: Escutcheon
    Program: 1180
    Catalog sheet: 3E-220
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 2 points, 4 point, More than 4 points available on request
    Type of actuation: Square female 8
    Mounting Positions : Outside the sealing
    Foamed gasket: Yes
    With integrated rod control / 3-point cam: Yes
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2.50 mm
    Locking components: Rod control
