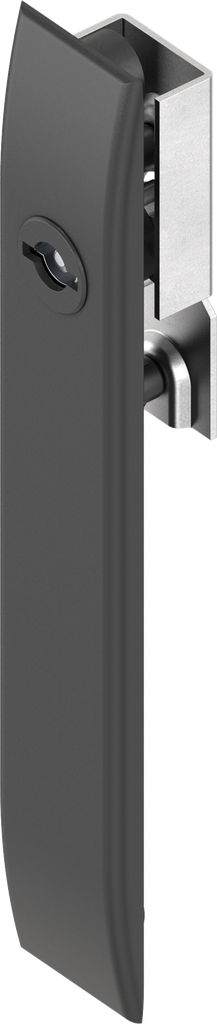

Escutcheon for rods with insert double bit 3 and mask, Polyamide GF black; 1180-U102

https://www.emka.com/products/1180-u102 https://www.emka.com/web/image/product.template/227262/image_1920?unique=7db622d


    This combination does not exist.

    Outside the sealing Foamed seal Protection class IP 54


    Function:

    Turn 135° = Stroke 23.5 mm
    Turn 90° = Stroke 16 mm

    Internal Reference: 1180-U102
    Product Type: Escutcheon
    Program: 1180
    Catalog sheet: 3E-220
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 2 points, 4 point, More than 4 points available on request
    Type of actuation: Double bit 3
    Mounting Positions : Outside the sealing
    Foamed gasket: Yes
    With integrated rod control / 3-point cam: Yes
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2.50 mm
    Locking means key tag: Insert double bit
    Locking components: Rod control
    No Specifications
