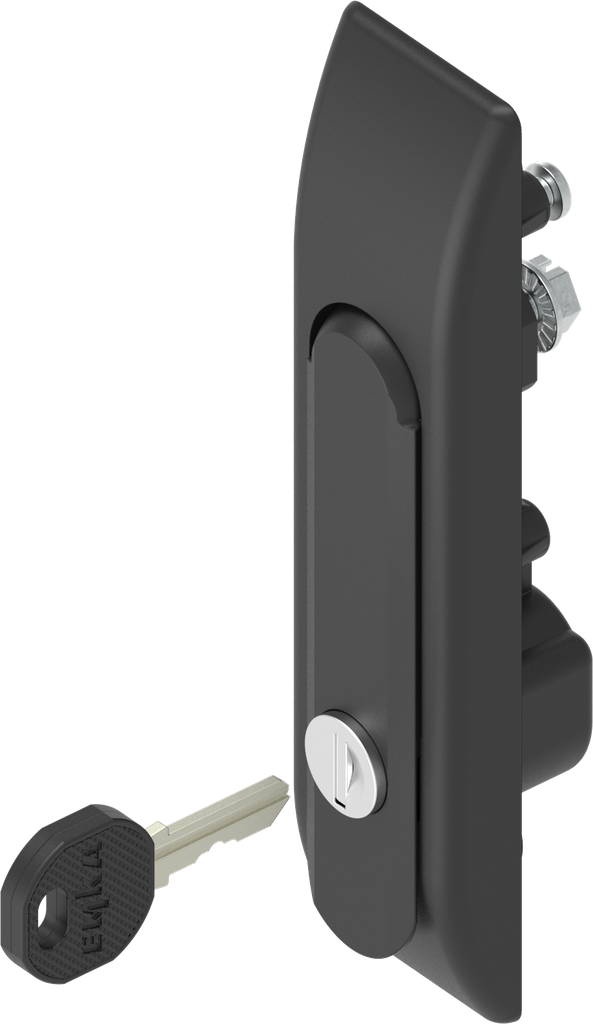

Swinghandle for rod control, keyed EK 333, Polyamide and zinc die black powder-coated; 1160-U201

https://www.emka.com/products/1160-u201 https://www.emka.com/web/image/product.template/226988/image_1920?unique=7db622d


    This combination does not exist.

    Inside the sealing Outside the sealing Foamed seal Protection class IP 65 Left Right


    Product information:

    Swinghandle for preassembled rod control

    Function:

    Turn 135° = Stroke 23.5 mm
    Turn 90° = Stroke 16 mm

    Internal Reference: 1160-U201
    Product Type: Swinghandle, Lifthandle
    Program: 1160
    Catalog sheet: 3D-140
    Material of the module : Polyamide and zinc die
    Surface of the module: black powder-coated
    Dimension A, Variable: 25 mm
    Door return variable: Yes
    Number of Possible Locking Points: 2 points, 4 point, More than 4 points available on request
    Number of Locking: One locking set
    Mounting Positions : Inside the sealing,Outside the sealing
    Foamed gasket: Yes
    Handle Art(1): Swinghandle
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2.50 mm
    Round Cylinder Type: EMKA EK, keyed EK 333
    Locking set: Round cylinder
    Swivel Handle: 14.5 mm
    Pan Handle Length: 148 mm
    Door revolvable / reversible: Yes
    Door Version : Left,Right
    Locking components: Rod control
