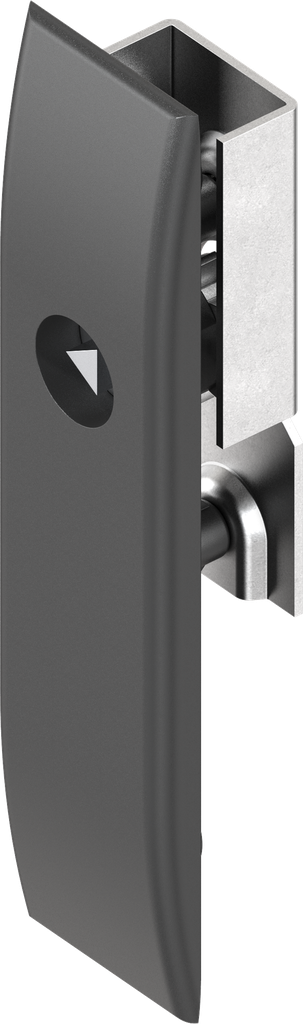

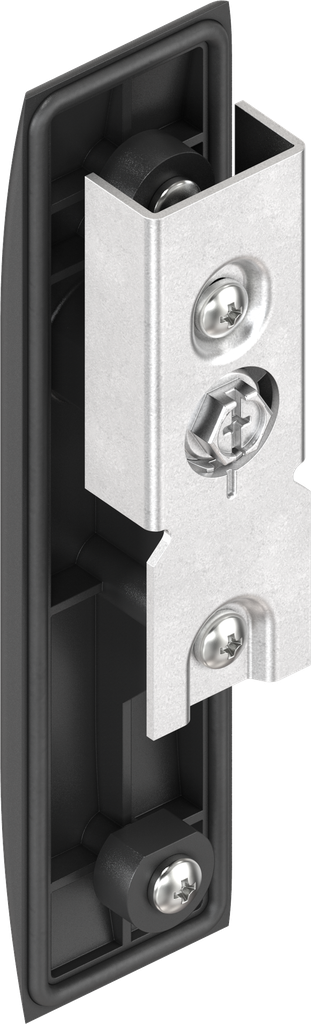

Escutcheon for rods with insert triangular 6.5 CNOMO, Polyamide GF black; 1160-U165

https://www.emka.com/products/1160-u165-escutcheon-for-rods-with-insert-triangular-6-5-cnomo-polyamide-gf-black-226985 https://www.emka.com/web/image/product.template/226985/image_1920?unique=ae5cbfd

    This combination does not exist.

    Outside the sealing Foamed seal Protection class IP 65
    No stock item, please ask for availability

    Function:

    Turn 135° = Stroke 23.5 mm
    Turn 90° = Stroke 16 mm
    Internal Reference: 1160-U165
    Standards: Protection class IP 65
    Barcode: 1160-U00165-0000000
    Product Type: Escutcheon
    Program: 1160
    Catalog sheet: 3D-220
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 2 points, 4 point, More than 4 points available on request
    Type of actuation: Triangular 6.5 CNOMO
    Mounting Positions : Outside the sealing
    Foamed gasket: Yes
    With integrated rod control / 3-point cam: Yes
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2.50 mm
    Locking means key tag: Insert square, triangular, Daimler Benz, slot, etc.
    Locking components: Rod control
