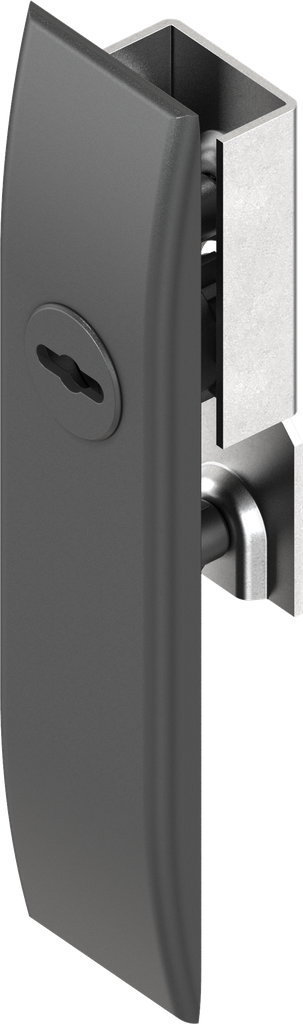

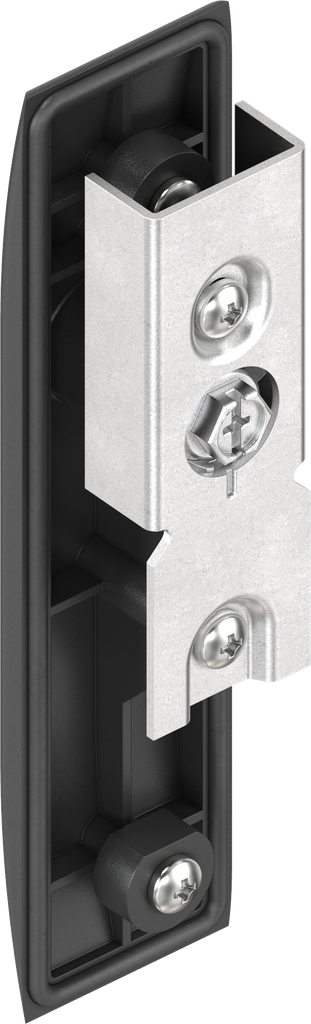

Escutcheon for rods with insert square female 8, Polyamide GF black
Escutcheon for rods with insert triangular 6.5 CNOMO, Polyamide GF black
Function:
Turn 135° = Stroke 23.5 mm
Turn 90° = Stroke 16 mm
Internal Reference:
1160-U164
Standards:
Protection class IP 65
Barcode:
1160-U00164-0000000
Product Type:
Escutcheon
Program:
1160

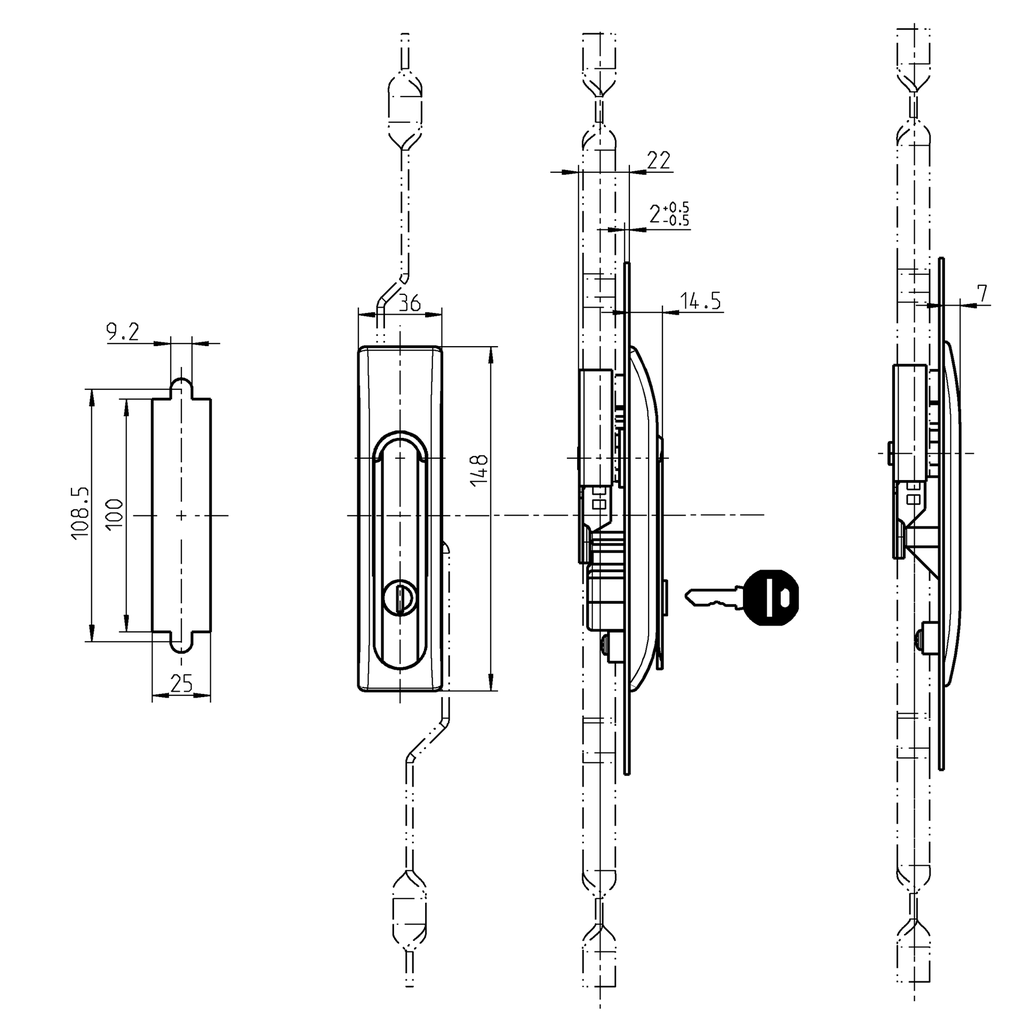

Catalog sheet:
3D-220
Material of the module :
Polyamide GF
Surface of the module:
black
Number of Possible Locking Points:
2 points, 4 point, More than 4 points available on request
Type of actuation:
Fiat
Mounting Positions :
Outside the sealing
Foamed gasket:
Yes
With integrated rod control / 3-point cam:
Yes
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
2.50 mm
Locking means key tag:
Insert FIAT
Locking components:
Rod control
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
