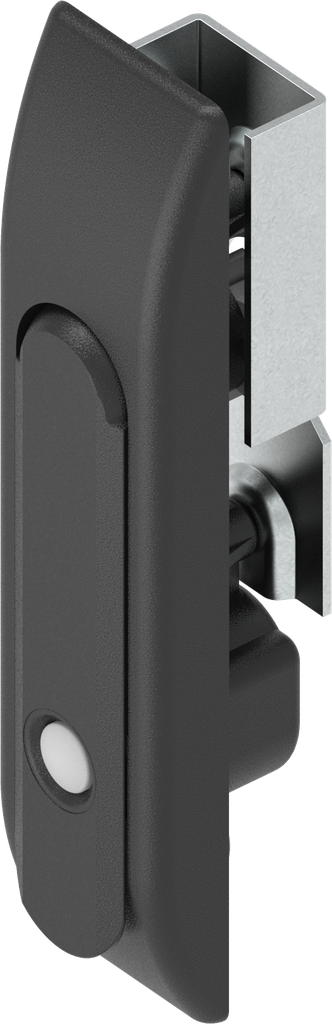

Swinghandle for rods with push button, Zinc die black powder-coated; 1160-U136
No stock item, please ask for availability
Function:
Turn 135° = Stroke 23.5 mmTurn 90° = Stroke 16 mm
Internal Reference:
1160-U136
Standards:
Protection class IP 65
Barcode:
1160-U00136-0000000
Product Type:
Swinghandle, Lifthandle
Program:
1160
Catalog sheet:
3D-220
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Dimension A, Variable:
25 mm
Number of Possible Locking Points:
2 points, 4 point, More than 4 points available on request
Number of Locking:
One locking set
Mounting Positions :
Outside the sealing
Foamed gasket:
Yes
Handle Art(1):
Swinghandle
With integrated rod control / 3-point cam:
Yes
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
2.50 mm
Locking set:
Push button
Swivel Handle:
14.5 mm
Pan Handle Length:
148 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Rod control
No Specifications
