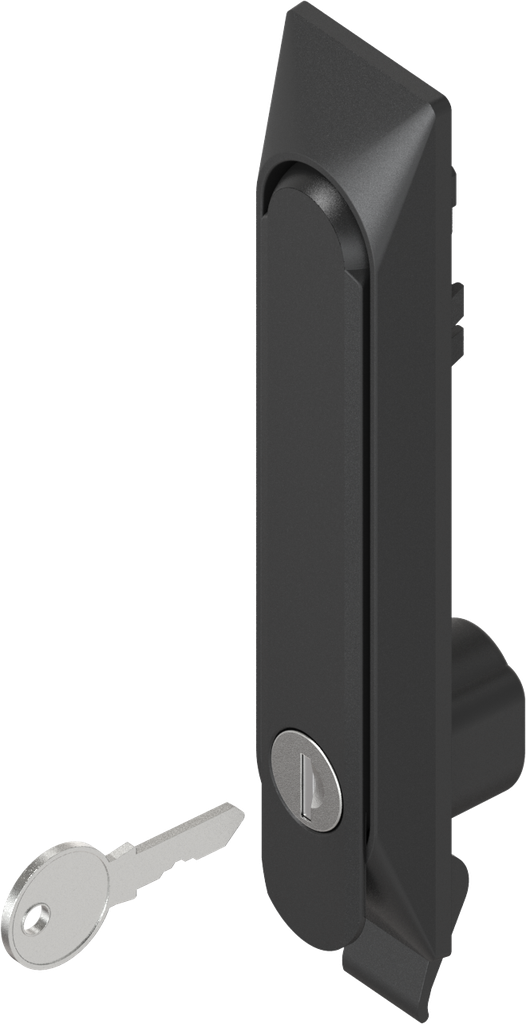

Swinghandle Eco 1150, keyed different, Polyamide and zinc die black powder-coated

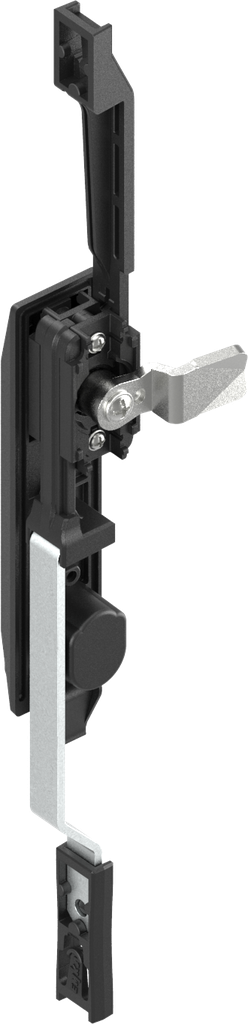

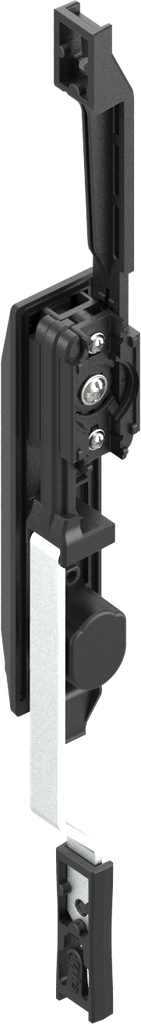

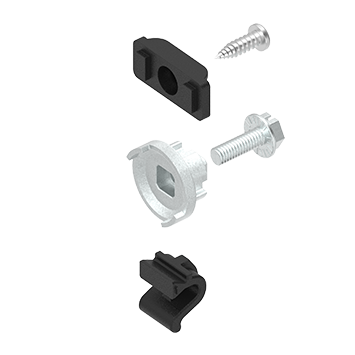

Fixing material for rod control, Steel zinc-plated
Swinghandle Eco 1150, keyed different, Polyamide and zinc die black powder-coated; 1150-U67-01
unassembled
No stock item, please ask for availability
Product information:
Swinghandle ist unassembled

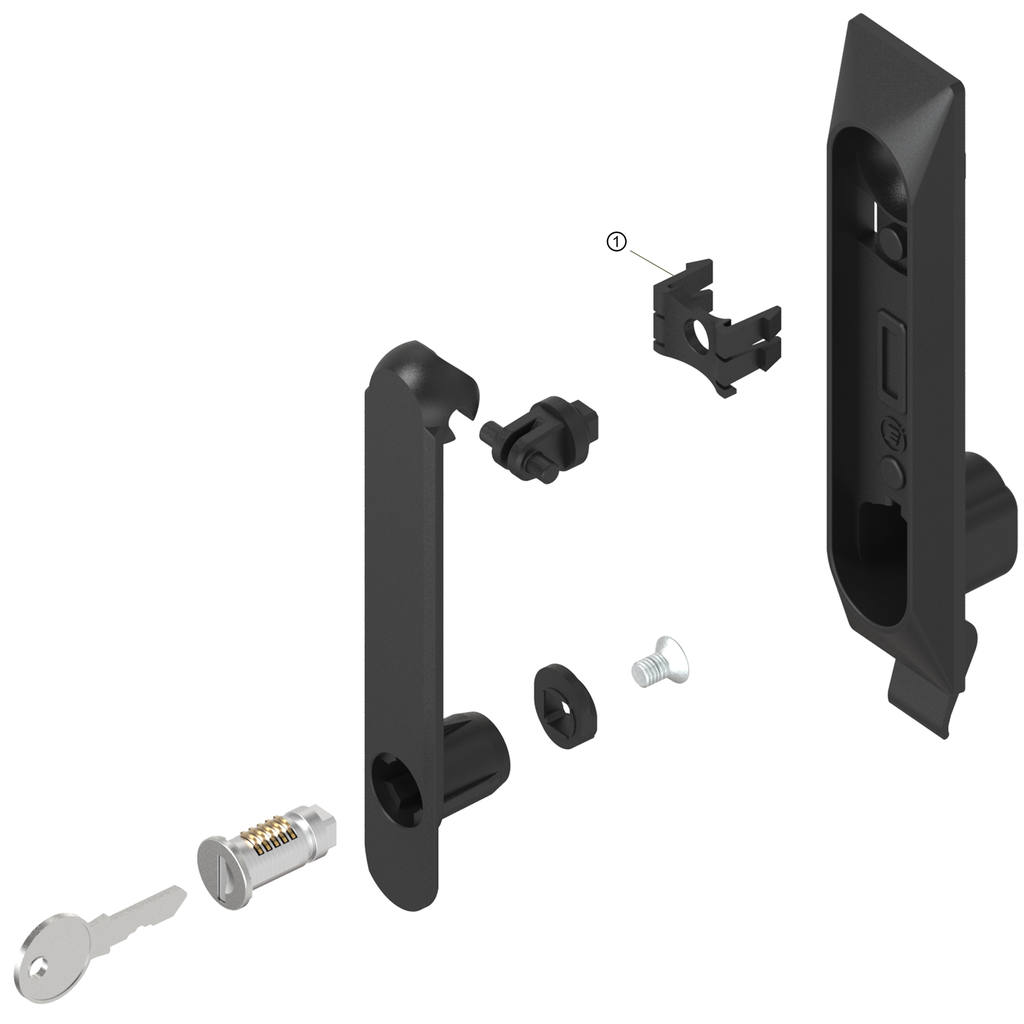

① = Mounting aid clip-fastener are used in combination with an adapter for cam 1150-U71.
Do not use when used with bar lock.
Internal Reference:
1150-U67-01
Standards:
Protection class IP 30
Barcode:
1150-U00067-0000001
Product Type:
Swinghandle, Lifthandle
Program:
1150
Material of the module :
Polyamide and zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point, 2 points, 3 point
Mounting Positions :
Inside the sealing,Outside the sealing
Handle Art(1):
Swinghandle

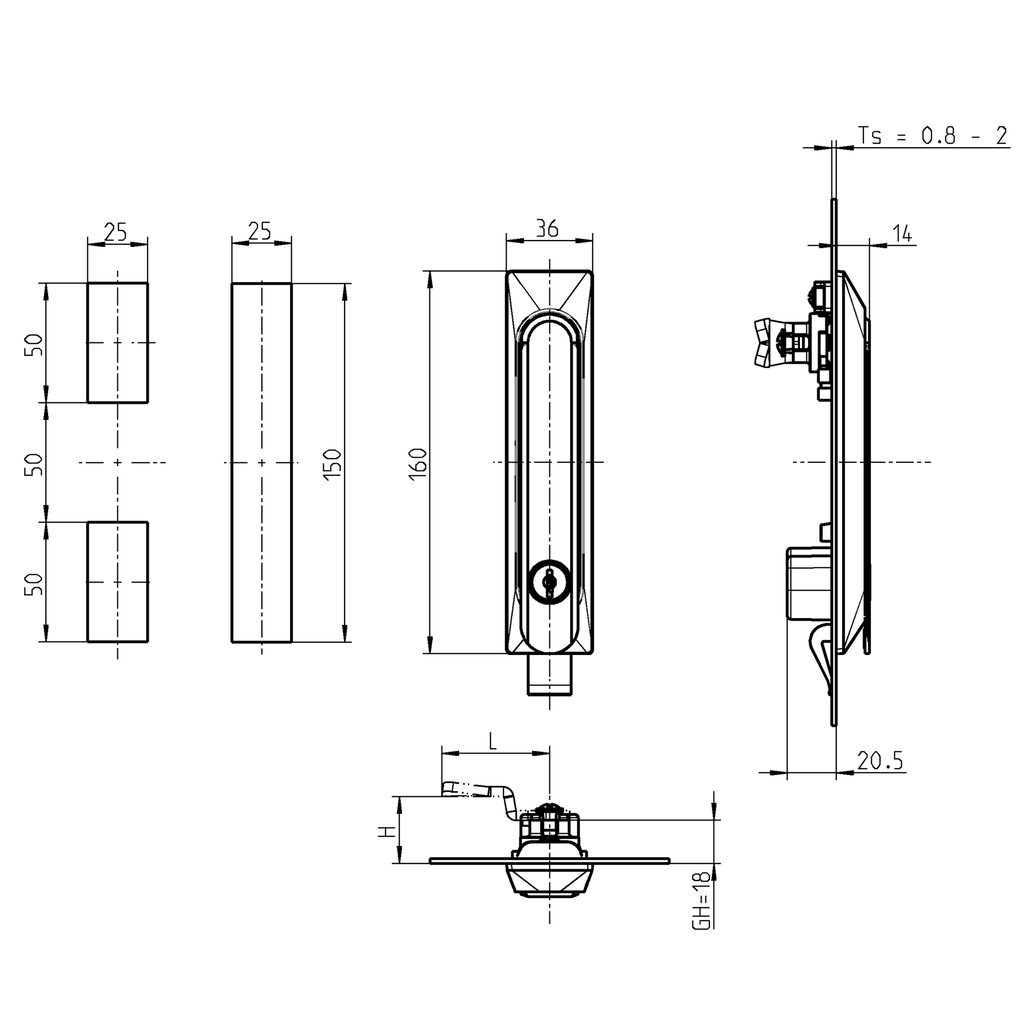

Suitable for door thickness from:
0.80 mm
Suitable for door thicknesses up to:
2 mm
Round Cylinder Type:
EMKA EK, differently keyed
Locking set:
Round cylinder
Key Removable:
Key can be withdrawn in any handle position
Swivel Handle:
14 mm
Pan Handle Length:
160 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Cam,Rod control
No Specifications
