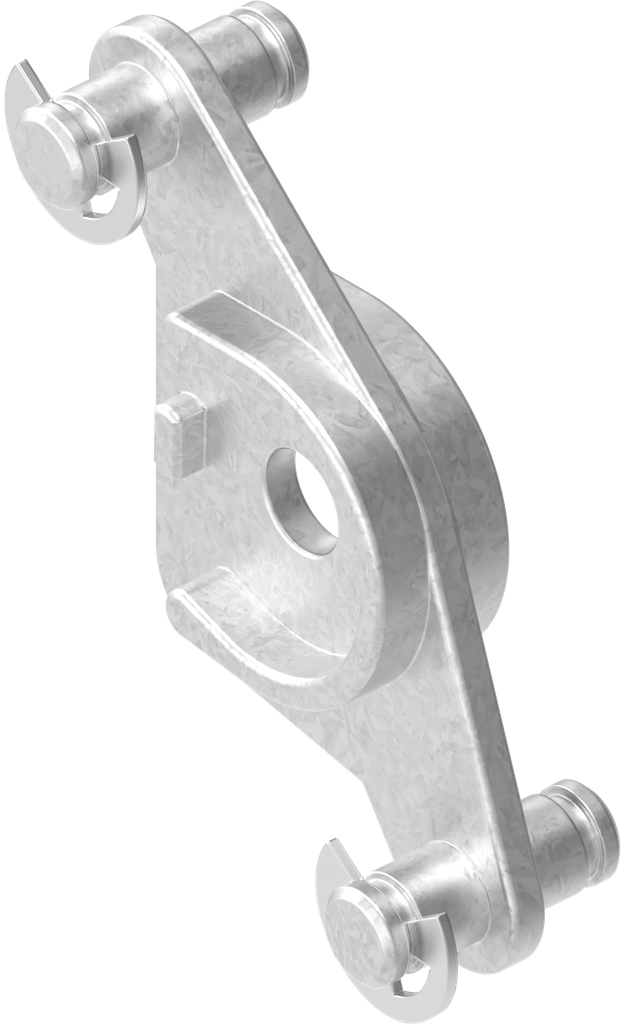

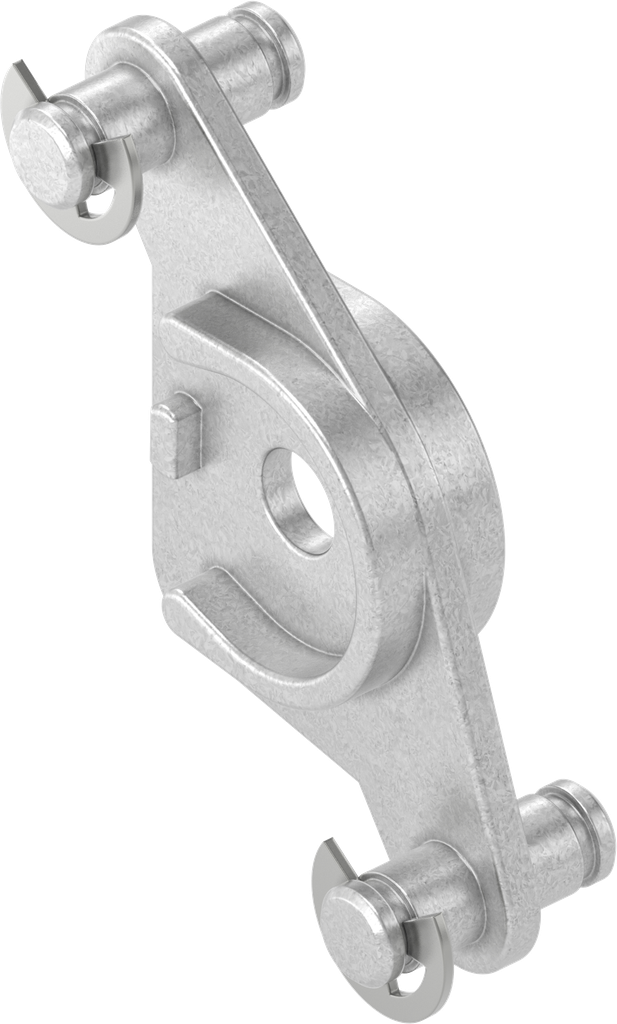

Rod control, Zinc die zinc-plated; 1150-U63

https://www.emka.com/products/1150-u63 https://www.emka.com/web/image/product.template/226276/image_1920?unique=2c7c9a6

Stroke = 32 mm


    This combination does not exist.

    Inside the sealing


    Product information:

    Attention:
    Only cams with catch made of steel or stainless steel can be used.

    Note:
    When using the rod control for the cam, the screw-in depth of the screw is reduced by 2.5 mm.

    Internal Reference: 1150-U63
    Product Type: Rod control
    Program: 1150
    Catalog sheet: 1C-130
    Material of the module : Zinc die
    Surface of the module: zinc-plated
    Number of Possible Locking Points: 3 point
    Mounting Positions : Inside the sealing
    Stroke of the drive: Stroke 32 mm
    No Specifications
