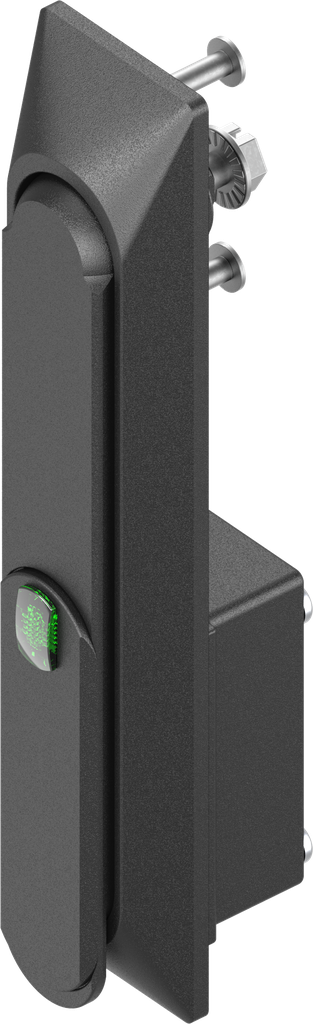

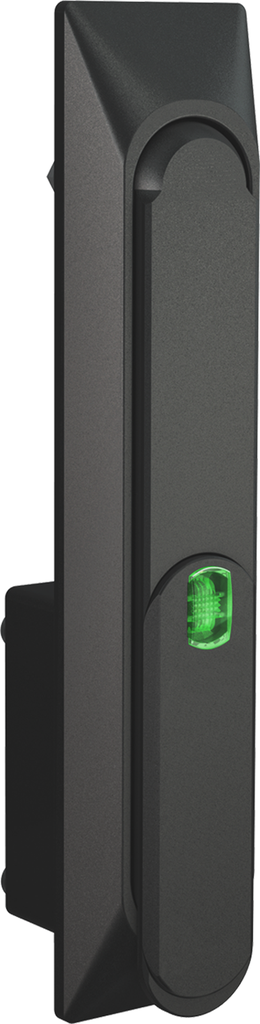

Swinghandle 1150 with electromagnetic release and emergency opening, keyed different, Polyamide and zinc die black powder-coated; 1150-U56-1V

https://www.emka.com/products/1150-u56-1v https://www.emka.com/web/image/product.template/64918/image_1920?unique=2c7c9a6

with solenoid 24V; for rod control or cam


    This combination does not exist.

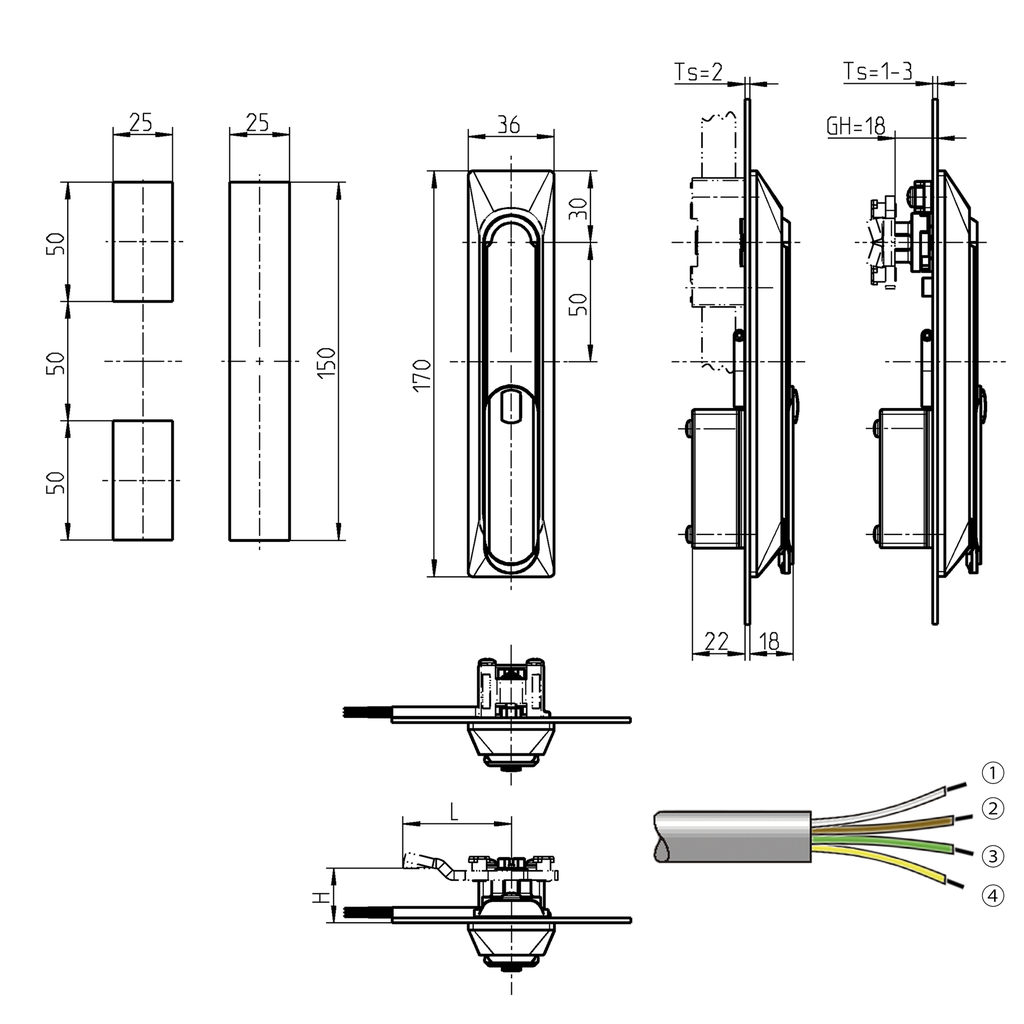

    Inside the sealing Outside the sealing Protection class IP 40 Left Right


    Product information:

    1 = white (+)
    2 = brown (-)
    3 = green contact
    4 = yellow contact

    After pushing the handle briefly into the dish, it can be opened.

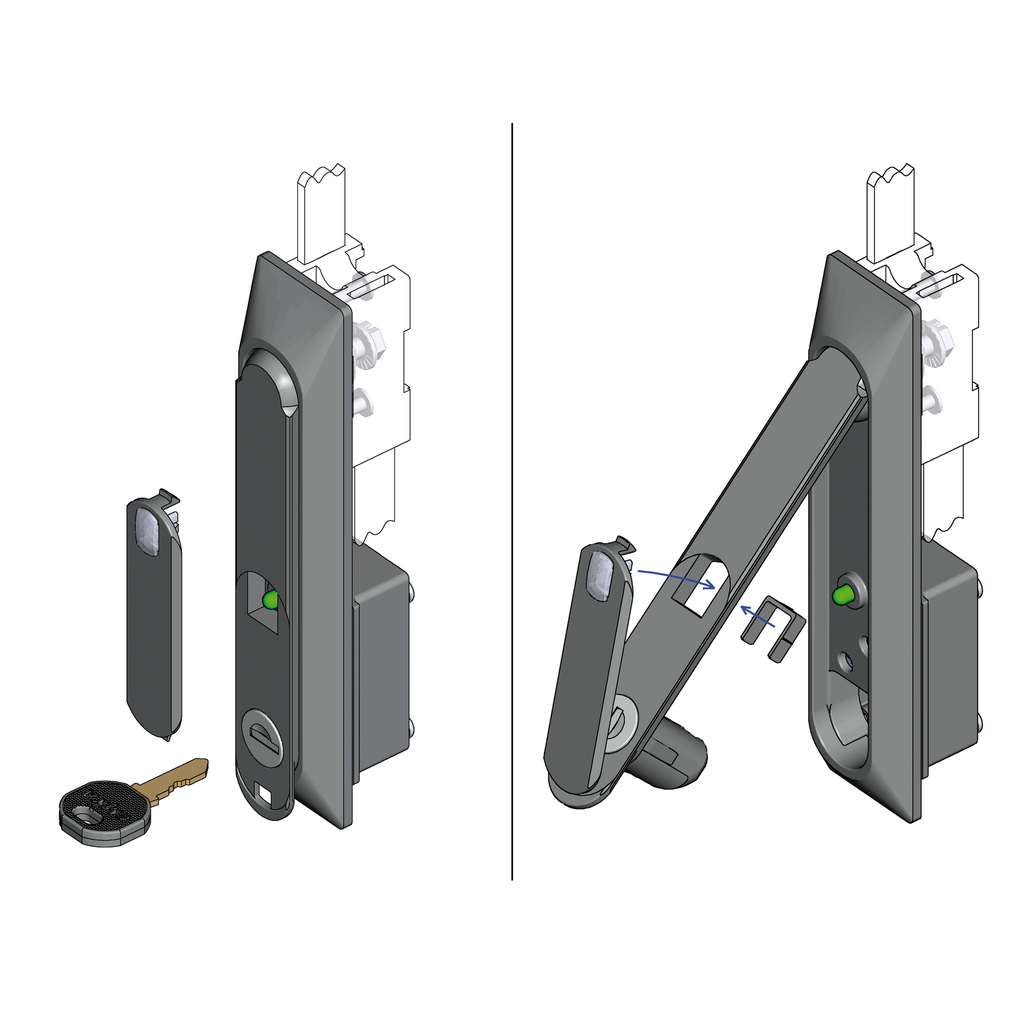

    The integrated reed contact is used for remote monitoring of the handle status. To lock the handle it must be pressed into the dish until the locking mechanism engages. The provided key is used to open the handle in case of power failure. For this purpose the cover on the locking cylinder has to be removed. The cover will be destroyed thereby and must be replaced.

    This handle can be connected to modules 3000-U32-02 and 3000-U47-02 or 3000-U47-07.

    on release of the handle, the LED is illuminated

    Function:

    This handle is suitable for locking indoor cabinets. It is released by applying a voltage signal of 24 V DC. After pushing the handle briefly into the dish, it can be opened.
    The integrated reed contact is used for remote monitoring of the handle status. To lock the handle it must be pressed into the dish until the locking mechanism engages. The key provided is used to open the handle in case of power failure. For this purpose the cover on the locking cylinder has to be removed. The cover will be destroyed thereby and must be replaced.

    This handle can be connected to modules 3000-U32-02 and 3000-U47-02 or 3000-U47-07.

    On release of the handle, the LED is illuminated

    Internal Reference: 1150-U56-1V
    Product Type: Swinghandle, Lifthandle
    Program: 3000
    Catalog sheet: 3C-160
    Material of the module : Polyamide and zinc die
    Surface of the module: black powder-coated
    Door return variable: Yes
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, More than 4 points available on request
    Number of Locking: One locking set and electromechanical version
    Mounting Positions : Inside the sealing,Outside the sealing
    Electromechanical Unlocking : 24 V
    Handle Art(1): Swinghandle
    Emergency opening: Yes
    Suitable for door thickness from: 1 mm
    Suitable for door thicknesses up to: 3 mm
    Round Cylinder Type: EMKA EK, differently keyed
    Locking set: Round cylinder,Electromechanical release
    locking set cover: Yes
    Swivel Handle: 18 mm
    Pan Handle Length: 170 mm
    Door revolvable / reversible: Yes
    Door Version : Left,Right
    Thickness: 2 mm
    Locking components: Cam,Rod control
