Fixing material adapter, mounting rail and screws for swinghandle with cam, Zinc die and steel

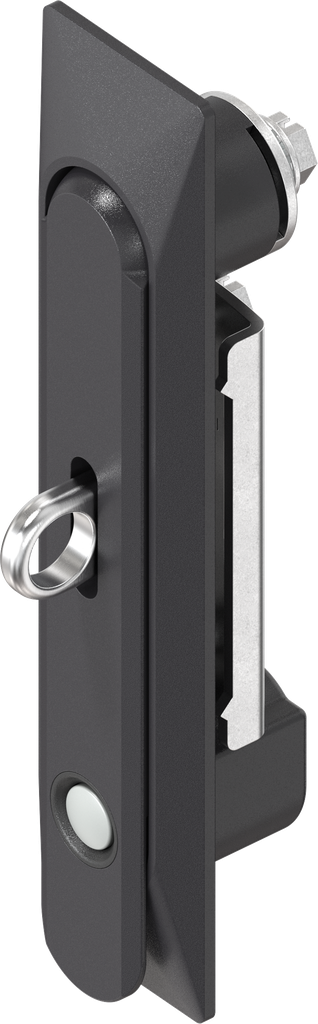

Swinghandle 1150 with push button, Polyamide and zinc die black powder-coated
Internal Reference:
1150-U55-01
Standards:
Protection class IP 65
Barcode:
1150-U00055-0000001
Product Type:
Swinghandle, Lifthandle
Program:
1150
Catalog sheet:
3C-120
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point
Mounting Positions :
Inside the sealing
Grounding possible:
Yes
Foamed gasket:
Yes
GH Mass:
20 mm
Handle Art(1):
Swinghandle
Locking set:
Push button
Swivel Handle:
9 mm
Pan Handle Length:
120 mm
Door revolvable / reversible:
Yes
Door thickness:
2 mm
Locking components:
Cam
No Specifications
No Matching Products

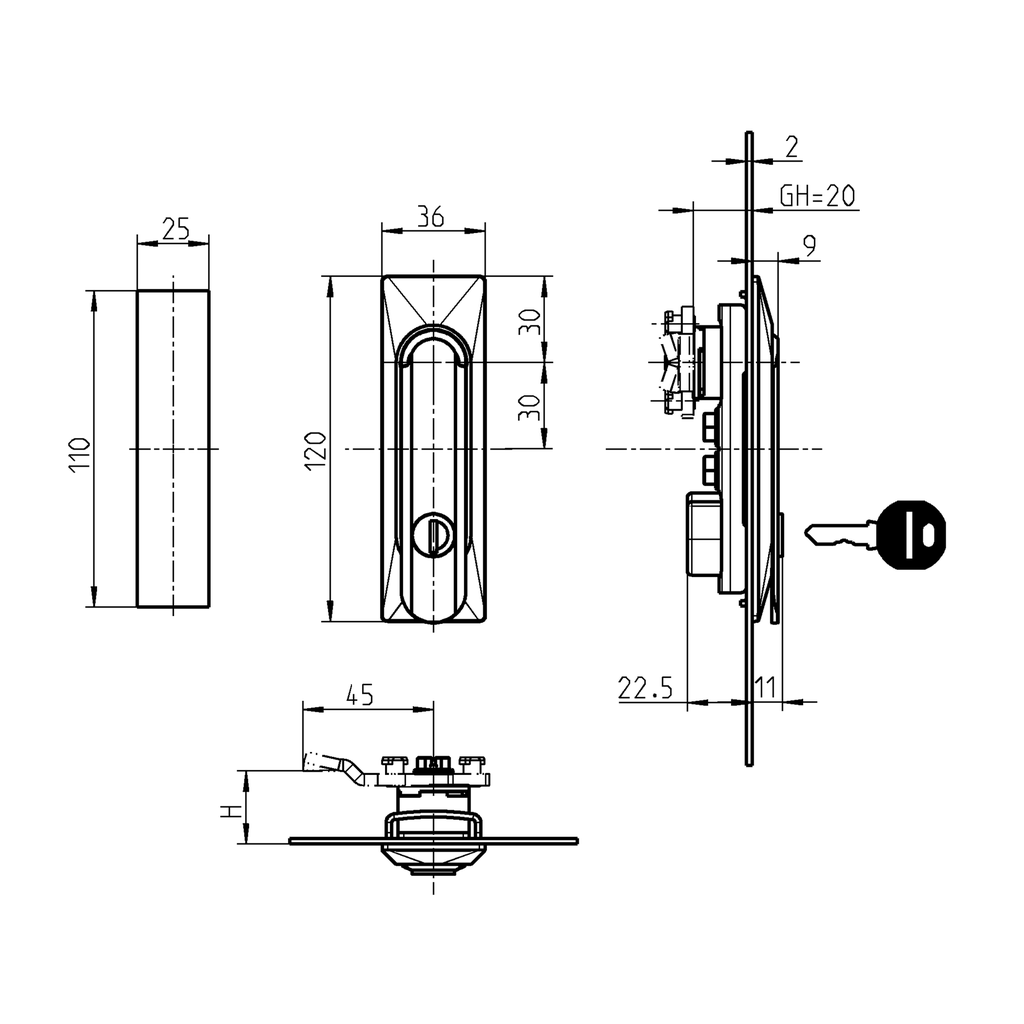

Here you can find the product data sheets and CAD files of this product
