Double cylinder swinghandle with 2-key-operation, Polyamide GF black
Double cylinder swinghandle with 2-key-operation, Polyamide GF black
Chest handle keyed different, Polyamide GF black
Chest handle keyed different, Polyamide GF black

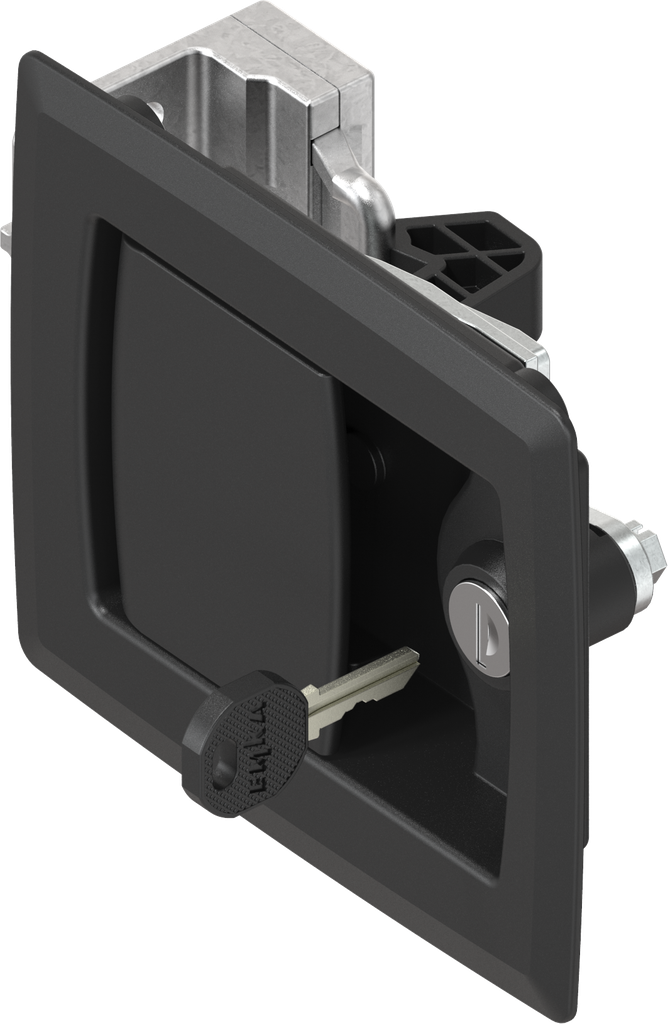

Chest handle keyed different, Polyamide GF black; 1130-U2

https://www.emka.com/products/1130-u2 https://www.emka.com/web/image/product.template/225528/image_1920?unique=2c7c9a6


    This combination does not exist.

    Inside the sealing Left Right


    Product information:

    The chest handles 1130-U1 and -U2 are made for right-hand version. Left-hand version is created by removal of the round cylinder, rotating it by 180° and refitting it.

    Function:

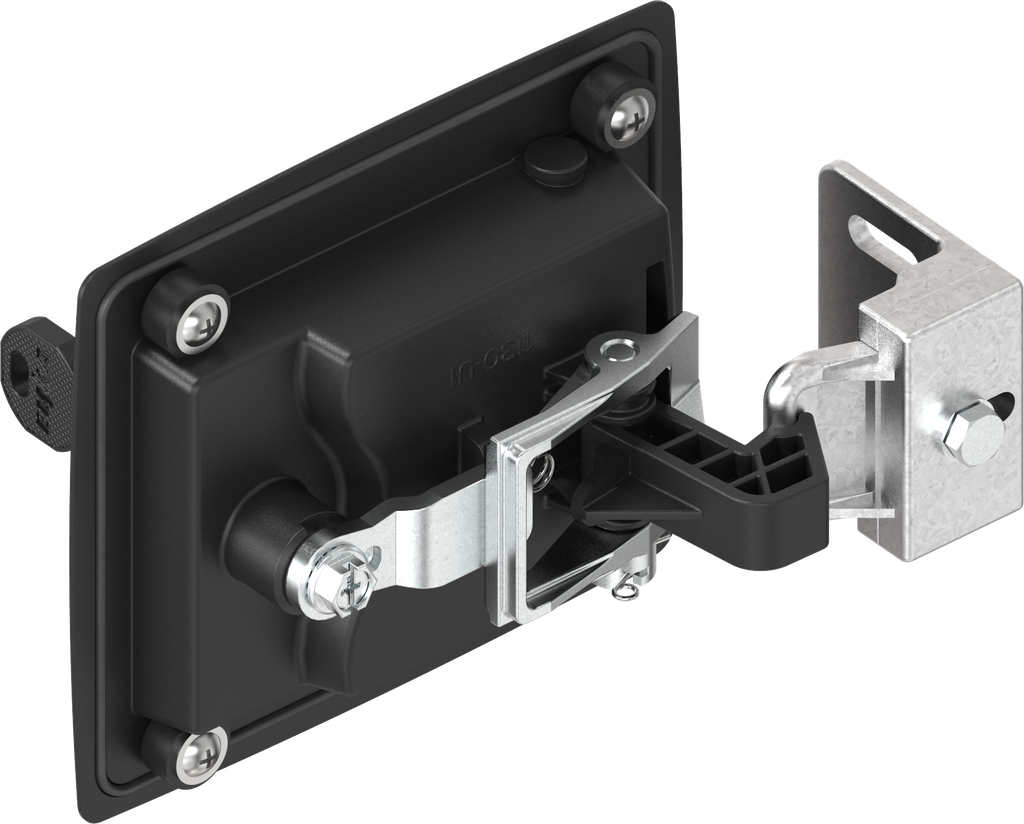

    The spring-loaded locking hook is equipped with a 'door-slam' feature. With this, the door can also be closed when locked.

    Internal Reference: 1130-U2
    Product Type: Other latch
    Program: 1130
    Catalog sheet: 8A-120
    Material of the module : Polyamide GF
    Surface of the module: black
    Adjustable 2D: Yes
    Number of Possible Locking Points: 1 point
    Article with property rights: Yes
    Fixing type of housing : nut fixing

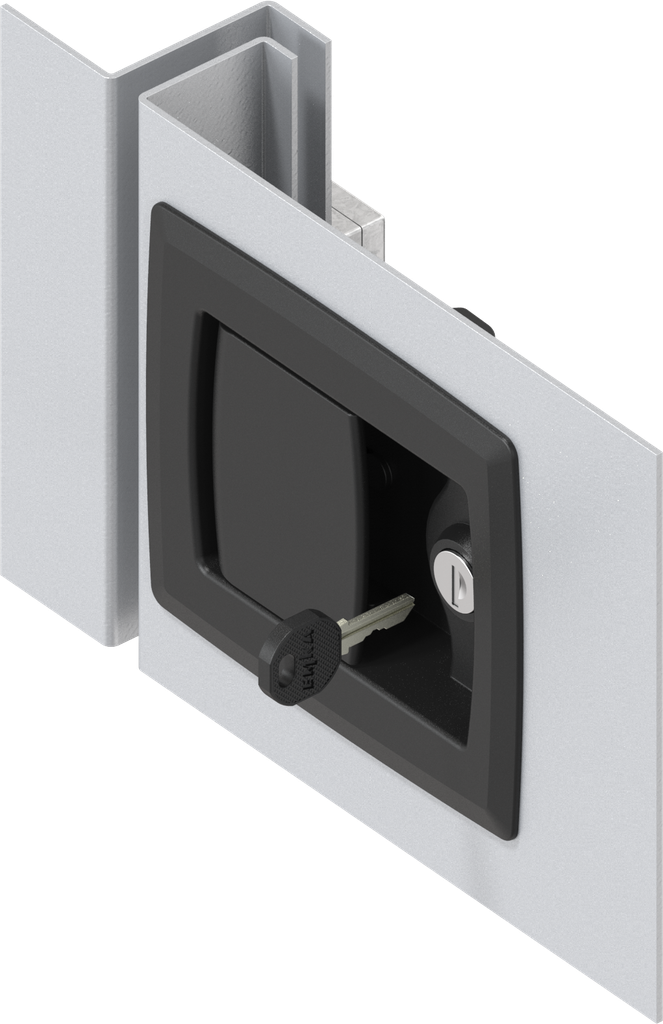

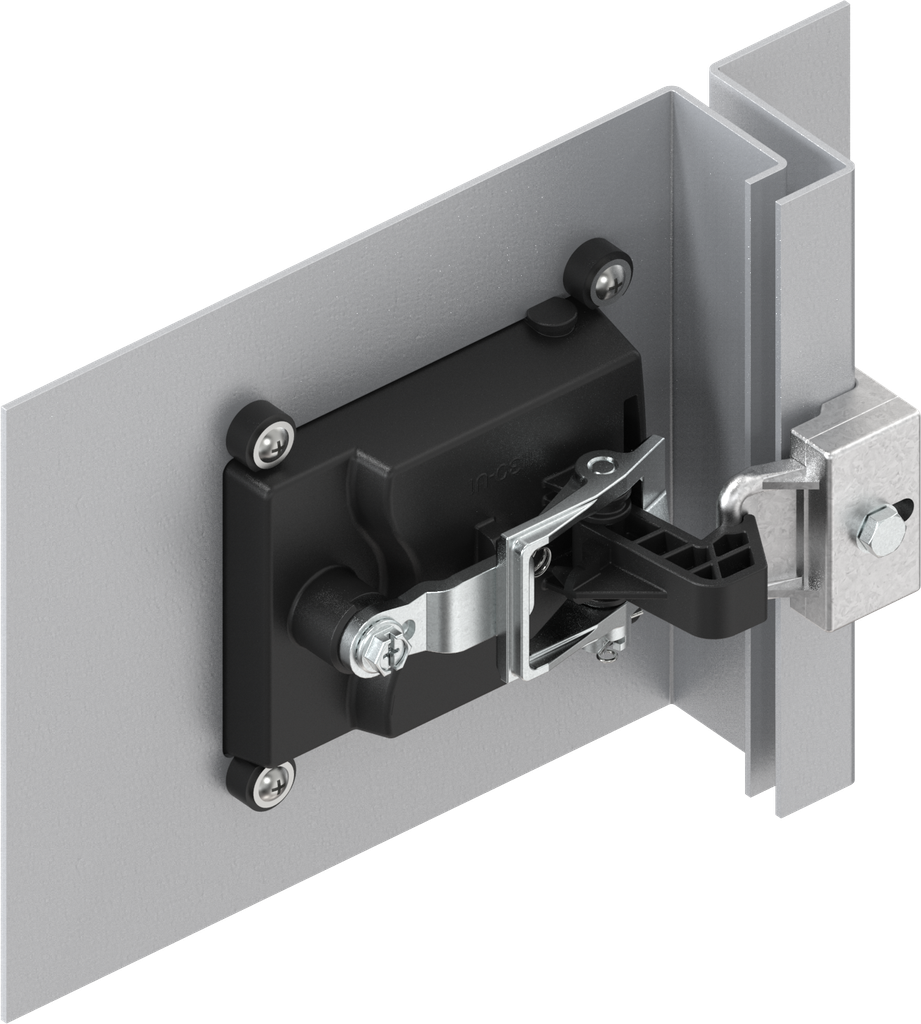

    Mounting Positions : Inside the sealing

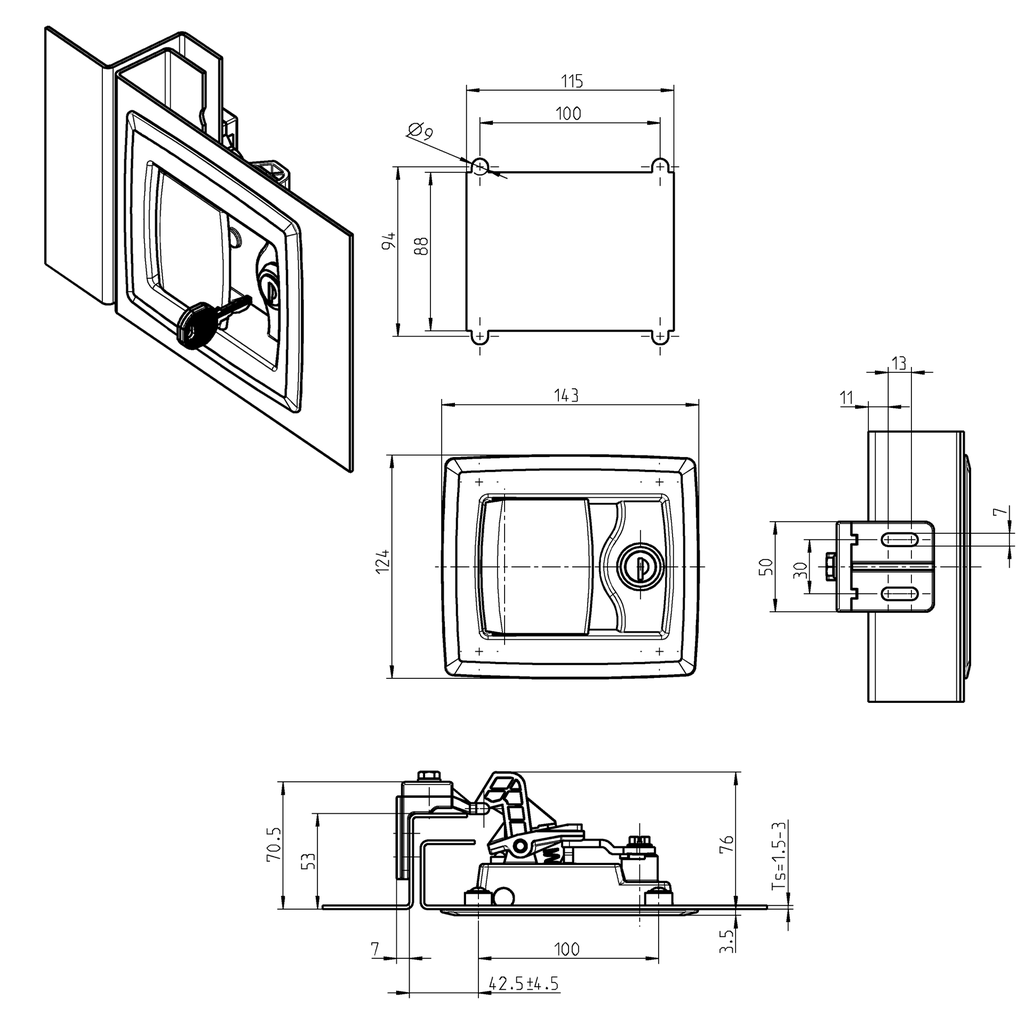

    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 3 mm
    Locking set: Round cylinder
    Door Version : Left,Right
    Lock Type: Chest habdle with snap-in function
    No Specifications
    View All Products
    Keys
    Here you can find the product data sheets and CAD files of this product
