Chest handle blind, Zinc die black powder-coated
Chest handle keyed EK 333, Polyamide black and zinc die chrome-plated

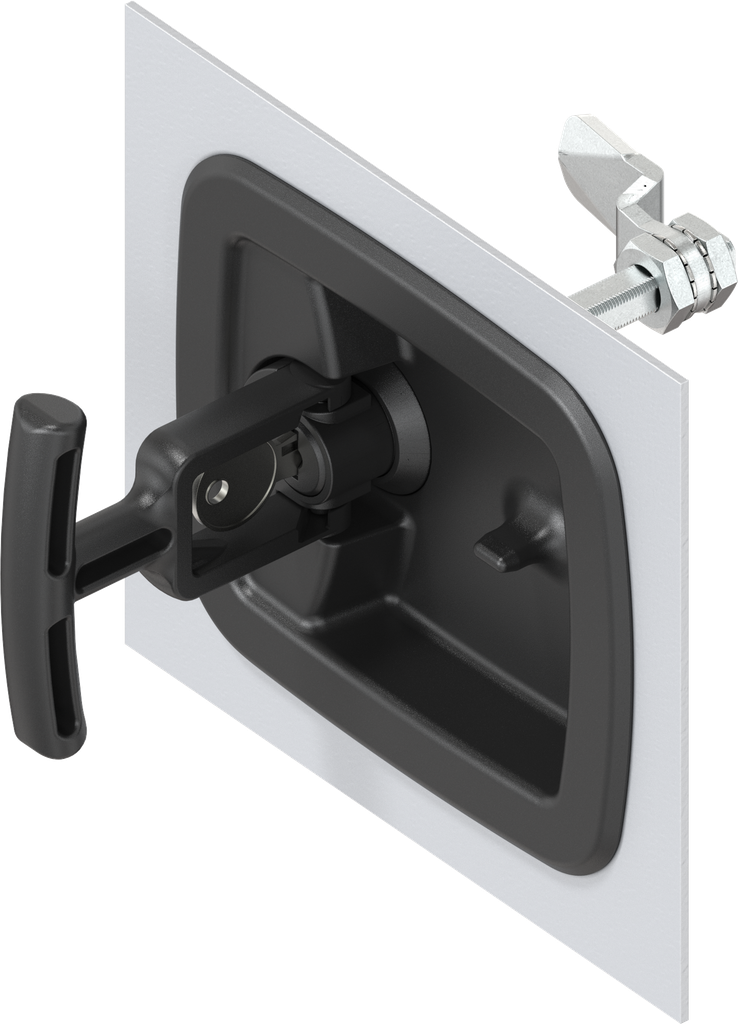

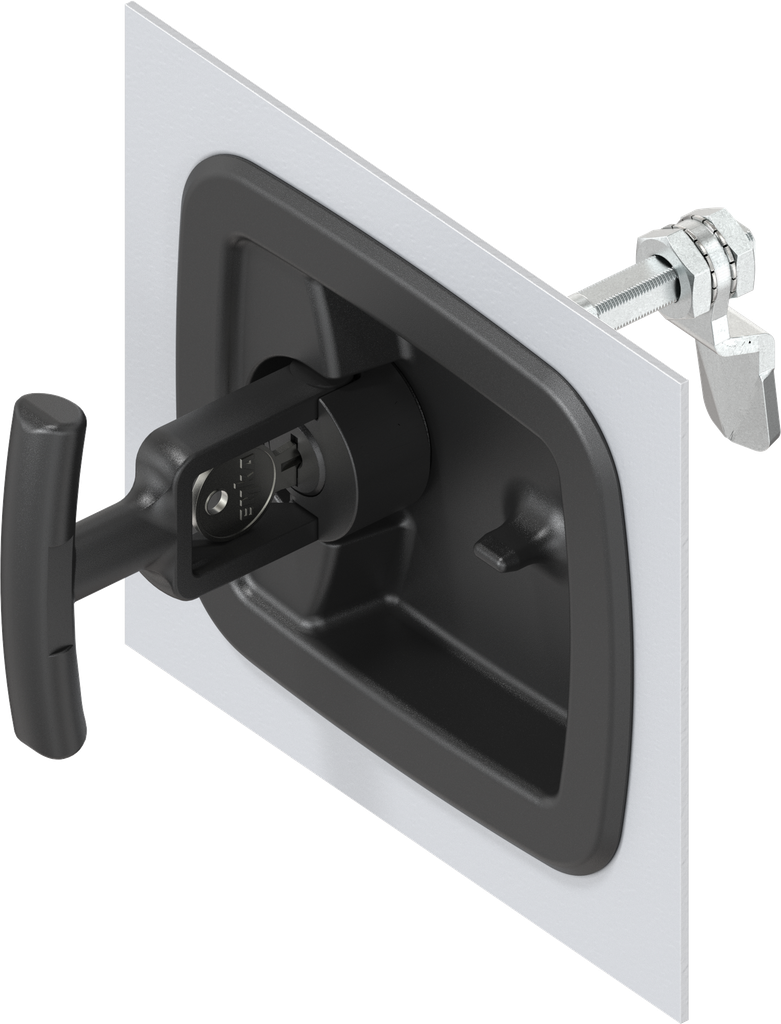

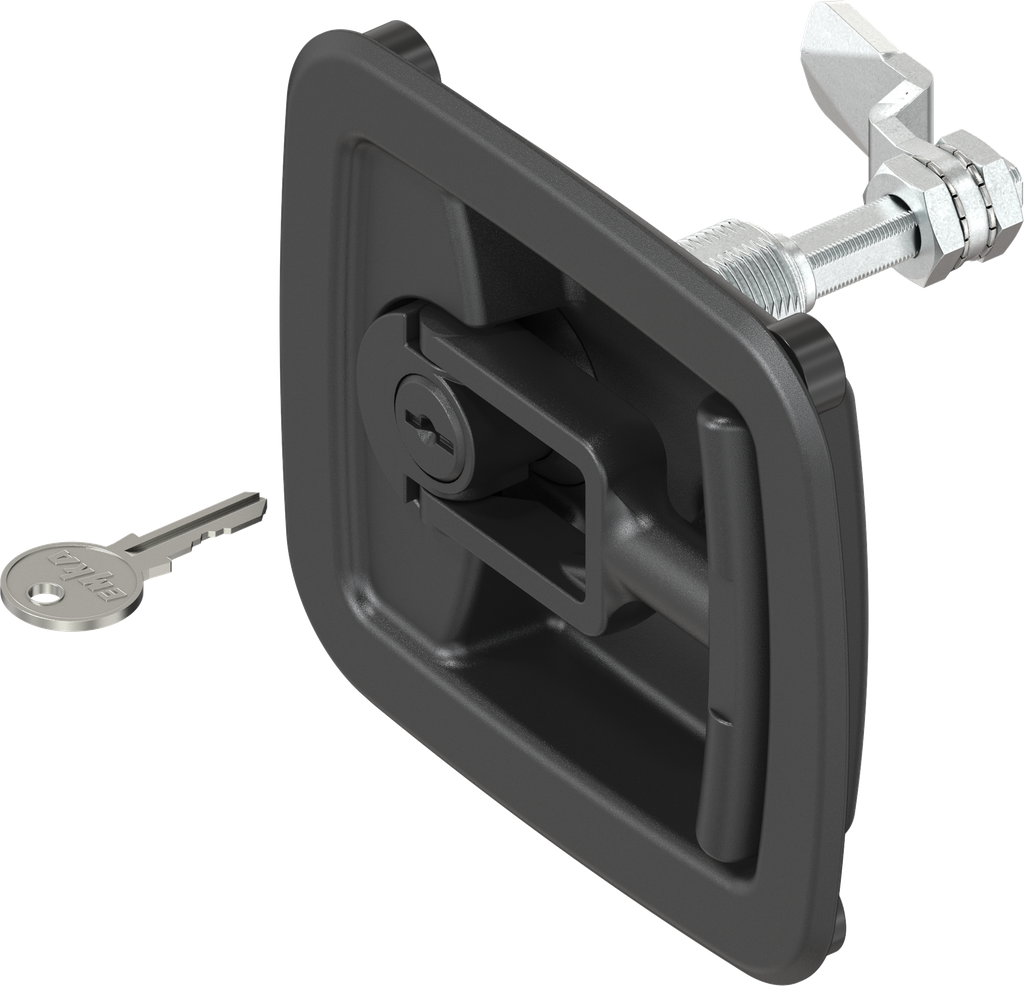

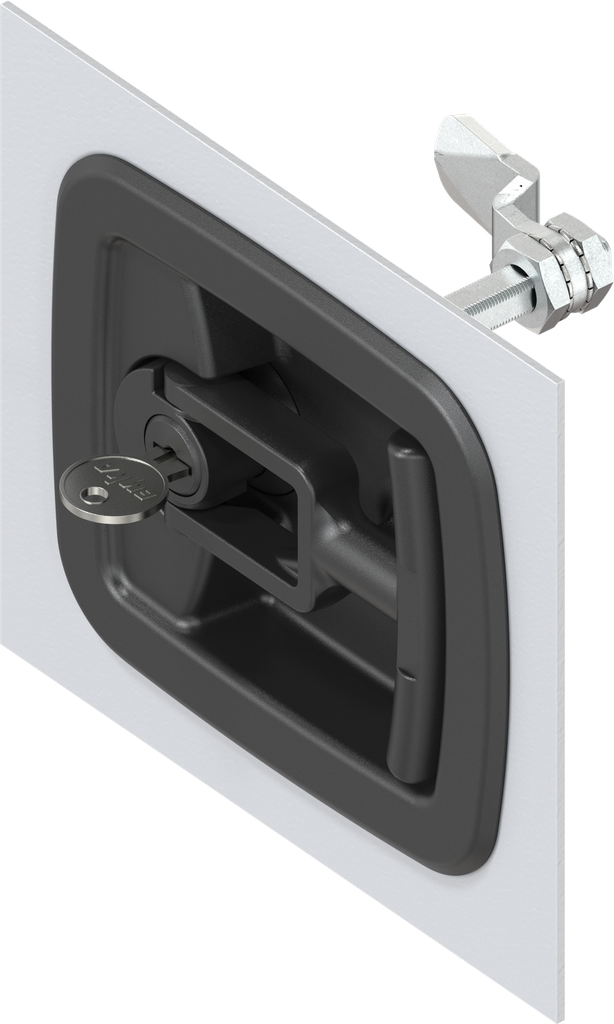

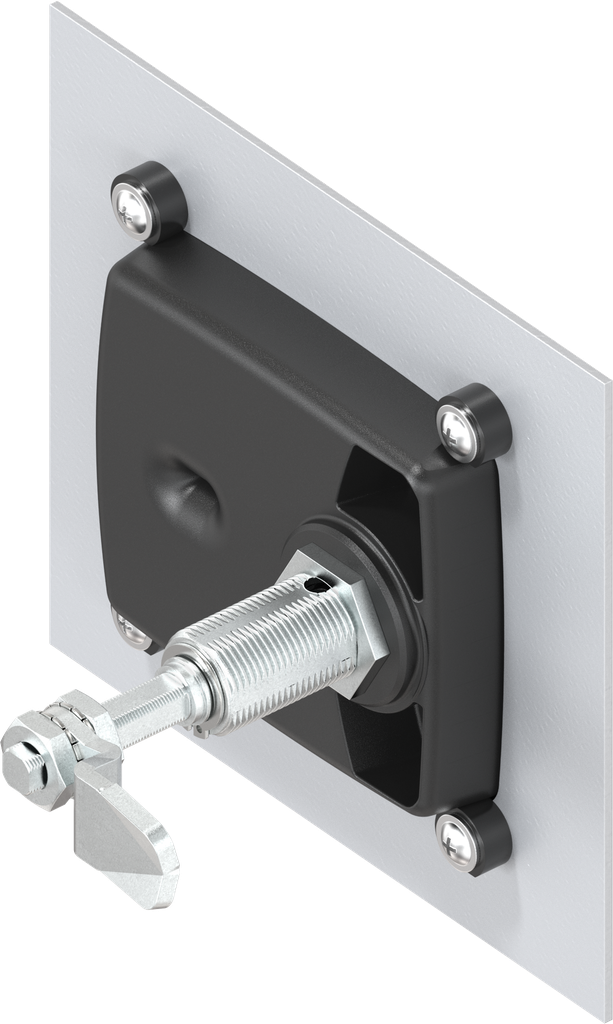

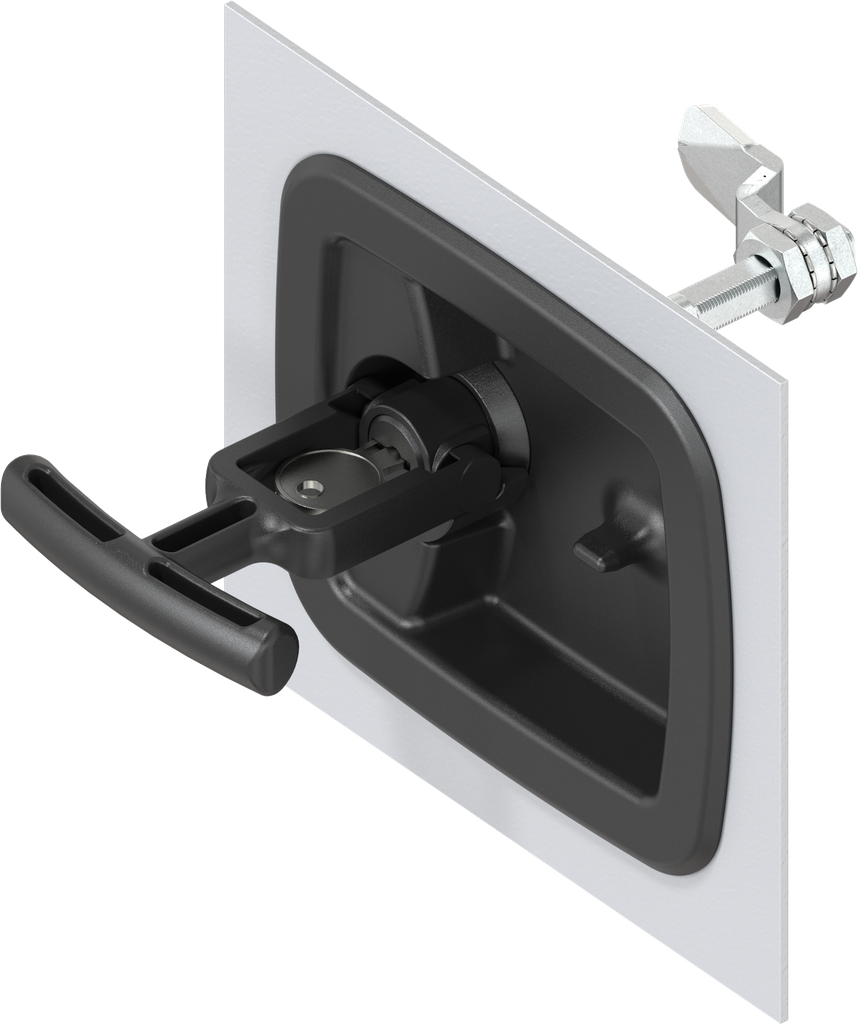

Chest handle with compression function keyed EK 333, Polyamide black and zinc die black powder-coated; 1130-U10
Internal Reference:
1130-U10
Barcode:
1130-U00010-0000000
Product Type:
Other latch
Program:
1130
Material of the module :
Polyamide black and zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point
Type of attachment to the frame:
screw-on
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Foamed gasket:
Yes
Compression Value :
4 mm
Suitable for door thickness from:
1 mm
Suitable for door thicknesses up to:
15 mm
Round Cylinder Type:
EMKA EK, keyed EK 333
Locking set:
Round cylinder
Cabinet type :
Single cabinets,In-line cabinets with single door,In-line cabinets with double door
Door position:
concealed
Door Version :
Left,Right
Lock Type:
Chest handle with compression function
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
