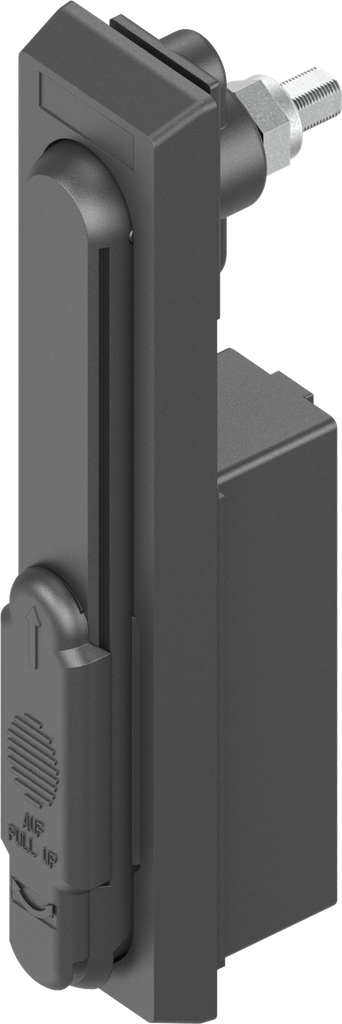

Double cylinder swinghandle with 1-key-operation, Polyamide GF black; 1125-U57-A

https://www.emka.com/products/1125-u57-a https://www.emka.com/web/image/product.template/64658/image_1920?unique=2c7c9a6


    This combination does not exist.

    Inside the sealing Foamed seal Protection class IP 65 Left Right


    Internal Reference: 1125-U57-A
    Product Type: Swinghandle, Lifthandle
    Program: 1125
    Catalog sheet: 3B-320
    Material of the module : Polyamide GF
    Surface of the module: black
    Door return variable: Yes
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Number of Locking: Two locking sets, 1-key-operation
    Article with property rights: Yes
    Attachment of the trough: Screw-on cap IP 65
    Mounting Positions : Inside the sealing
    Foamed gasket: Yes
    Handle Art(1): Swinghandle
    Without locking set: Profile half cylinder, blind plug without spring-loaded ball
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 10 mm
    Locking set: Profile half cylinder A = 30,Profile half cylinder A = 35
    locking set cover: Yes
    Key Removable: Key can be withdrawn in any handle position
    Swivel Handle: 21 mm
    Pan Handle Length: 210 mm
    Door Version : Left,Right
    Locking components: Cam
    No Specifications
    View All Products
    Cam
    Profile half cylinder
    Here you can find the product data sheets and CAD files of this product
