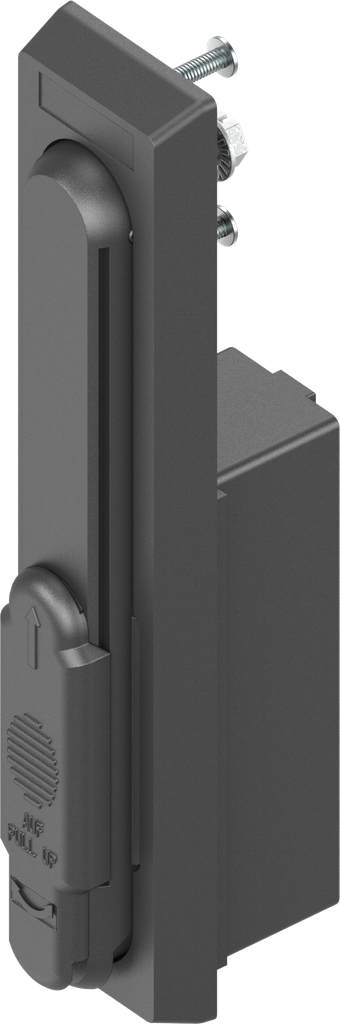

Double cylinder swinghandle with 1-key-operation, Polyamide GF black; 1125-U53-A

https://www.emka.com/products/1125-u53-a https://www.emka.com/web/image/product.template/349637/image_1920?unique=2c7c9a6


    This combination does not exist.

    Inside the sealing Grounding possible Foamed seal Protection class IP 65 Left Right


    Product information:

    1-Key-operation
    Handle can be opened when one of the two locking cylinders is unlocked.
    Removability of key depending on selected version.

    Internal Reference: 1125-U53-A
    Product Type: Swinghandle, Lifthandle
    Program: 1125
    Catalog sheet: 3B-320
    Material of the module : Polyamide GF
    Surface of the module: black
    Door return variable: Yes
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Number of Locking: Two locking sets, 1-key-operation
    Article with property rights: Yes
    Attachment of the trough: Screw-on cap IP 65
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes
    Handle Art(1): Swinghandle
    Without locking set: Profile half cylinder, blind plug without spring-loaded ball
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Locking set: Profile half cylinder A = 30,Profile half cylinder A = 35
    locking set cover: Yes
    Key Removable: Key can be withdrawn when the handle is put in
    Swivel Handle: 21 mm
    Pan Handle Length: 210 mm
    Door Version : Left,Right
    Locking components: Rod control,Bearing bush with cam
    No Specifications
    View All Products
    Profile half cylinder
    Rod control
    Bearing bush

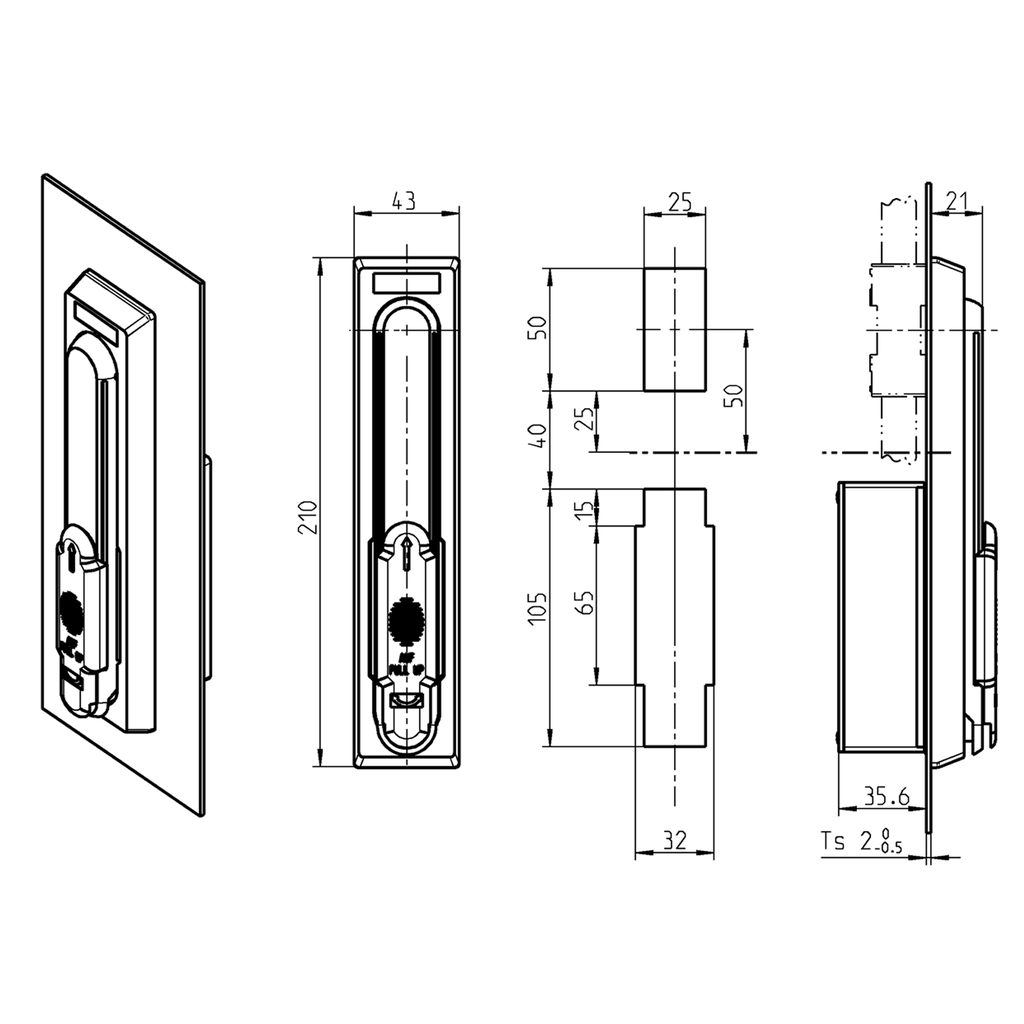

    Here you can find the product data sheets and CAD files of this product
