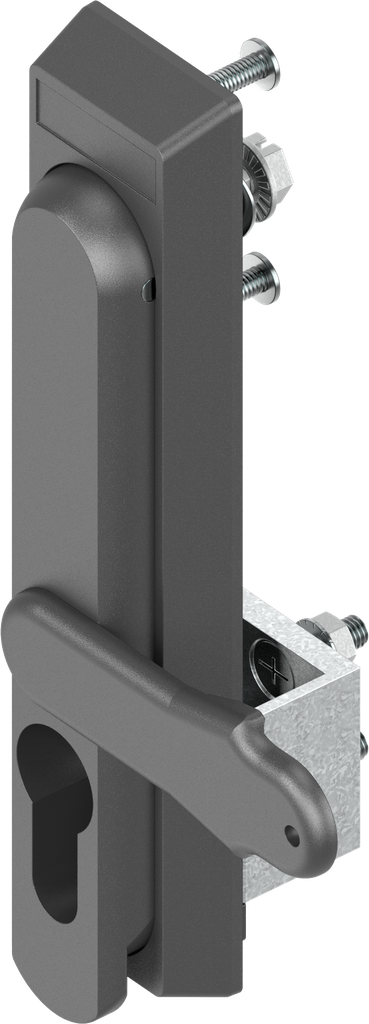

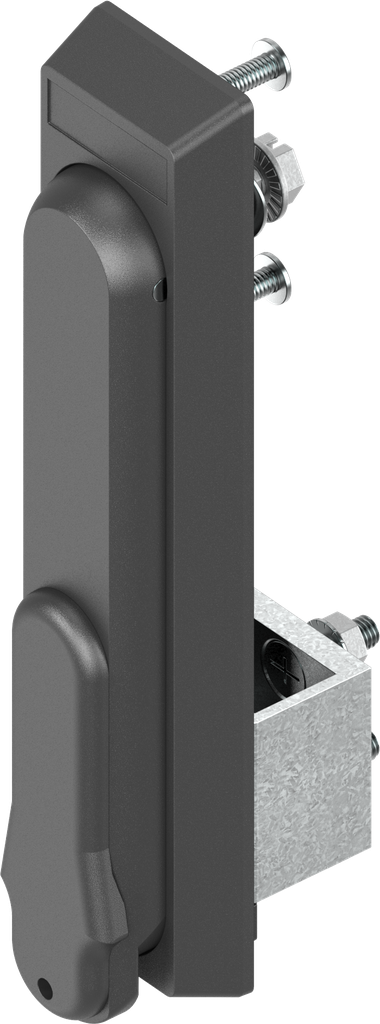

Swinghandle CNOMO for profile half cylinder 40 mm (A = 30 mm), Polyamide GF black; 1125-U201-A
No stock item, please ask for availability
Product information:
The handle is spring-loaded and therefore only snaps in when the door is completely closed.
The CNOMO swinghandle can only be used outside the gasket!
CNOMO standard type 1 is complied with by using snap-in cylinder triangular 6.5:
1109-U17-N

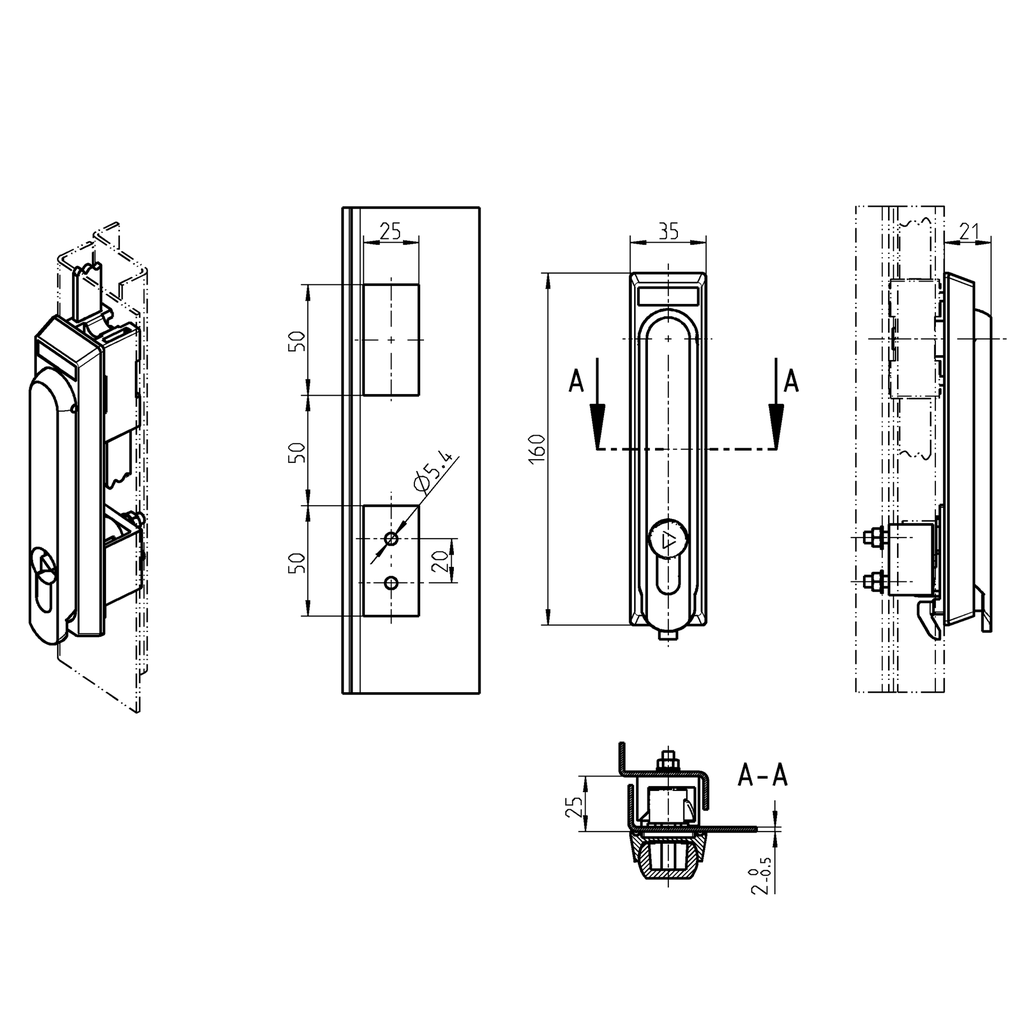

Assembly instruction:
Bore holes for catch symmetrical to swinghandle cut out
Internal Reference:
1125-U201-A
Standards:
Protection class IP 40, CNOMO standard (from France)
Barcode:
1125-U00201-000000A
Product Type:
Swinghandle, Lifthandle
Program:
1125
Catalog sheet:
3B-420
Material of the module :
Polyamide GF
Surface of the module:
black
Dimension A, Variable:
25 mm
Number of Possible Locking Points:
2 points, 4 point, More than 4 points available on request
Number of Locking:
One locking set
Attachment of the trough:
Hook IP 40
Mounting Positions :
Outside the sealing
Foamed gasket:
Yes
Handle Art(1):
Swinghandle
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
2 mm
Sealable:
Yes
Locking set:

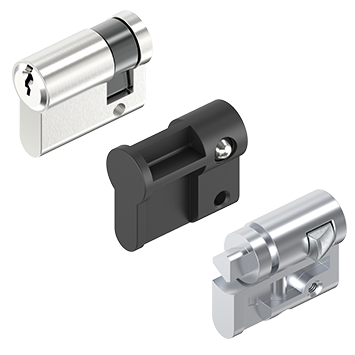

Profile half cylinder A = 30
locking set cover:
Yes
Key Removable:
Key can be withdrawn in any handle position
Swivel Handle:
21 mm
Pan Handle Length:
160 mm
Door Version :
Left,Right
Locking components:
Rod control
