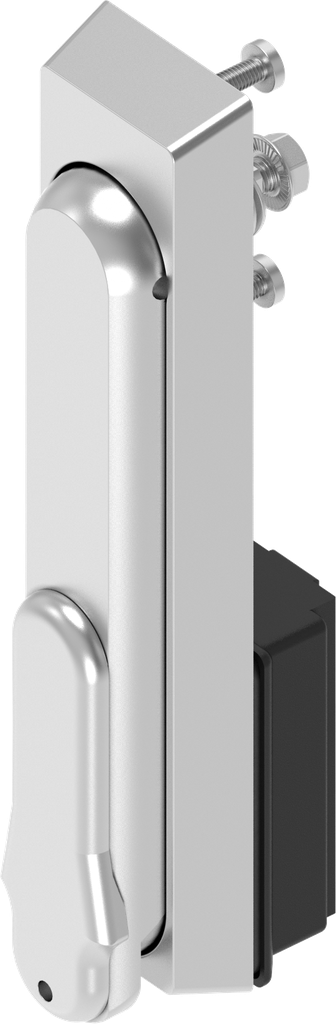

Swinghandle for profile half cylinder 40 mm (A = 30 mm), Stainless steel AISI 316; 1125-U191-APH

https://www.emka.com/products/1125-u191-aph https://www.emka.com/web/image/product.template/64667/image_1920?unique=8e60f53


    This combination does not exist.

    Inside the sealing Outside the sealing Grounding possible Foamed seal Protection class IP 66 Left Right


    Internal Reference: 1125-U191-APH
    Product Type: Swinghandle, Lifthandle
    Program: 1125
    Catalog sheet: 3B-220
    Material of the module : Stainless steel AISI 316
    Dimension A, Variable: 25 mm
    Door return variable: Yes
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, More than 4 points available on request
    Number of Locking: One locking set
    Attachment of the trough: Screw-on cap IP 66
    Mounting Positions : Inside the sealing,Outside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes
    Handle Art(1): Swinghandle
    Cloak: Yes
    Without locking set: Profile half cylinder, blind plug without spring-loaded ball,Profily half cylinder blind plug with spring-loaded ball
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Sealable: Yes
    Locking set: Profile half cylinder A = 30
    locking set cover: Yes
    Key Removable: Key can be withdrawn in any handle position
    Swivel Handle: 21 mm
    Pan Handle Length: 160 mm
    Door revolvable / reversible: Yes
    Door Version : Left,Right
    Locking components: Rod control,Bearing bush with cam
