Round rod L = 701 - 800 mm, Steel zinc-plated
Round rod L = 701 - 800 mm, Steel zinc-plated
Adapter for cams, Zinc die and steel zinc-plated yellow
Adapter for cams, Zinc die and steel zinc-plated yellow

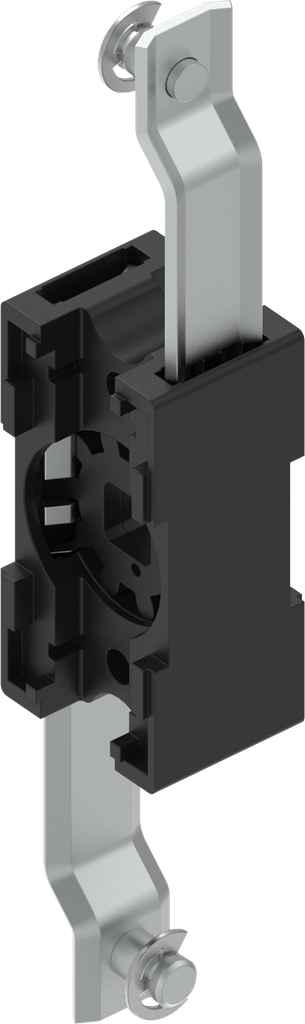

Rod control for flat rods or round rods, Polyamide black and aluminium; 1121-U37-C

https://www.emka.com/products/1121-u37-c-rod-control-for-flat-rods-or-round-rods-polyamide-black-and-aluminium-224369 https://www.emka.com/web/image/product.template/224369/image_1920?unique=2f364ab

    This combination does not exist.

    Inside the sealing Left Right

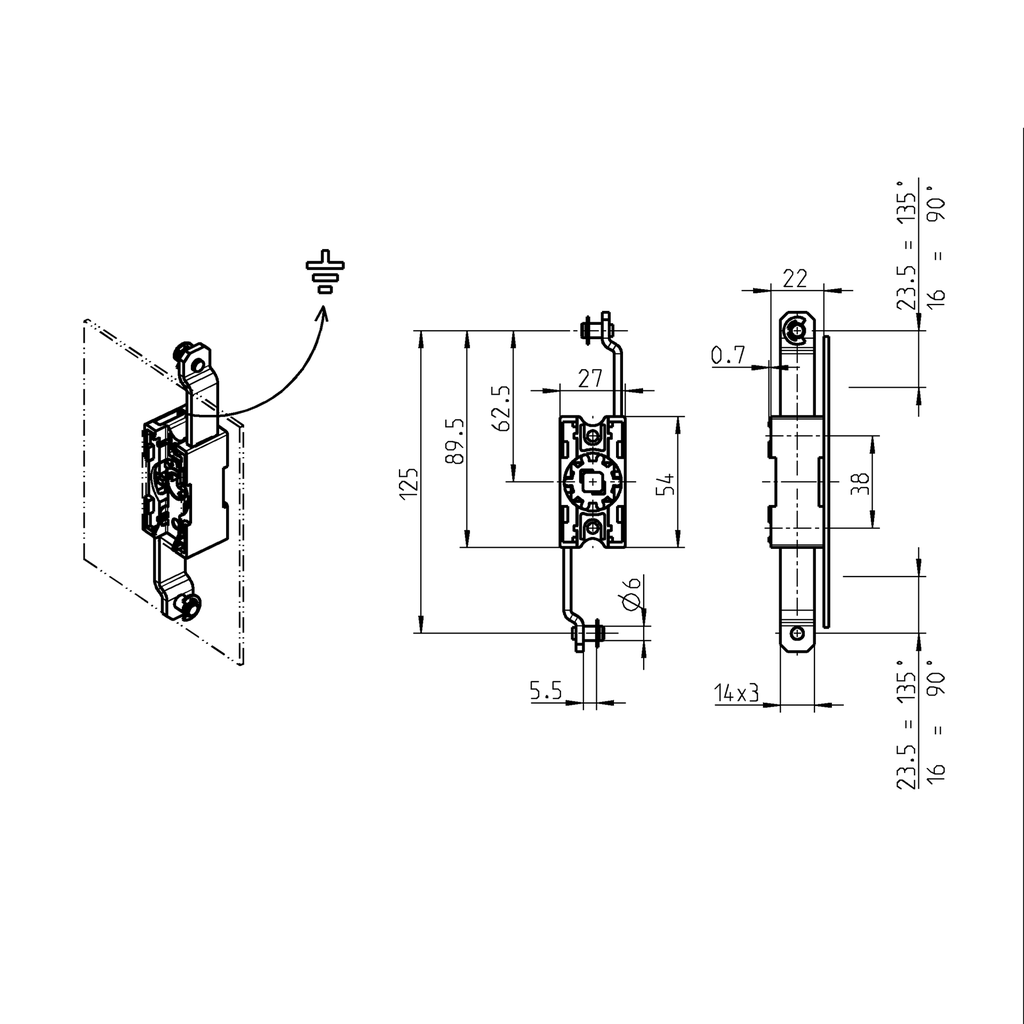

    Function:

    Turn 135° = Stroke 23.5 mm
    Turn 90° = Stroke 16 mm
    Internal Reference: 1121-U37-C
    Barcode: 1121-U00037-000000C
    Product Type: Rod control
    Program: 1121
    Catalog sheet: 3YA-160
    Material of the module : Polyamide black and aluminium
    Rod: Flat rod,Round rod
    Connection rod mount: Rivet Ø 6 with circlip
    Article with property rights: Yes
    Mounting Positions : Inside the sealing
    Grounding device possible: Yes
    Door Version : Left,Right
    No Specifications
    View All Products
    Cam

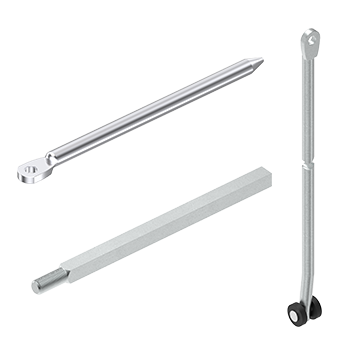

    Rod
    Rod control accessories

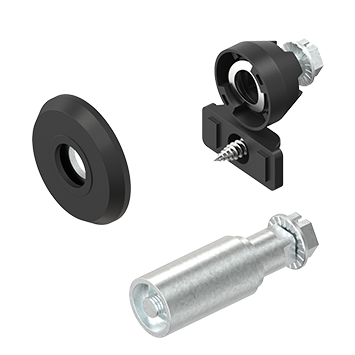

    Adapter

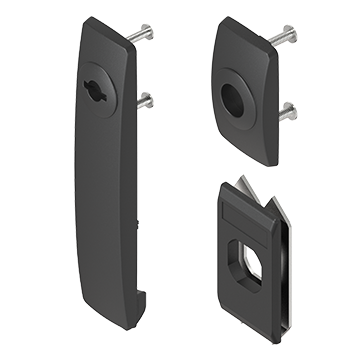

    Escutcheon
    Here you can find the product data sheets and CAD files of this product
