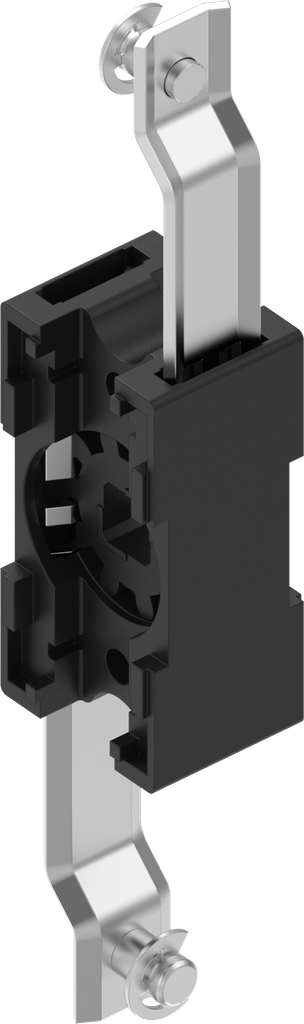

Rod control for flat rods or round rods, Steel and poylamide black; 1121-U177-C

https://www.emka.com/products/1121-u177-c https://www.emka.com/web/image/product.template/348580/image_1920?unique=0705b63

    This combination does not exist.

    Inside the sealing Left Right
    Contact Us

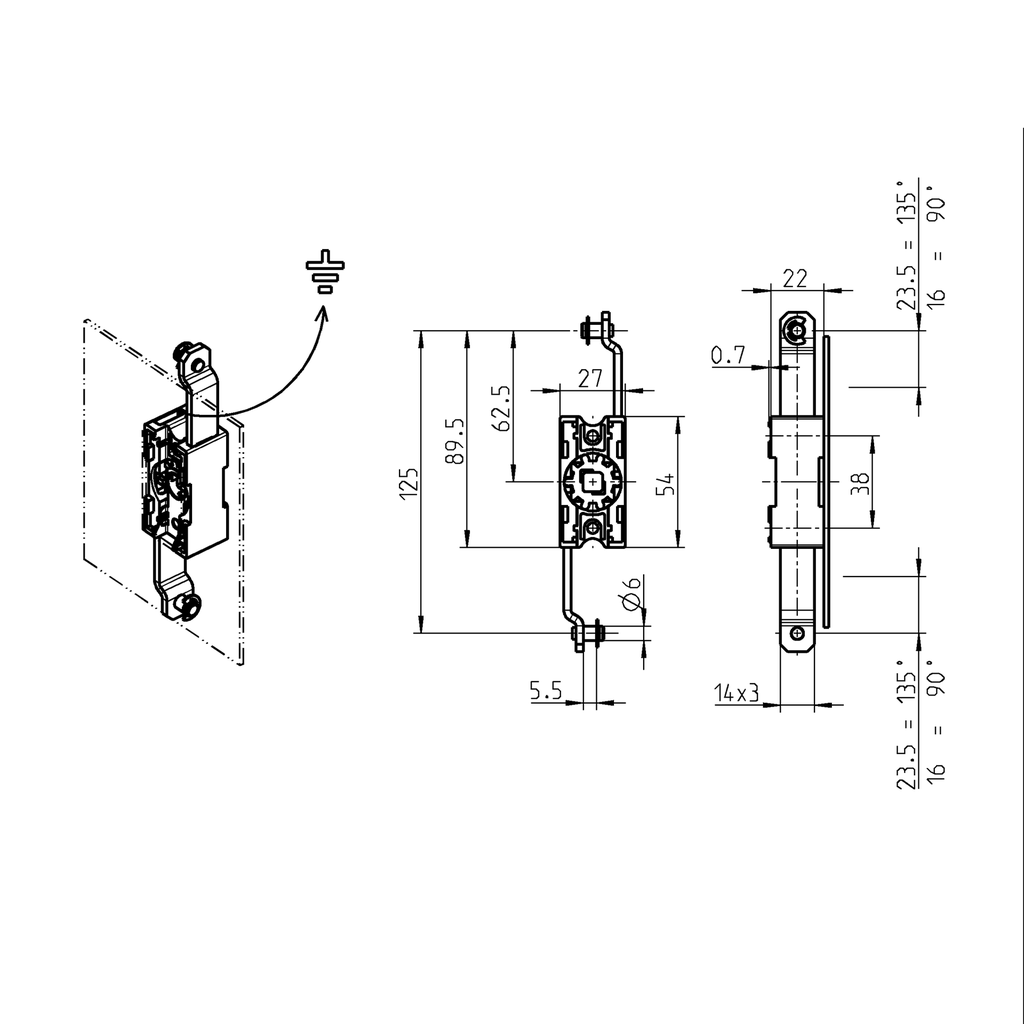

    Function:

    Turn 135° = Stroke 23.5 mm
    Turn 90° = Stroke 16 mm
    Internal Reference: 1121-U177-C
    Product Type: Rod control
    Program: 1121
    Catalog sheet: 3YA-160
    Material of the module : Steel and poylamide
    Surface of the module: black
    Rod: Flat rod,Round rod
    Connection rod mount: Rivet Ø 6 with circlip
    Article with property rights: Yes
    Mounting Positions : Inside the sealing
    Grounding device possible: Yes
    Door Version : Left,Right
    No Specifications
