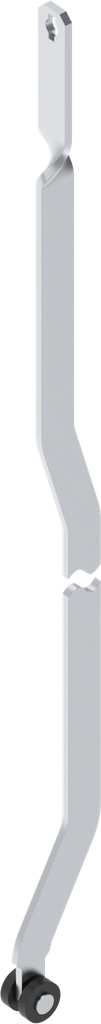

Flat rod L = 1101 - 1200 mm, Steel zinc-plated
Flat rod L = up to 500 mm, left version, Steel zinc-plated
Flat rod L = 1101 - 1200 mm, Steel zinc-plated; 1121-U145-08
No stock item, please ask for availability

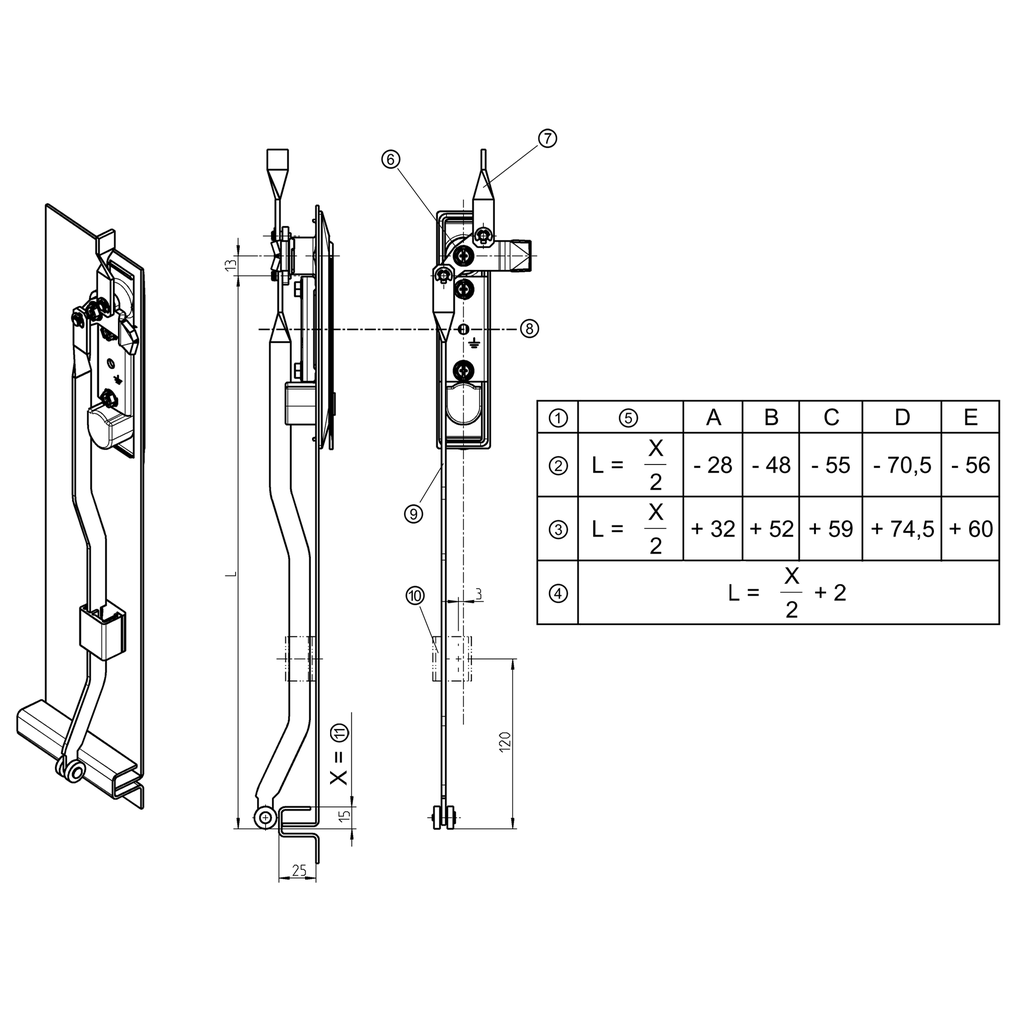

Product information:
① = Calculation of rod length L
② = Rod, top
③ = rod, bottom
④ = Centre of rotation at door centre, top and bottom same rod length
⑤ = Formula
⑥ = Centre of rotation
⑦ = Rod, top
⑧ = Door centre and clear height
⑨ = Rod, bottom

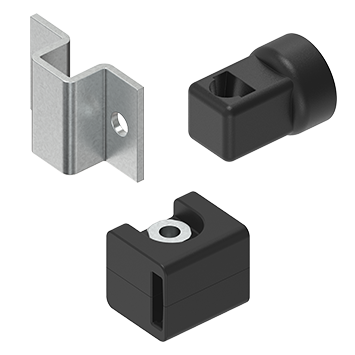

⑩ = Rod guide
⑪ = Clear height
A = Swinghandle program 1150 3C-120
B = Swinghandle program 1150 3C-120, Swinghandle program 1150 3C-140, Swinghandle program 1155 3C-620
C = Swinghandle program 1180 3E-320
D = Swinghandle program 1185 3E-520
E = Swinghandle program 2100 3H-320 and 3H-420
Ts = 2 mm, other door thicknesses on request
Order / Calculation example:
Order number for a flat rod with rollers and a length of 1034 mm = 1121-U145-L 1034
Internal Reference:
1121-U145-08
Barcode:
1121-U00145-0000008
Product Type:
Rod
Program:
1121
Material of the module :
Steel
Surface of the module:
zinc-plated
Connecting rod position:
Inside the sealing, top or bottom
Mounting Positions :
Inside the sealing
Flat Bar Inside:
Flat rod with roller for cam
Dimension L up to:
1200 mm
Dimension L from:
1101 mm
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
